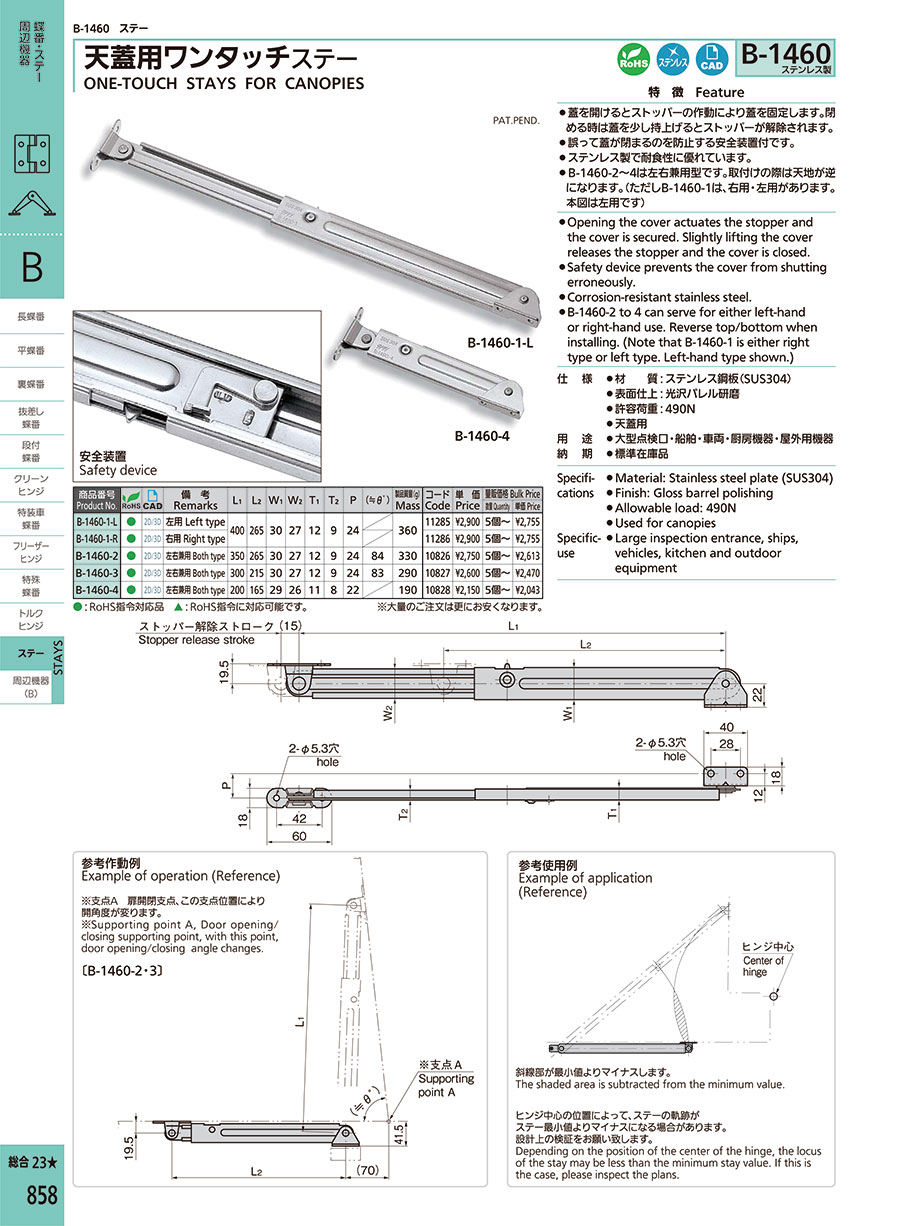

One-Touch Stay for Stainless Steel Canopies B-1460
- Promotional pricing ends 30/11/2024
- Volume Discount
[Features]
· When the lid is opened, the lid is fixed by the operation of the stopper.
· The stopper is released if the lid is lifted a little while closing.
· Equipped with a safety device to prevent the lid accidentally closing.
· Made of stainless steel, corrosion resistant.
· B-1460-2 to 4 are left and right dual use types.
· When installing, the upside and downside will be reversed. (However, model B-1460-1 has separate left and right versions. This figure shows left use).
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| B-1460-1-L |
| B-1460-1-R |
| B-1460-2 |
| B-1460-3 |
| B-1460-4 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Length L at Extention (mm) | Stroke S (mm) | For Right Side•For Left Side | Product Code | |
|---|---|---|---|---|---|---|---|---|---|
42.78 € | 1 | 6 Days | 10 | 400 | 135 | For Left Sides | 11285 | ||
43.85 € 30.70 € | 1 | Available |
Same day
Stock | 10 | 400 | 135 | For Right Side | 11286 | |
40.60 € | 1 | 6 Days | 10 | 350 | 85 | Shared with Left/Right | 10826 | ||
38.44 € | 1 | 6 Days | 10 | 300 | 85 | Shared with Left/Right | 10827 | ||
31.92 € | 1 | 6 Days | 10 | 200 | 35 | Shared with Left/Right | 10828 |
Loading...
Basic information
| Door Opening Manner | Canopy | Stay Type | Expansion and Contraction・Slide | Flexible, Slide Type | Slide Flat Square Bar |
|---|---|---|---|---|---|
| Stopper | Stop in full open state | Stopper Release | Cancellation Stroke | Body Material | Stainless Steel Plate (EN 1.4301 Equiv.) |
| Main Body Surface Treatment | Barrel Polishing | Allowable Load(N) | 490 |
