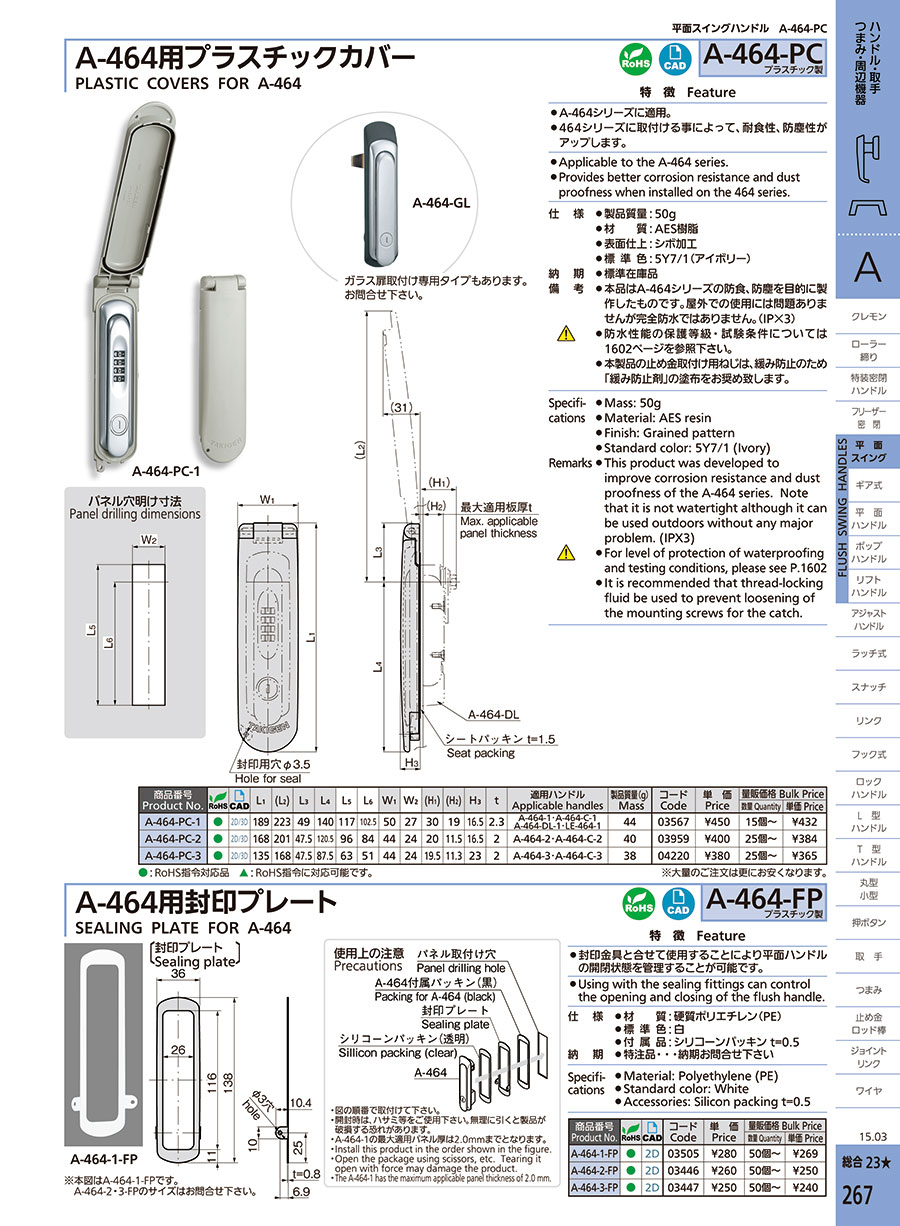

A-464-PC Plastic Cover for A-464
· Compatible with A-464 series.
· Install on 464 series to improve corrosion resistance and dust prevention (IP × 3)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| A-464-PC-1 |
| A-464-PC-2 |
| A-464-PC-3 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Type | Overall Length (mm) | Overall Width (mm) | Full height (mm) | Product Code | |
|---|---|---|---|---|---|---|---|---|---|
7.30 € | 1 | 10 Days | Cover (For A-464-1) | 189 | 50 | 16.5 | 03567 | ||
6.57 € | 1 | 10 Days | Cover (For A-464-2) | 168 | 44 | 16.5 | 03959 | ||
6.57 € | 1 | 10 Days | Cover (For A-464-3) | 135 | 44 | 23 | 04220 |
Loading...
Basic information
| Material | AES Resin | Finish | Grain Machining | Color | Ivory |
|---|
Configure
Basic Attributes
-
Type
- Cover (For A-464-3)
- Cover (For A-464-2)
- Cover (For A-464-1)
-
Overall Length(mm)
-
Overall Width(mm)
-
Full height(mm)
-
Type
- A
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 10 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
