Stainless Steel Ring Latch C-1044

Stainless Steel Ring Latch C-1044

TAKIGEN

TAKIGEN

[Features]
· Since the pull tab stops at 60°, it is ideal for large-sized doors with plurality of use.
· The strength of the latch can be adjusted with screws.
· Panel drilling is easy

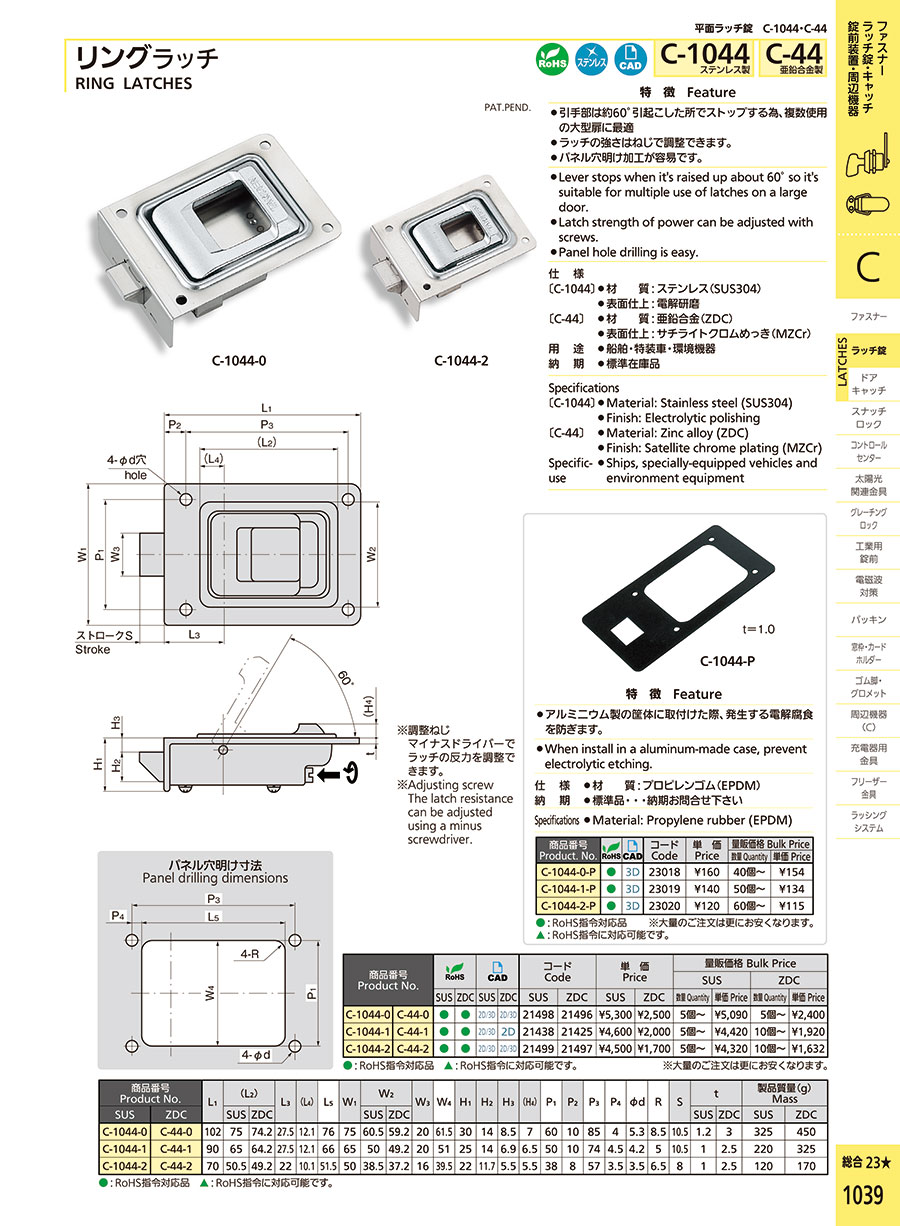

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
C-1044-0
C-1044-1
C-1044-2
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Main body length
(mm) 		Main Body Width
(mm) 		Depth
(mm) 		Product Code

105.06 €

1 10 Days 102753721498

90.57 €

1 6 Days 906531.521438

89.12 €

1 6 Days 705027.521499

Loading...

  1. 1

Basic information

Key No Key Material Stainless Steel Surface Finish Electrolytic Polishing
