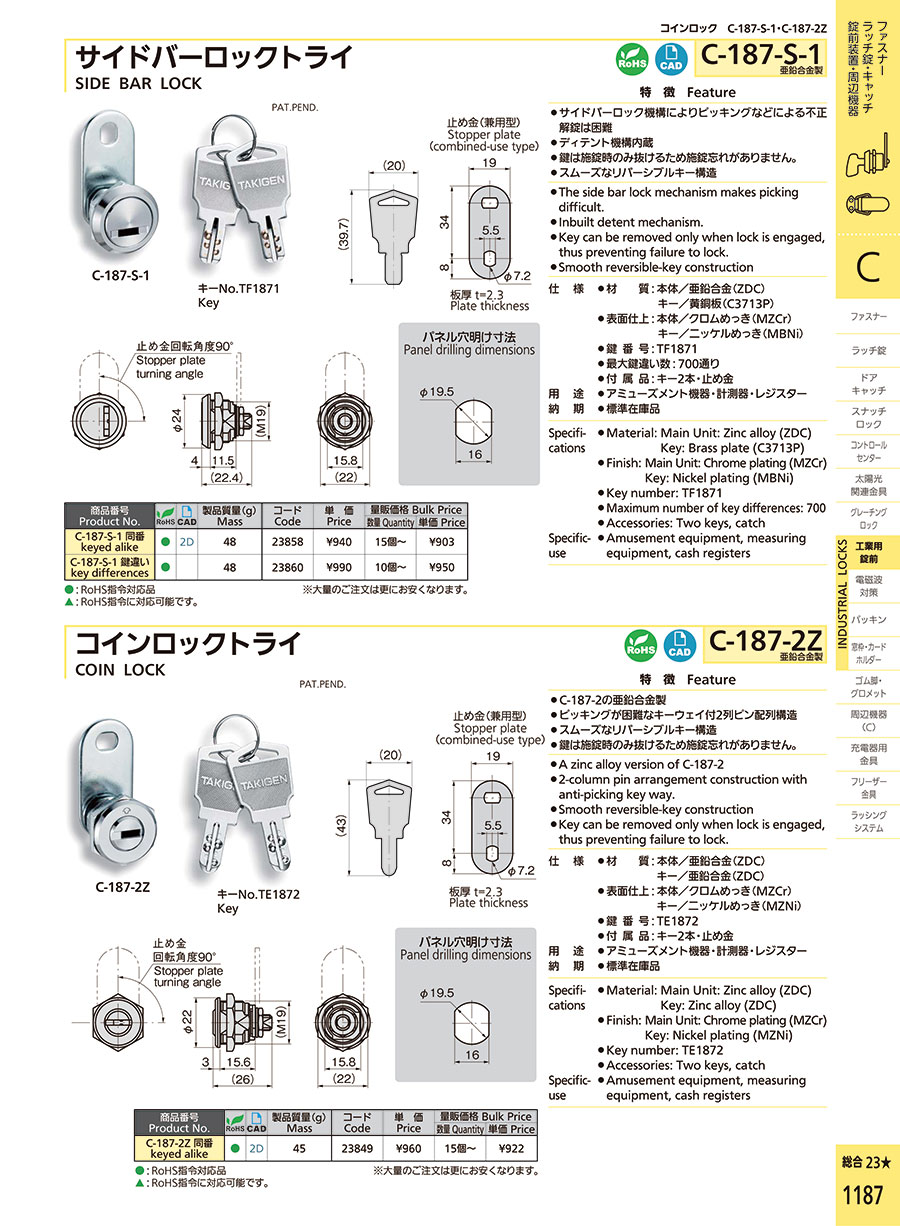

Sidebar Lock Tri C-187-S
[Features]
· The sidebar locking mechanism makes unlocking by picking, etc. difficult. The built-in detent mechanism key can only be removed when locked, so there is no forgetting to lock.
· Smooth reversible key structure
· The sidebar locking mechanism makes unlocking by picking, etc. difficult. The built-in detent mechanism key can only be removed when locked, so there is no forgetting to lock.
· Smooth reversible key structure
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
C-187-S-1ﾄﾞｳﾊﾞﾝ
Basic information
| Type | Lock(Embedded) | Key | Same Number | Main Body Overall Length(L(mm)) | 22.4 |
|---|---|---|---|---|---|
| Lock external diameter(mm) | 24 | Main Body Material | Zinc Alloy | Surface Finish | Chrome Plating |
| Key Material | Brass Plate | Key Surface Finish | Nickel plating | Number of key differences | 700 |
| Product Code | 23858 |
This page is Sidebar Lock Tri C-187-S, part number C-187-S-1ﾄﾞｳﾊﾞﾝ.
You can find the detail information about specifications and dimensions on part number C-187-S-1ﾄﾞｳﾊﾞﾝ.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
