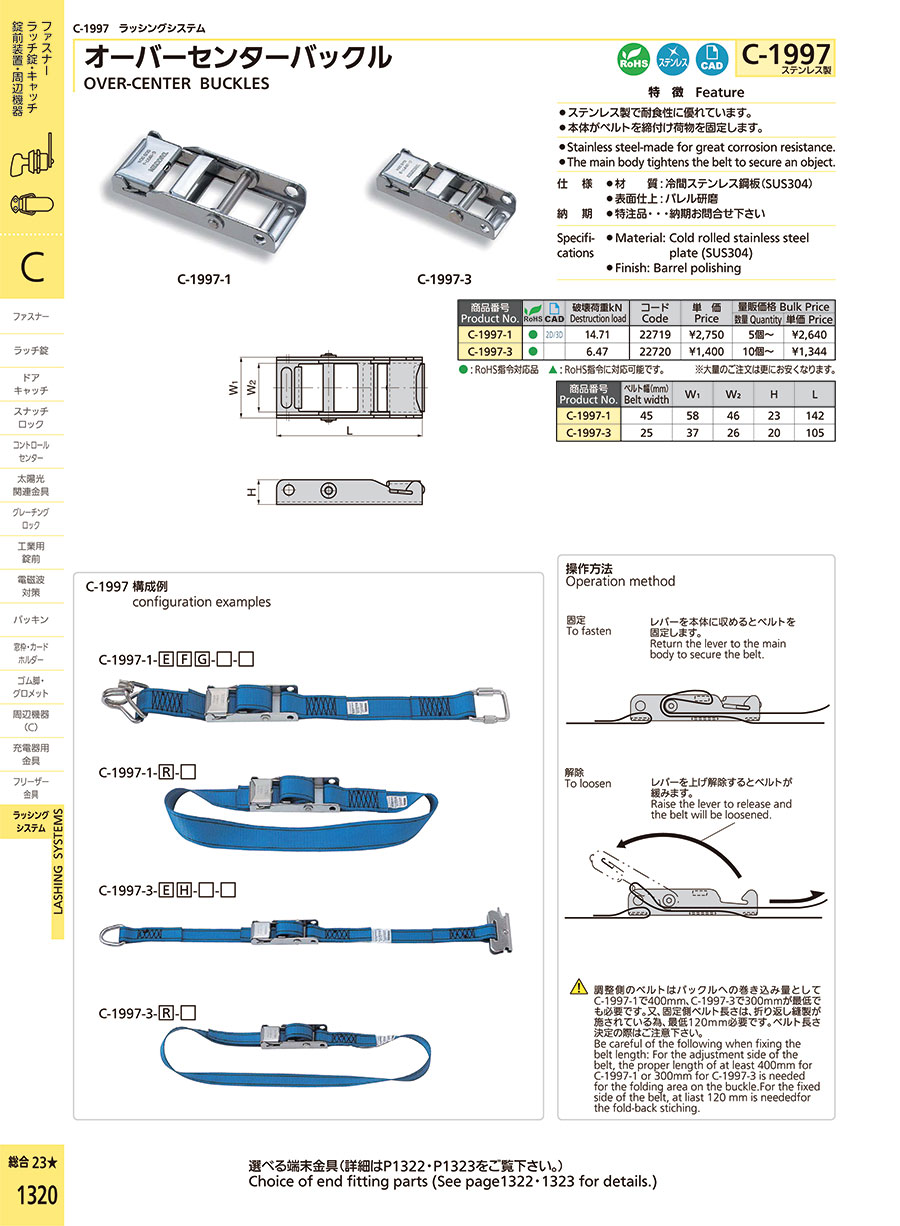

Stainless Steel Over-Center Buckle C-1997
· Stainless steel material offers superior corrosion resistance.
· The main body tightens the belt to secure an object
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| C-1997-1 |
| C-1997-3 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Breaking Load (KN) | Overall Length (mm) | Horizontal Width (mm) | Thickness (mm) | Compatible Plate Thickness (mm) | Product Code | |
|---|---|---|---|---|---|---|---|---|---|---|
40.60 € | 1 | 10 Days | 14.71 | 142 | 58 | 23 | Belt width: for 45 | 22719 | ||
21.06 € | 1 | 10 Days | 6.47 | 105 | 37 | 20 | Belt width: for 25 | 22720 |
Loading...
Basic information
| Material | Cold rolled stainless steel plate | Surface Finish | Barrel Polishing |
|---|
Configure
Basic Attributes
-
Breaking Load(KN)
- 6.47
- 14.71
-
Overall Length(mm)
-
Horizontal Width(mm)
-
Thickness(mm)
-
Compatible Plate Thickness(mm)
- Belt width: for 25
- Belt width: for 45
-
Type
- C
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 10 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
