Quick Coupling, AT TYPE, Socket SA・SB, Steel Sleeve
- Promotional pricing

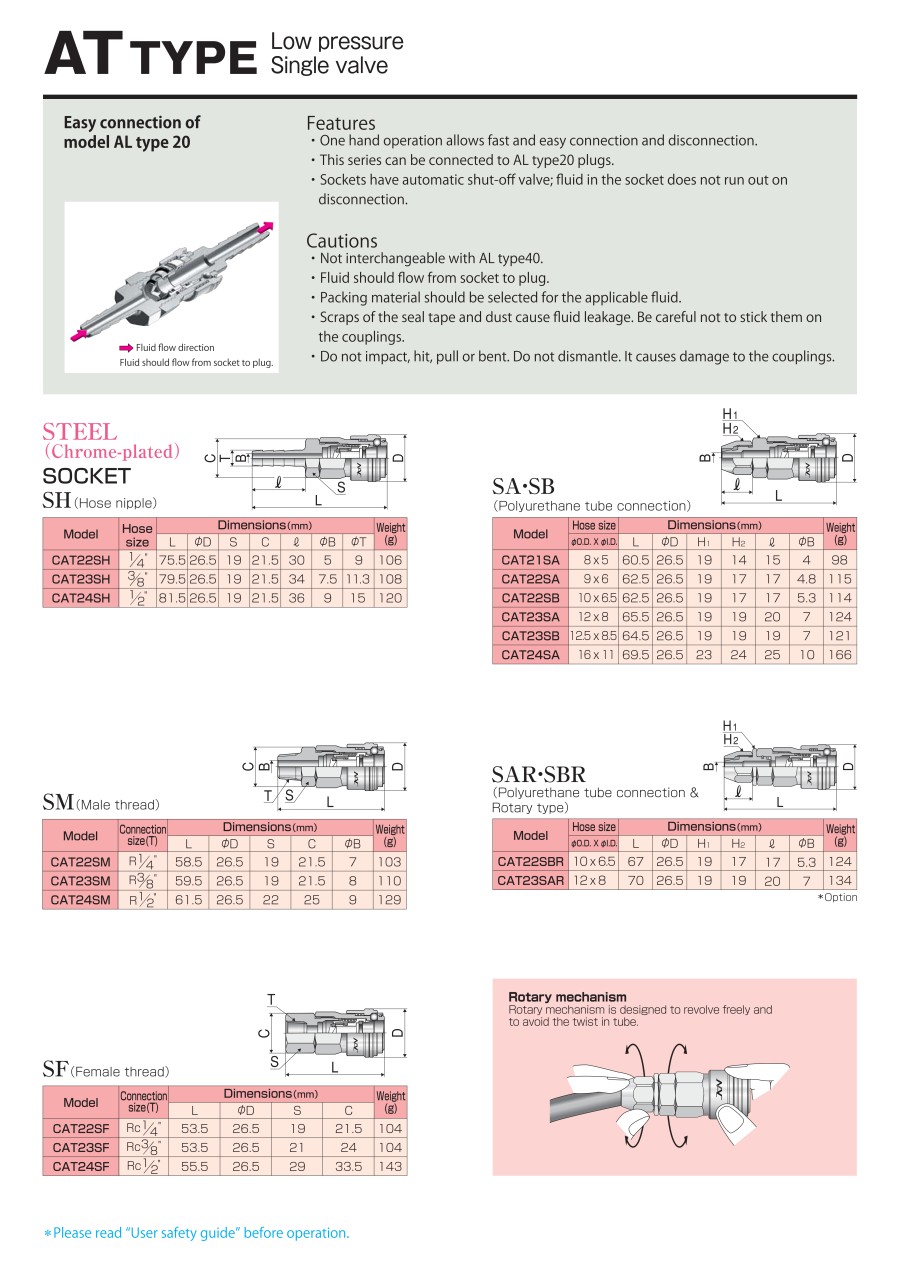

ATTYPE steel (chrome-plated) SA/SB (for polyurethane tubes).
[Features]
· Single-touch connection coupling via simple plug insertion.
· Plug can be connected with all AL Type 20 models.
·, Automatically opens and closes a valve via attachment / removal of the built-in valve from the socket side.
[Features]
· Single-touch connection coupling via simple plug insertion.
· Plug can be connected with all AL Type 20 models.
·, Automatically opens and closes a valve via attachment / removal of the built-in valve from the socket side.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Loading...
Basic information
| Type | Standard | Mount Type | For Polyurethane Tubes | Male/Female | Socket |
|---|---|---|---|---|---|
| Main Body Material | Steel (chrome plating) | Seal Material | Nitrile Rubber (NBR) | Applicable Fluid | Air |
| Valve Structure | Single Passage Opening Closing Type | Usage Environment/Application | Standard / Industrial Machinery | Operating Temperature Range(℃) | -20::+80 |
| Max Operating Pressure(MPa) | 0::1.0 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
