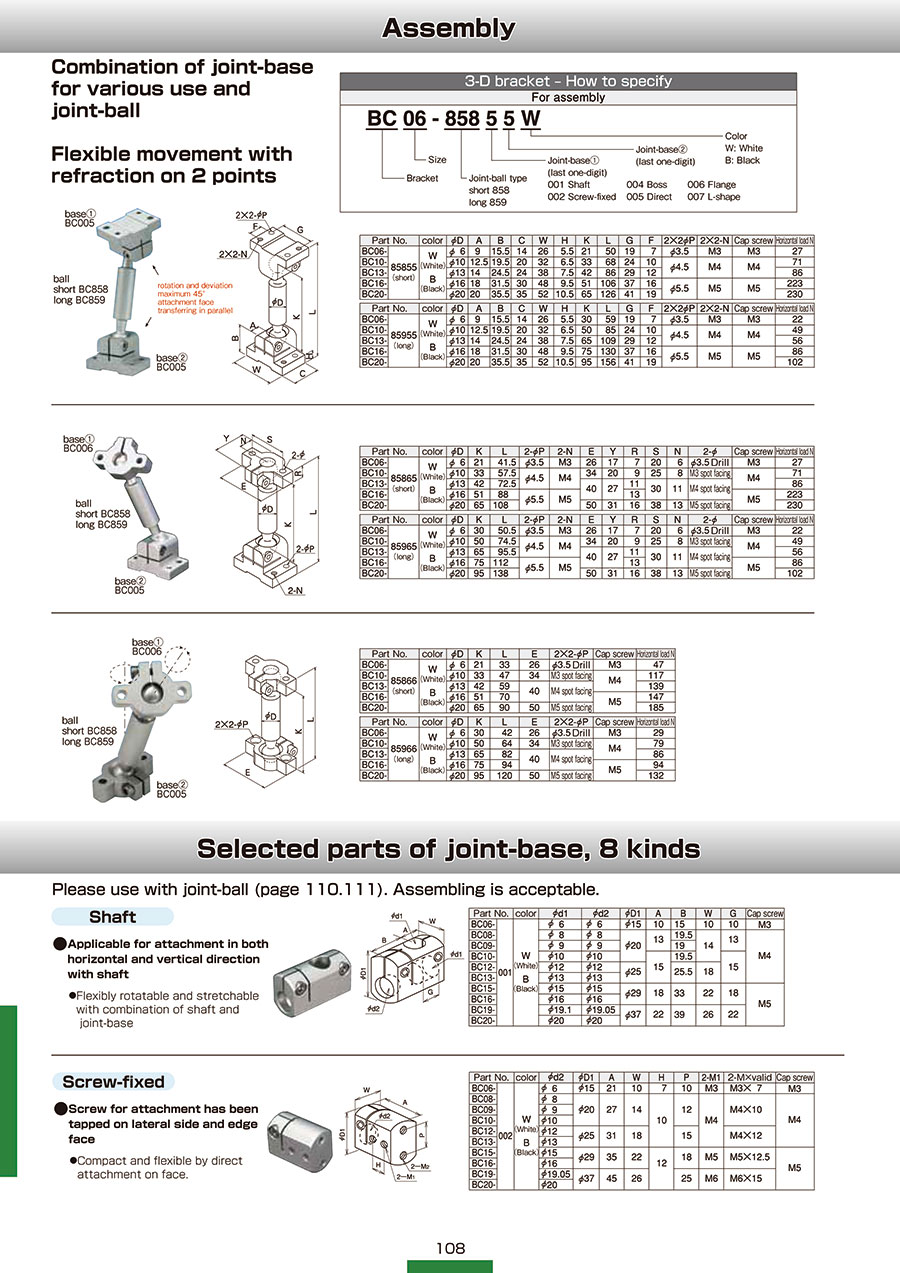

3D Bracket Combination Product, 65 Type
A free-use type that is refracted at two locations.
[Features]
· A combination of joint bases and joint balls that are used for large numbers of applications.
· A free-use type that is refracted at two locations
[Features]
· A combination of joint bases and joint balls that are used for large numbers of applications.
· A free-use type that is refracted at two locations
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| BC13-85865-B |
| BC16-85865-B |
| BC20-85865-B |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Load Capacity (N) | Length (mm) | Load Resistance (N) | |
|---|---|---|---|---|---|---|---|
89.95 € | 1 | 14 Days | 86 | 72.5 | 86 | ||
101.81 € | 1 | 13 Days | 223 | 88 | 223 | ||
118.99 € | 1 | 14 Days | 230 | 108 | 230 |
Loading...
Basic information
| Type | Set | Shape | Double Type | Collar | Black |
|---|---|---|---|---|---|
| Material | EN AW-2017 Equiv. | Joint Ball Shape | Short |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
