MIYOSHI PIJON

Free Angle / Adjuster Fixing Base, II Type

Free Angle / Adjuster Fixing Base, II Type

Part number:

Still undefined. 2 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    FBC312-2
    FBC316-2

    Load Capacity

    (N)

    Length

    (mm)

    G

    (mm)

    Ball φ

    (mm)

    		Minimum order quantity
    21.2(250mm)/10.6(500mm)
    83
    50
    φ16
    1 pieces
    34.1(250mm)/18.2(500mm)
    98
    55
    φ20
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    82.29 €
    ( 97.93 € )
    6 working days
    108.67 €
    ( 129.32 € )
    14 working days
  • 1

    • More Information

    Basic information

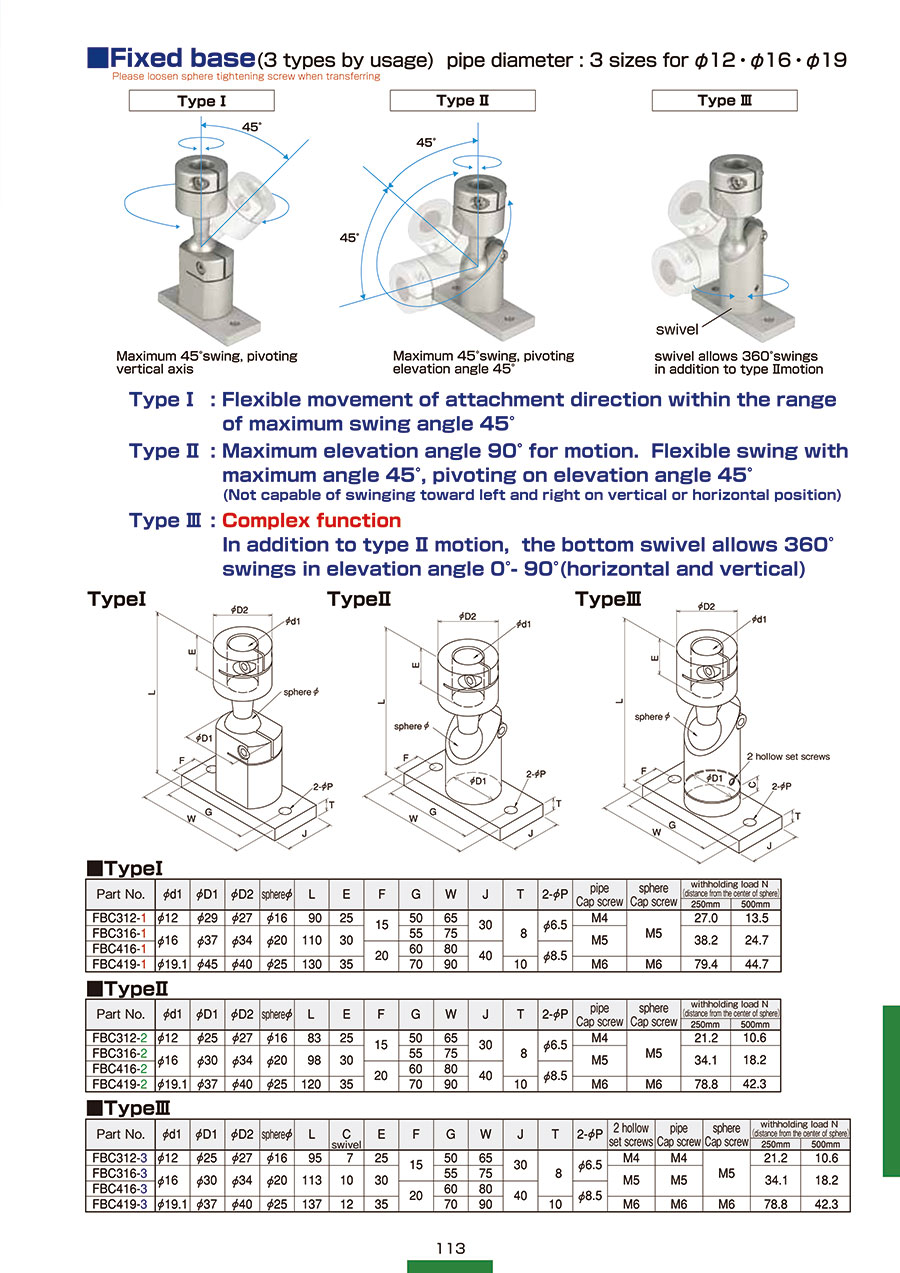

    A flexible arm that can fix the equipment in any angle and direction.

    [Features]
    · The arm can be rotated, extended, and tilted.
    · Strong mounting, both end fixing.
    · Features a maximum elevation angle of 90° (variable). Using the elevation angle of 45° as a fulcrum enables the free movement within a maximum oscillating angle range of 45° (cannot oscillate left or right when placed horizontally or vertically). .
