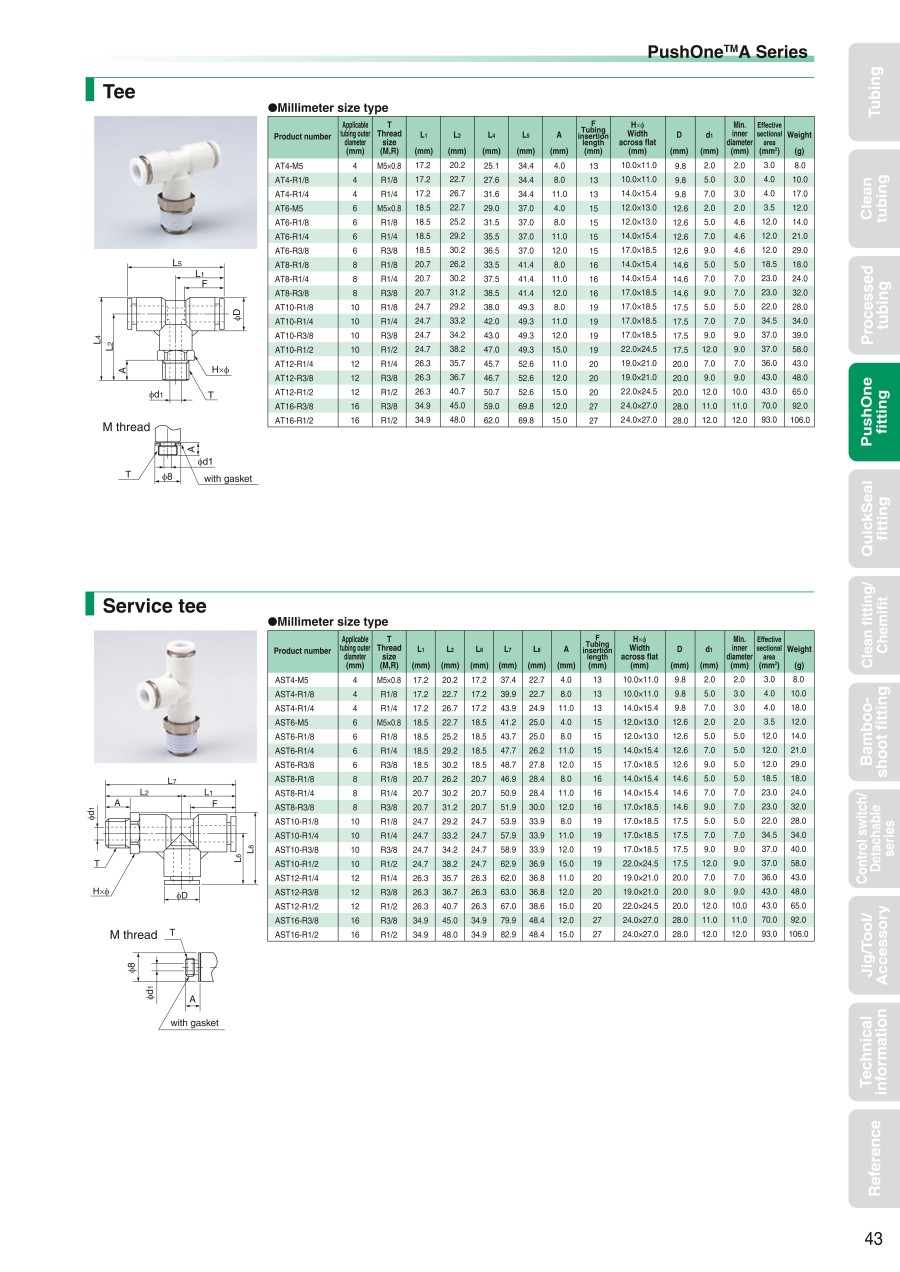

Push One A Series Service Tee
No jigs or tools are required for connecting tubes to this service tee. The surface is resistant to degradation, preventing elution of copper ions.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
AST6-R3/8
Basic information
| Type | Push One Fitting | Fitting Type | Screw Mount Branch | Applicable Fluid | Water / Air |
|---|---|---|---|---|---|
| Main Body Material | Flame Retardant PBT Resin | Application | For general air pressure | Thread Material | Brass |
| Seal Material | Special NBR | Screw Mounting, Branch | Service Tee | Compatible Tube Outer Diameter 1(mm) | 6 |
| T Screw Size | 3/8 | Types of connection screw | R | Appearance Color | White |
| Operating Temperature Range (Air During use)(°C) | -20 – 80 | Operating Temperature Range (Water During use)(°C) | 0–40 | Plating Process | Electroless Nickel Plating |
This page is Push One A Series Service Tee, part number AST6-R3/8.
You can find the detail information about specifications and dimensions on part number AST6-R3/8.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
