Configure

Stock
Show stock items only

Max. Load (Secified Range)(N)

Customer-Specified Length(mm)

Outer Diameter(mm)

Coil I.D. ID(mm)

2
2.6
4
5.4
6.5
8
9.3
10.7
12
13.5
14.7
17

Spring Constant(N/mm)

1.12
1.4
1.64
1.86
1.97
2.46
2.79
3.15
3.28
3.68
4.42
4.91
4.92
5.52
5.61
6.13
6.54
6.81
7.35
7.36
7.67
7.85
8.02
8.58
8.76
8.83
9.24
9.81
10.01
10.22
10.46
10.92
11.03
11.21
12.02
12.07
12.26
12.27
12.41
12.61
13.08
13.24
13.35
13.62
14.18
14.27
14.71
14.83
15.02
15.28
15.32
15.69
16.34
16.48
16.55
17.17
17.44
17.51
17.65
18.05
18.54
18.86
19.17
19.61
19.78
19.86
20.03
20.43
21.19
21.3
22.06
22.29
22.42
22.82
23.96
24.03
24.52
24.72
24.82
25.56
26.15
26.97
27.24
27.38
28.37
29.49
29.67
30.65
31.38
31.94
32.96
33.1
34.85
35.02
37.08
38.33
39.72
40.86
42.38
42.59
47.92
49.03
49.44
54.76
59.33
63.89
76.67

Type

Est. shipping days

All
Same-day shipping possible
Within 6 working days
Within 8 working days

TOKYO HATSUJYO MANUFACTURING

Round-Wire Coil Spring LR

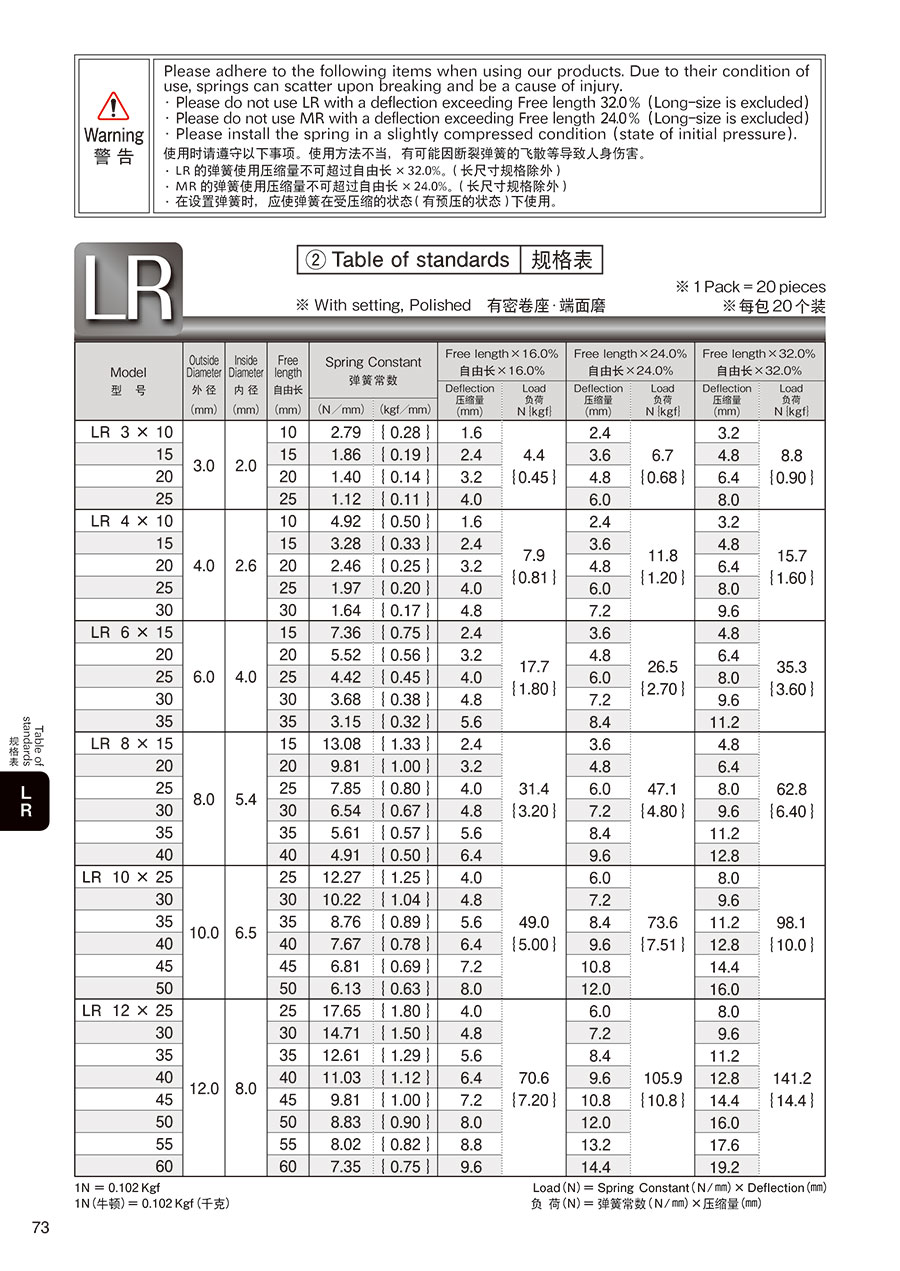

Catalog

Part number:

Still undefined. 111 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Max. Load (Secified Range)

(N)

Customer-Specified Length

(mm)

Outer Diameter

(mm)

Coil I.D. ID

(mm)

Spring Constant

(N/mm)

RoHS?

Minimum order quantity

8.51 to 16.00	10	3	2	2.79	10	20 pieces
8.51 to 16.00	15	3	2	1.86	10	20 pieces
8.51 to 16.00	20	3	2	1.4	10	20 pieces
8.51 to 16.00	25	3	2	1.12	10	20 pieces
8.51 to 16.00	10	4	2.6	4.92	10	20 pieces
8.51 to 16.00	15	4	2.6	3.28	10	20 pieces
8.51 to 16.00	20	4	2.6	2.46	10	20 pieces
8.51 to 16.00	25	4	2.6	1.97	10	20 pieces
8.51 to 16.00	30	4	2.6	1.64	10	20 pieces
30.01 to 50.00	15	6	4	7.36	10	20 pieces
30.01 to 50.00	20	6	4	5.52	10	20 pieces
30.01 to 50.00	25	6	4	4.42	10	20 pieces
30.01 to 50.00	30	6	4	3.68	10	20 pieces
30.01 to 50.00	35	6	4	3.15	10	20 pieces
50.01 to 73.00	15	8	5.4	13.08	10	20 pieces
50.01 to 73.00	20	8	5.4	9.81	10	20 pieces
50.01 to 73.00	25	8	5.4	7.85	10	20 pieces
50.01 to 73.00	30	8	5.4	6.54	10	20 pieces
50.01 to 73.00	35	8	5.4	5.61	10	20 pieces
50.01 to 73.00	40	8	5.4	4.91	10	20 pieces
73.01 to 107.00	25	10	6.5	12.27	10	20 pieces
73.01 to 107.00	30	10	6.5	10.22	10	20 pieces
73.01 to 107.00	35	10	6.5	8.76	10	20 pieces
73.01 to 107.00	40	10	6.5	7.67	10	20 pieces
73.01 to 107.00	45	10	6.5	6.81	10	20 pieces
73.01 to 107.00	50	10	6.5	6.13	10	20 pieces
107.01 to 150.00	25	12	8	17.65	10	20 pieces
107.01 to 150.00	30	12	8	14.71	10	20 pieces
107.01 to 150.00	35	12	8	12.61	10	20 pieces
107.01 to 150.00	40	12	8	11.03	10	20 pieces
107.01 to 150.00	45	12	8	9.81	10	20 pieces
107.01 to 150.00	50	12	8	8.83	10	20 pieces
107.01 to 150.00	55	12	8	8.02	10	20 pieces
107.01 to 150.00	60	12	8	7.35	10	20 pieces
150.01 to 230.00	25	14	9.3	24.03	10	20 pieces
150.01 to 230.00	30	14	9.3	20.03	10	20 pieces
150.01 to 230.00	35	14	9.3	17.17	10	20 pieces
150.01 to 230.00	40	14	9.3	15.02	10	20 pieces
150.01 to 230.00	45	14	9.3	13.35	10	20 pieces
150.01 to 230.00	50	14	9.3	12.02	10	20 pieces
150.01 to 230.00	55	14	9.3	10.92	10	20 pieces
150.01 to 230.00	60	14	9.3	10.01	10	20 pieces
150.01 to 230.00	65	14	9.3	9.24	10	20 pieces
150.01 to 230.00	70	14	9.3	8.58	10	20 pieces
230.01 to 580.00	25	16	10.7	31.38	10	20 pieces
230.01 to 580.00	30	16	10.7	26.15	10	20 pieces
230.01 to 580.00	35	16	10.7	22.42	10	20 pieces
230.01 to 580.00	40	16	10.7	19.61	10	20 pieces
230.01 to 580.00	45	16	10.7	17.44	10	20 pieces
230.01 to 580.00	50	16	10.7	15.69	10	20 pieces
230.01 to 580.00	55	16	10.7	14.27	10	20 pieces
230.01 to 580.00	60	16	10.7	13.08	10	20 pieces
230.01 to 580.00	65	16	10.7	12.07	10	20 pieces
230.01 to 580.00	70	16	10.7	11.21	10	20 pieces
230.01 to 580.00	75	16	10.7	10.46	10	20 pieces
230.01 to 580.00	80	16	10.7	9.81	10	20 pieces
230.01 to 580.00	25	18	12	39.72	10	20 pieces
230.01 to 580.00	30	18	12	33.1	10	20 pieces
230.01 to 580.00	35	18	12	28.37	10	20 pieces
230.01 to 580.00	40	18	12	24.82	10	20 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

1.03 € ( 1.23 € )	8 working days
1.03 € ( 1.23 € )	8 working days
1.20 € ( 1.43 € )	8 working days
1.20 € ( 1.43 € )	8 working days
1.03 € ( 1.23 € )	6 working days
1.03 € ( 1.23 € )	8 working days
1.25 €0.59 € ( 0.70 € )	Stock item: 1 working dayAvailable for same-day shipping
1.20 € ( 1.43 € )	6 working days
1.29 € ( 1.54 € )	8 working days
1.20 € ( 1.43 € )	6 working days
1.25 €0.69 € ( 0.82 € )	Stock item: 1 working dayAvailable for same-day shipping
1.29 € ( 1.54 € )	8 working days
1.29 € ( 1.54 € )	8 working days
1.48 € ( 1.76 € )	8 working days
1.29 € ( 1.54 € )	8 working days
1.29 € ( 1.54 € )	8 working days
1.48 € ( 1.76 € )	8 working days
1.48 € ( 1.76 € )	8 working days
1.57 € ( 1.87 € )	8 working days
1.57 € ( 1.87 € )	8 working days
1.38 €0.81 € ( 0.96 € )	Stock item: 1 working dayAvailable for same-day shipping
1.48 € ( 1.76 € )	8 working days
1.76 € ( 2.09 € )	8 working days
1.76 € ( 2.09 € )	8 working days
2.12 € ( 2.52 € )	8 working days
2.12 € ( 2.52 € )	8 working days
1.67 € ( 1.99 € )	8 working days
1.67 € ( 1.99 € )	8 working days
1.74 €0.94 € ( 1.12 € )	Stock item: 1 working dayAvailable for same-day shipping
1.90 € ( 2.26 € )	8 working days
1.90 € ( 2.26 € )	8 working days
2.12 € ( 2.52 € )	8 working days
2.12 € ( 2.52 € )	8 working days
2.32 € ( 2.76 € )	8 working days
1.49 € ( 1.77 € )	8 working days
1.60 € ( 1.90 € )	8 working days
1.68 € ( 2.00 € )	8 working days
1.90 € ( 2.26 € )	8 working days
2.15 € ( 2.56 € )	8 working days
2.27 € ( 2.70 € )	8 working days
2.52 € ( 3.00 € )	8 working days
2.77 € ( 3.30 € )	8 working days
2.93 € ( 3.49 € )	8 working days
3.05 € ( 3.63 € )	8 working days
2.15 € ( 2.56 € )	6 working days
2.15 € ( 2.56 € )	8 working days
2.18 € ( 2.59 € )	8 working days
2.16 € ( 2.57 € )	8 working days
2.29 € ( 2.73 € )	8 working days
2.51 € ( 2.99 € )	8 working days
2.66 € ( 3.17 € )	8 working days
2.71 € ( 3.22 € )	8 working days
3.10 € ( 3.69 € )	8 working days
3.19 € ( 3.80 € )	8 working days
3.45 € ( 4.11 € )	8 working days
3.61 € ( 4.30 € )	8 working days
2.46 € ( 2.93 € )	8 working days
2.46 € ( 2.93 € )	8 working days
2.52 € ( 3.00 € )	8 working days
2.60 € ( 3.09 € )	8 working days

Basic information

Basic information

A round-wire coil spring included in JIS B 5012: 1998 pressed coil springs.
