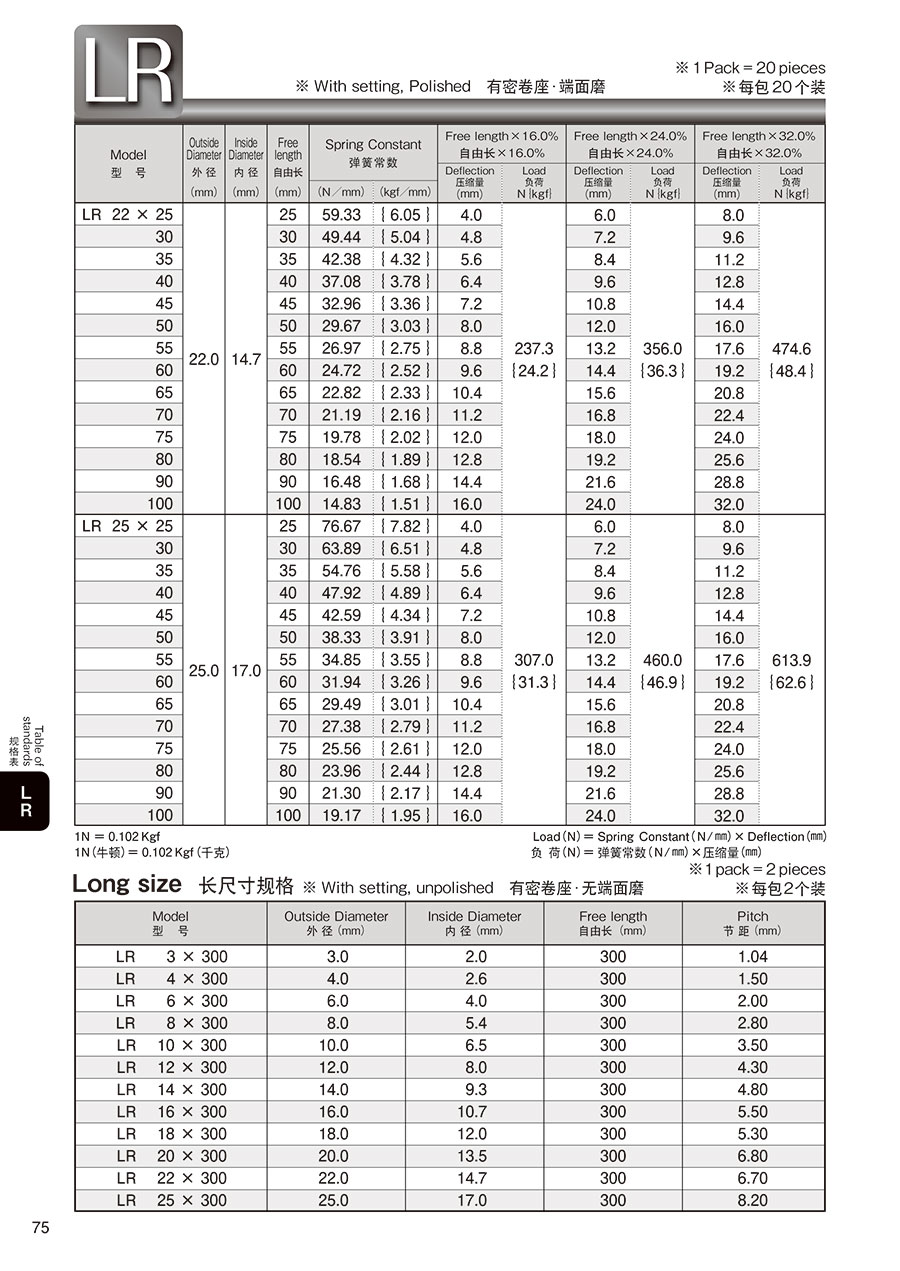

    Round-Wire Coil Spring LR (Long Size)【2 pieces】

    Round-Wire Coil Spring LR (Long Size)

    Part number:

    Still undefined. 12 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    LR3X300
    LR4X300
    LR6X300
    LR8X300
    LR10X300
    LR12X300
    LR14X300
    LR16X300
    LR18X300
    LR20X300
    LR22X300
    LR25X300

    Max. Load (Secified Range)

    (N)

    Outer Diameter

    (mm)

    Coil I.D. ID

    (mm)

    Pitch

    (mm)

    		RoHS?Minimum order quantity
    8.51 to 16.00
    3
    2
    1.04
    10
    1 packs

    2 pieces

    8.51 to 16.00
    4
    2.6
    1.5
    10
    1 packs

    2 pieces

    30.01 to 50.00
    6
    4
    2
    10
    1 packs

    2 pieces

    50.01 to 73.00
    8
    5.4
    2.8
    10
    1 packs

    2 pieces

    73.01 to 107.00
    10
    6.5
    3.5
    10
    1 packs

    2 pieces

    107.01 to 150.00
    12
    8
    4.3
    10
    1 packs

    2 pieces

    150.01 to 230.00
    14
    9.3
    4.8
    10
    1 packs

    2 pieces

    230.01 to 580.00
    16
    10.7
    5.5
    10
    1 packs

    2 pieces

    230.01 to 580.00
    18
    12
    5.3
    10
    1 packs

    2 pieces

    230.01 to 580.00
    20
    13.5
    6.8
    10
    1 packs

    2 pieces

    230.01 to 580.00
    22
    14.7
    6.7
    10
    1 packs

    2 pieces

    580.01～
    25
    17
    8.2
    10
    1 packs

    2 pieces

    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    17.96 €
    ( 21.37 € )
    8 working days
    18.29 €
    ( 21.77 € )
    8 working days
    18.66 €
    ( 22.21 € )
    8 working days
    19.03 €
    ( 22.65 € )
    8 working days
    19.39 €
    ( 23.07 € )
    6 working days
    18.74 €
    ( 22.30 € )
    8 working days
    18.39 €9.75 €
    ( 11.60 € )
    Stock item: 1 working dayAvailable for same-day shipping
    19.36 €
    ( 23.04 € )
    8 working days
    20.90 €
    ( 24.87 € )
    8 working days
    21.85 €
    ( 26.00 € )
    6 working days
    25.29 €
    ( 30.10 € )
    8 working days
    25.55 €
    ( 30.40 € )
    8 working days
  • 1

    • More Information

    Basic information

    Round-wire coil spring included in JIS B 5012: 1998 pressed coil springs.
