Max. Load (Secified Range)(N)

Maximum Load Capacity(N)

206
294
422
579
755
951
1177
1422
1834
2150
2648
3600
4710
7360
10590
13000

Customer-Specified Length(mm)

Outer Diameter(mm)

Coil I.D. ID(mm)

4
5
6
7
8
9
10
11
12.5
13.5
15
17.5
20
25
30
38.5

Spring Constant(N/mm)

10.78
11.5
12.32
13.27
13.63
14.38
15.34
15.68
16.36
17.25
17.53
18.87
19.17
19.19
20.45
21.56
21.59
22.31
23.02
24.07
24.54
24.64
24.67
25.07
26.57
26.75
27.26
28.75
28.78
30.09
30.67
31.34
31.4
31.59
32.1
32.69
34.39
34.5
34.54
35.05
37.04
38.36
38.37
39.18
39.22
39.35
39.49
40.12
40.9
41.79
43.13
43.17
43.77
43.84
43.88
44.72
44.78
47.22
48.15
48.22
49.03
49.07
49.34
49.36
51.11
51.14
52.24
52.65
53.5
54.48
55.09
56.42
56.99
57.5
57.56
59.03
59.63
60.19
60.75
61.28
61.34
61.37
62.69
62.96
65.37
65.43
65.59
65.82
68.78
69.07
69.65
70.04
71.38
71.56
71.8
73.46
73.78
75
75.43
76.71
78.36
78.52
78.7
78.98
80.25
81.71
84.33
85.24
85.71
86.25
86.34
87.24
87.57
87.76
88.15
89.14
89.44
89.55
90.81
95.89
96.3
98.06
98.15
98.38
98.73
99.38
100
102.16
102.28
104.48
107.32
108.95
109.59
110.19
111.45
111.81
112.17
112.83
118.02
118.06
119.26
120
122.43
122.57
122.59
125.37
126.19
127.78
127.85
130.86
131.17
131.64
136.21
137.61
139.48
140.08
146.91
147.22
147.57
149.07
150
153.24
153.43
157.04
157.41
157.96
160.61
162.63
163.43
166.67
168.65
169.52
170.47
175.13
176.67
178.89
183.64
187.5
191.78
196.11
196.3
196.76
200
200.34
204.32
214.29
218.11
219.18
220.37
220.83
223.61
230.77
236.11
244.86
245.19
245.37
250
252.38
255.56
255.71
261.73
272.73
275.46
280.42
294.44
298.15
300
301.99
306.48
306.85
314.81
327.16
333.33
340.53
353.33
356.9
357.78
367.28
375
383.1
392.59
408.64
436.21
437.83
440.74
441.67
471.51
490.74
510.8
552.08
557.24
612.96
630.95
736.11

Type

Est. shipping days

All
Same-day shipping possible
Within 6 working days
Within 8 working days
Within 11 working days

TOKYO HATSUJYO MANUFACTURING

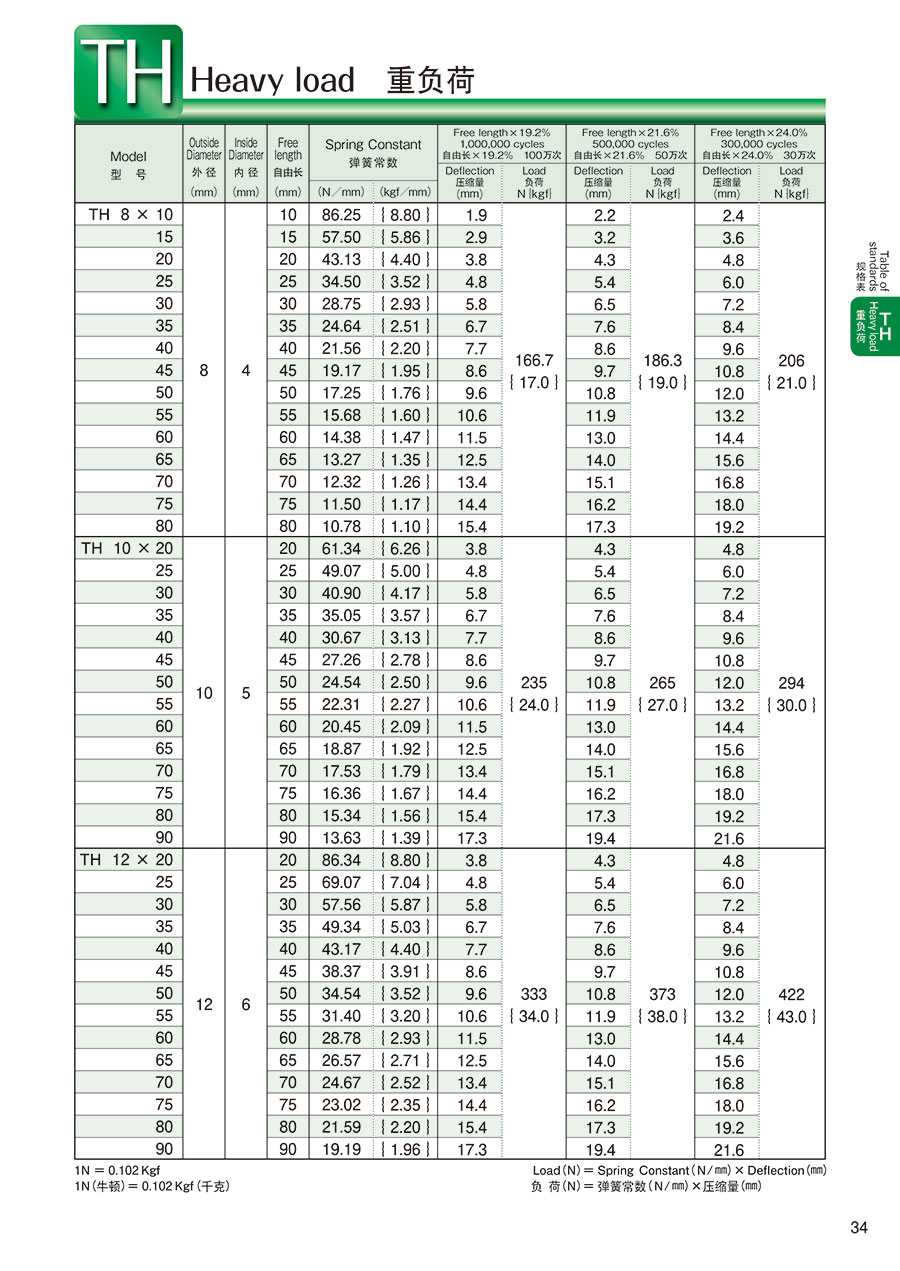

Strong Spring TH (Heavy Load)

Catalog

Part number:

Still undefined. 249 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Max. Load (Secified Range)

(N)

Maximum Load Capacity

(N)

Customer-Specified Length

(mm)

Outer Diameter

(mm)

Coil I.D. ID

(mm)

Spring Constant

(N/mm)

RoHS?

Minimum order quantity

150.01 to 230.00	206	10	8	4	86.25	10	1 pieces
150.01 to 230.00	206	15	8	4	57.5	10	1 pieces
150.01 to 230.00	206	20	8	4	43.13	10	1 pieces
150.01 to 230.00	206	25	8	4	34.5	10	1 pieces
150.01 to 230.00	206	30	8	4	28.75	10	1 pieces
150.01 to 230.00	206	35	8	4	24.64	10	1 pieces
150.01 to 230.00	206	40	8	4	21.56	10	1 pieces
150.01 to 230.00	206	45	8	4	19.17	10	1 pieces
150.01 to 230.00	206	50	8	4	17.25	10	1 pieces
150.01 to 230.00	206	55	8	4	15.68	10	1 pieces
150.01 to 230.00	206	60	8	4	14.38	10	1 pieces
150.01 to 230.00	206	65	8	4	13.27	10	1 pieces
150.01 to 230.00	206	70	8	4	12.32	10	1 pieces
150.01 to 230.00	206	75	8	4	11.5	10	1 pieces
150.01 to 230.00	206	80	8	4	10.78	10	1 pieces
230.01 to 580.00	294	20	10	5	61.34	10	1 pieces
230.01 to 580.00	294	25	10	5	49.07	10	1 pieces
230.01 to 580.00	294	30	10	5	40.9	10	1 pieces
230.01 to 580.00	294	35	10	5	35.05	10	1 pieces
230.01 to 580.00	294	40	10	5	30.67	10	1 pieces
230.01 to 580.00	294	45	10	5	27.26	10	1 pieces
230.01 to 580.00	294	50	10	5	24.54	10	1 pieces
230.01 to 580.00	294	55	10	5	22.31	10	1 pieces
230.01 to 580.00	294	60	10	5	20.45	10	1 pieces
230.01 to 580.00	294	65	10	5	18.87	10	1 pieces
230.01 to 580.00	294	70	10	5	17.53	10	1 pieces
230.01 to 580.00	294	75	10	5	16.36	10	1 pieces
230.01 to 580.00	294	80	10	5	15.34	10	1 pieces
230.01 to 580.00	294	90	10	5	13.63	10	1 pieces
230.01 to 580.00	422	20	12	6	86.34	10	1 pieces
230.01 to 580.00	422	25	12	6	69.07	10	1 pieces
230.01 to 580.00	422	30	12	6	57.56	10	1 pieces
230.01 to 580.00	422	35	12	6	49.34	10	1 pieces
230.01 to 580.00	422	40	12	6	43.17	10	1 pieces
230.01 to 580.00	422	45	12	6	38.37	10	1 pieces
230.01 to 580.00	422	50	12	6	34.54	10	1 pieces
230.01 to 580.00	422	55	12	6	31.4	10	1 pieces
230.01 to 580.00	422	60	12	6	28.78	10	1 pieces
230.01 to 580.00	422	65	12	6	26.57	10	1 pieces
230.01 to 580.00	422	70	12	6	24.67	10	1 pieces
230.01 to 580.00	422	75	12	6	23.02	10	1 pieces
230.01 to 580.00	422	80	12	6	21.59	10	1 pieces
230.01 to 580.00	422	90	12	6	19.19	10	1 pieces
230.01 to 580.00	579	25	14	7	96.3	10	1 pieces
230.01 to 580.00	579	30	14	7	80.25	10	1 pieces
230.01 to 580.00	579	35	14	7	68.78	10	1 pieces
230.01 to 580.00	579	40	14	7	60.19	10	1 pieces
230.01 to 580.00	579	45	14	7	53.5	10	1 pieces
230.01 to 580.00	579	50	14	7	48.15	10	1 pieces
230.01 to 580.00	579	55	14	7	43.77	10	1 pieces
230.01 to 580.00	579	60	14	7	40.12	10	1 pieces
230.01 to 580.00	579	65	14	7	37.04	10	1 pieces
230.01 to 580.00	579	70	14	7	34.39	10	1 pieces
230.01 to 580.00	579	75	14	7	32.1	10	1 pieces
230.01 to 580.00	579	80	14	7	30.09	10	1 pieces
230.01 to 580.00	579	90	14	7	26.75	10	1 pieces
230.01 to 580.00	579	100	14	7	24.07	10	1 pieces
580.01～	755	25	16	8	125.37	10	1 pieces
580.01～	755	30	16	8	104.48	10	1 pieces
580.01～	755	35	16	8	89.55	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

2.02 €1.01 € ( 1.20 € )	Stock item: 1 working dayAvailable for same-day shipping
1.58 € ( 1.88 € )	6 working days
1.49 €1.16 € ( 1.38 € )	Stock item: 1 working dayAvailable for same-day shipping
2.44 € ( 2.90 € )	8 working days
2.74 €1.10 € ( 1.31 € )	Stock item: 1 working dayAvailable for same-day shipping
3.02 € ( 3.59 € )	8 working days
2.69 € ( 3.20 € )	8 working days
4.13 € ( 4.91 € )	8 working days
3.58 € ( 4.26 € )	8 working days
3.05 € ( 3.63 € )	8 working days
3.24 € ( 3.86 € )	8 working days
3.79 € ( 4.51 € )	8 working days
4.03 € ( 4.80 € )	8 working days
4.17 € ( 4.96 € )	8 working days
4.58 € ( 5.45 € )	8 working days
1.56 € ( 1.86 € )	6 working days
1.71 € ( 2.03 € )	8 working days
2.21 € ( 2.63 € )	6 working days
2.32 € ( 2.76 € )	8 working days
2.56 € ( 3.05 € )	8 working days
2.69 € ( 3.20 € )	8 working days
2.79 € ( 3.32 € )	8 working days
2.97 € ( 3.53 € )	8 working days
3.24 € ( 3.86 € )	8 working days
3.45 € ( 4.11 € )	8 working days
3.45 € ( 4.11 € )	8 working days
3.61 € ( 4.30 € )	8 working days
3.77 € ( 4.49 € )	8 working days
4.45 € ( 5.30 € )	8 working days
2.62 €1.07 € ( 1.27 € )	Stock item: 1 working dayAvailable for same-day shipping
2.32 € ( 2.76 € )	6 working days
2.32 €1.14 € ( 1.36 € )	Stock item: 1 working dayAvailable for same-day shipping
2.87 € ( 3.42 € )	8 working days
2.93 € ( 3.49 € )	8 working days
3.24 € ( 3.86 € )	8 working days
3.39 € ( 4.03 € )	8 working days
3.45 € ( 4.11 € )	8 working days
3.83 € ( 4.56 € )	8 working days
4.20 € ( 5.00 € )	8 working days
4.06 € ( 4.83 € )	8 working days
4.23 € ( 5.03 € )	8 working days
4.59 € ( 5.46 € )	8 working days
5.01 € ( 5.96 € )	8 working days
2.44 €1.32 € ( 1.57 € )	Stock item: 1 working dayAvailable for same-day shipping
2.66 € ( 3.17 € )	Stock item: 1 working dayAvailable for same-day shipping
3.36 € ( 4.00 € )	8 working days
2.98 €1.58 € ( 1.88 € )	Stock item: 1 working dayAvailable for same-day shipping
3.50 € ( 4.17 € )	8 working days
3.70 € ( 4.40 € )	11 working days
4.01 € ( 4.77 € )	8 working days
4.06 € ( 4.83 € )	8 working days
4.15 € ( 4.94 € )	8 working days
4.28 € ( 5.09 € )	8 working days
4.47 € ( 5.32 € )	8 working days
4.47 € ( 5.32 € )	8 working days
4.84 € ( 5.76 € )	8 working days
5.40 € ( 6.43 € )	8 working days
3.08 € ( 3.67 € )	6 working days
3.45 € ( 4.11 € )	8 working days
3.84 € ( 4.57 € )	8 working days

Basic information

Basic information

Spring with modified cross-sectioned materials. Compared to round wire coil springs, can handle a high load in a small space.
