TOKYO HATSUJYO MANUFACTURING

Strong Spring TM (Middle Load)

Catalog

Part number:

Still undefined. 249 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Max. Load (Secified Range)

(N)

Maximum Load Capacity

(N)

Customer-Specified Length

(mm)

Outer Diameter

(mm)

Coil I.D. ID

(mm)

Spring Constant

(N/mm)

RoHS?

Minimum order quantity

107.01 to 150.00	137.3	10	8	4	42.57	10	1 pieces
107.01 to 150.00	137.3	15	8	4	28.38	10	1 pieces
107.01 to 150.00	137.3	20	8	4	21.28	10	1 pieces
107.01 to 150.00	137.3	25	8	4	17.03	10	1 pieces
107.01 to 150.00	137.3	30	8	4	14.19	10	1 pieces
107.01 to 150.00	137.3	35	8	4	12.16	10	1 pieces
107.01 to 150.00	137.3	40	8	4	10.64	10	1 pieces
107.01 to 150.00	137.3	45	8	4	9.46	10	1 pieces
107.01 to 150.00	137.3	50	8	4	8.51	10	1 pieces
107.01 to 150.00	137.3	55	8	4	7.74	10	1 pieces
107.01 to 150.00	137.3	60	8	4	7.09	10	1 pieces
107.01 to 150.00	137.3	65	8	4	6.55	10	1 pieces
107.01 to 150.00	137.3	70	8	4	6.08	10	1 pieces
107.01 to 150.00	137.3	75	8	4	5.68	10	1 pieces
107.01 to 150.00	137.3	80	8	4	5.32	10	1 pieces
150.01 to 230.00	196.1	20	10	5	30.64	10	1 pieces
150.01 to 230.00	196.1	25	10	5	24.51	10	1 pieces
150.01 to 230.00	196.1	30	10	5	20.43	10	1 pieces
150.01 to 230.00	196.1	35	10	5	17.51	10	1 pieces
150.01 to 230.00	196.1	40	10	5	15.32	10	1 pieces
150.01 to 230.00	196.1	45	10	5	13.62	10	1 pieces
150.01 to 230.00	196.1	50	10	5	12.26	10	1 pieces
150.01 to 230.00	196.1	55	10	5	11.14	10	1 pieces
150.01 to 230.00	196.1	60	10	5	10.21	10	1 pieces
150.01 to 230.00	196.1	65	10	5	9.43	10	1 pieces
150.01 to 230.00	196.1	70	10	5	8.75	10	1 pieces
150.01 to 230.00	196.1	75	10	5	8.17	10	1 pieces
150.01 to 230.00	196.1	80	10	5	7.66	10	1 pieces
150.01 to 230.00	196.1	90	10	5	6.81	10	1 pieces
230.01 to 580.00	284	20	12	6	44.27	10	1 pieces
230.01 to 580.00	284	25	12	6	35.42	10	1 pieces
230.01 to 580.00	284	30	12	6	29.51	10	1 pieces
230.01 to 580.00	284	35	12	6	25.3	10	1 pieces
230.01 to 580.00	284	40	12	6	22.14	10	1 pieces
230.01 to 580.00	284	45	12	6	19.68	10	1 pieces
230.01 to 580.00	284	50	12	6	17.71	10	1 pieces
230.01 to 580.00	284	55	12	6	16.1	10	1 pieces
230.01 to 580.00	284	60	12	6	14.76	10	1 pieces
230.01 to 580.00	284	65	12	6	13.62	10	1 pieces
230.01 to 580.00	284	70	12	6	12.65	10	1 pieces
230.01 to 580.00	284	75	12	6	11.81	10	1 pieces
230.01 to 580.00	284	90	12	6	9.84	10	1 pieces
230.01 to 580.00	383	25	14	7	47.64	10	1 pieces
230.01 to 580.00	383	30	14	7	39.7	10	1 pieces
230.01 to 580.00	383	35	14	7	34.03	10	1 pieces
230.01 to 580.00	383	40	14	7	29.77	10	1 pieces
230.01 to 580.00	383	50	14	7	23.82	10	1 pieces
230.01 to 580.00	383	55	14	7	21.65	10	1 pieces
230.01 to 580.00	383	60	14	7	19.85	10	1 pieces
230.01 to 580.00	383	65	14	7	18.32	10	1 pieces
230.01 to 580.00	383	70	14	7	17.01	10	1 pieces
230.01 to 580.00	383	75	14	7	15.88	10	1 pieces
230.01 to 580.00	383	80	14	7	14.89	10	1 pieces
230.01 to 580.00	383	90	14	7	13.23	10	1 pieces
230.01 to 580.00	383	100	14	7	11.91	10	1 pieces
230.01 to 580.00	500	25	16	8	62.64	10	1 pieces
230.01 to 580.00	500	30	16	8	52.2	10	1 pieces
230.01 to 580.00	500	35	16	8	44.74	10	1 pieces
230.01 to 580.00	500	40	16	8	39.15	-	1 pieces
230.01 to 580.00	500	45	16	8	34.8	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

2.09 €0.69 € ( 0.82 € )	Stock item: 1 working dayAvailable for same-day shipping
1.29 € ( 1.54 € )	6 working days
1.60 € ( 1.90 € )	8 working days
1.60 € ( 1.90 € )	8 working days
2.08 € ( 2.48 € )	6 working days
1.79 € ( 2.13 € )	6 working days
2.55 € ( 3.03 € )	8 working days
2.33 € ( 2.77 € )	8 working days
2.75 € ( 3.27 € )	8 working days
3.09 € ( 3.68 € )	8 working days
2.94 €1.71 € ( 2.03 € )	Stock item: 1 working dayAvailable for same-day shipping
4.56 € ( 5.43 € )	8 working days
3.75 € ( 4.46 € )	8 working days
4.02 € ( 4.78 € )	8 working days
4.39 € ( 5.22 € )	8 working days
2.62 €1.86 € ( 2.21 € )	Stock item: 1 working dayAvailable for same-day shipping
2.22 €0.78 € ( 0.93 € )	Stock item: 1 working dayAvailable for same-day shipping
2.35 €0.71 € ( 0.84 € )	Stock item: 1 working dayAvailable for same-day shipping
2.01 € ( 2.39 € )	8 working days
2.09 € ( 2.49 € )	6 working days
2.39 € ( 2.84 € )	8 working days
2.56 € ( 3.05 € )	6 working days
3.44 €2.44 € ( 2.90 € )	Stock item: 1 working dayAvailable for same-day shipping
2.87 € ( 3.42 € )	6 working days
2.93 € ( 3.49 € )	8 working days
2.93 € ( 3.49 € )	8 working days
3.31 € ( 3.94 € )	8 working days
3.36 €2.92 € ( 3.47 € )	Stock item: 1 working dayAvailable for same-day shipping
4.54 € ( 5.40 € )	8 working days
1.71 € ( 2.03 € )	6 working days
2.74 €0.93 € ( 1.11 € )	Stock item: 1 working dayAvailable for same-day shipping
1.91 €1.26 € ( 1.50 € )	Stock item: 1 working dayAvailable for same-day shipping
2.32 € ( 2.76 € )	6 working days
2.61 € ( 3.11 € )	6 working days
2.79 € ( 3.32 € )	8 working days
3.68 €1.47 € ( 1.75 € )	Stock item: 1 working dayAvailable for same-day shipping
3.24 € ( 3.86 € )	8 working days
3.31 € ( 3.94 € )	8 working days
3.53 € ( 4.20 € )	8 working days
4.09 € ( 4.87 € )	8 working days
3.83 € ( 4.56 € )	8 working days
5.58 € ( 6.64 € )	8 working days
3.28 €1.38 € ( 1.64 € )	Stock item: 1 working dayAvailable for same-day shipping
2.87 € ( 3.42 € )	6 working days
3.08 € ( 3.67 € )	8 working days
3.24 € ( 3.86 € )	8 working days
3.53 € ( 4.20 € )	6 working days
3.83 € ( 4.56 € )	8 working days
4.45 €1.87 € ( 2.23 € )	Stock item: 1 working dayAvailable for same-day shipping
4.15 € ( 4.94 € )	8 working days
4.15 € ( 4.94 € )	8 working days
4.28 € ( 5.09 € )	8 working days
4.28 € ( 5.09 € )	6 working days
4.84 € ( 5.76 € )	8 working days
5.26 € ( 6.26 € )	8 working days
2.79 € ( 3.32 € )	6 working days
3.24 € ( 3.86 € )	8 working days
3.45 € ( 4.11 € )	6 working days
3.25 €1.66 € ( 1.98 € )	Stock item: 1 working dayAvailable for same-day shipping
4.01 € ( 4.77 € )	6 working days

Basic information

Basic information

Spring with modified cross-sectional materials. Higher loads in small spaces compared to round-wire coil springs.

Catalog

Products homepage

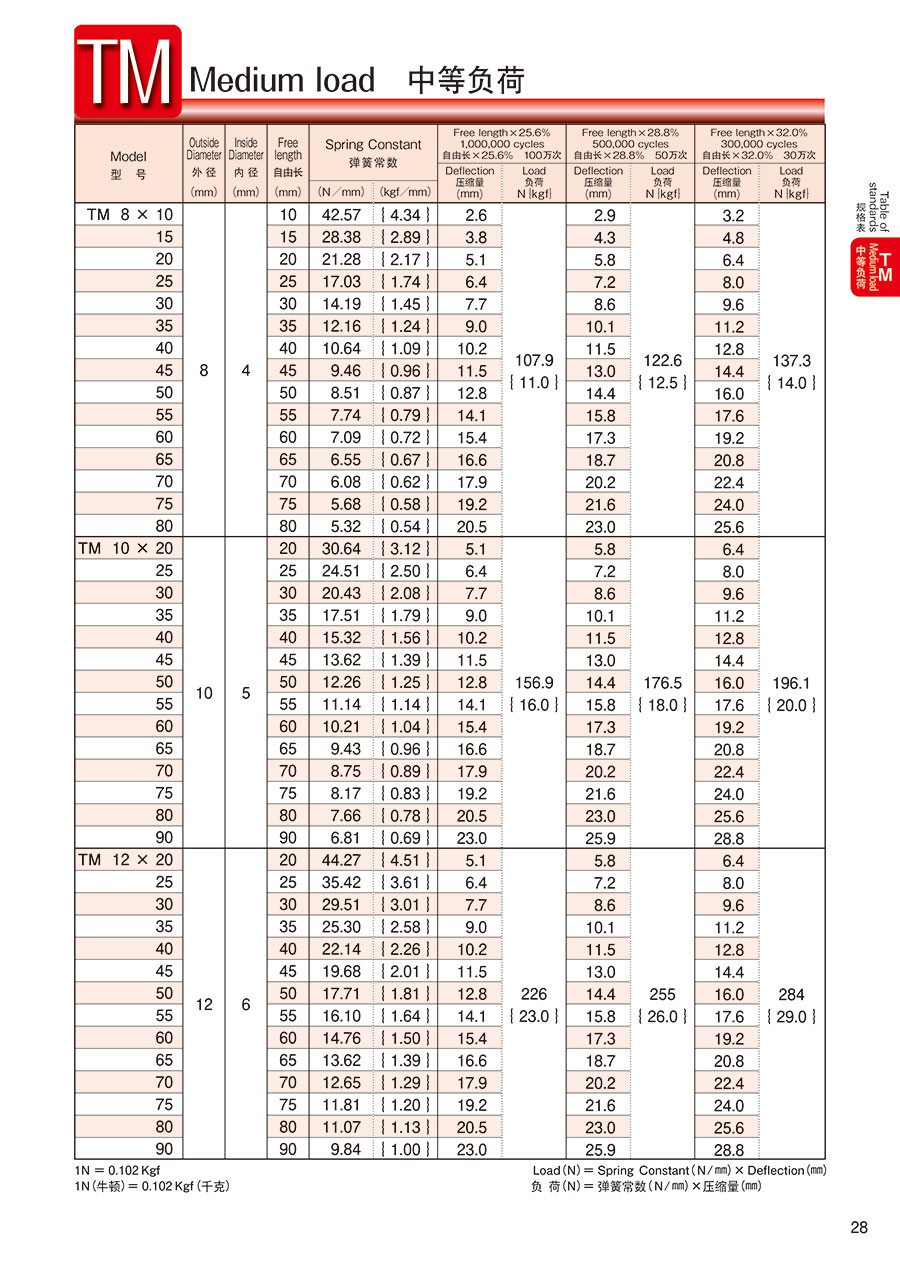

Catalog (2-page spread)
