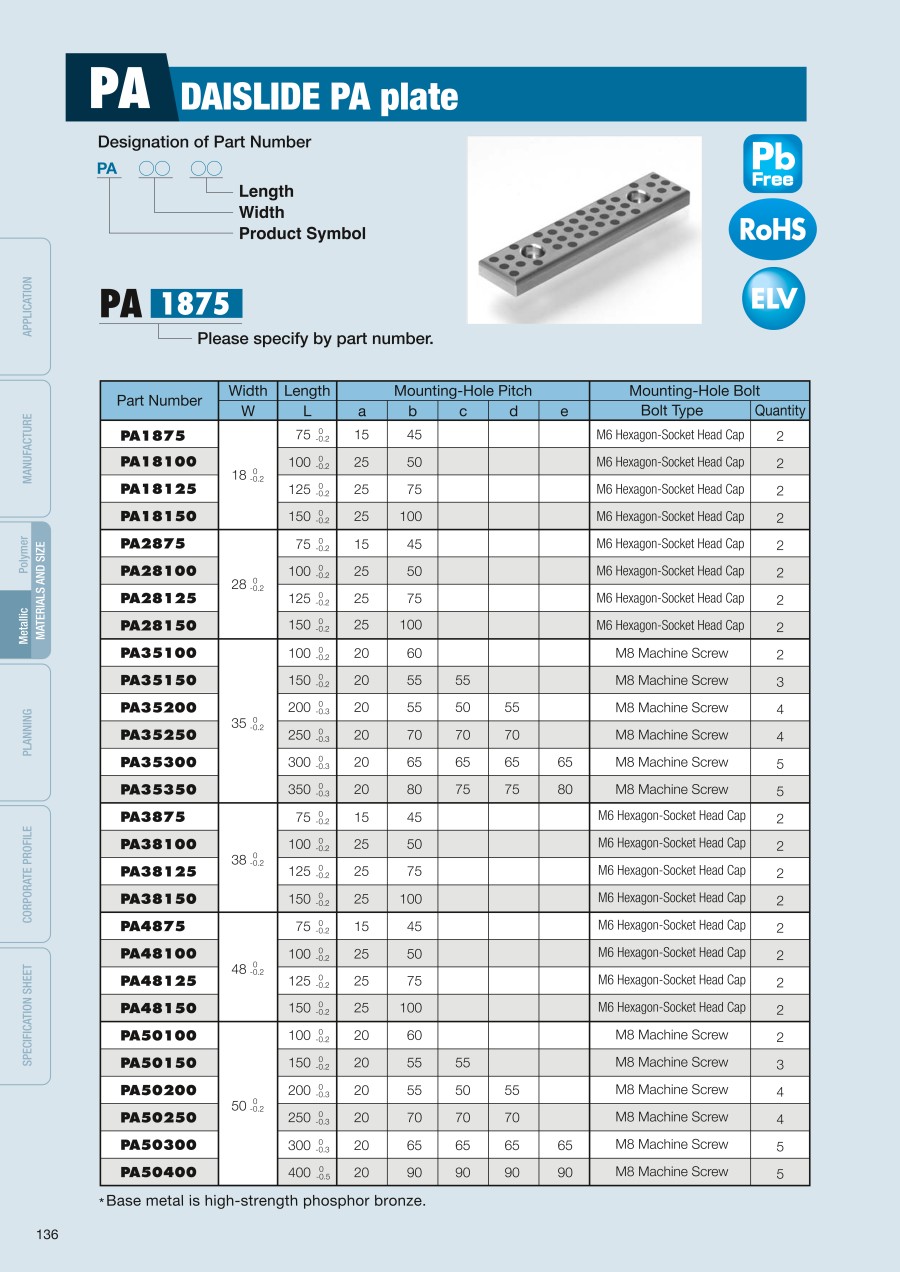

Die Slide Plate PA Series
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| PA18100 |
| PA18125 |
| PA18150 |
| PA28100 |
| PA28125 |
| PA28150 |
| PA2875 |
| PA35100 |
| PA35150 |
| PA35300 |
| PA38125 |
| PA48100 |
| PA48125 |
| PA50100 |
| PA50150 |
| PA50300 |
| PA75150 |
| PA75200 |
| PA75250 |
| PA75300 |
| PA75400 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Width W (mm) | Length L (mm) | Mounting Hole Pitch (mm) | Bolt Type | Mounting hole bolt (pc.) | |
|---|---|---|---|---|---|---|---|---|---|---|
41.60 € | 1 | 5 Days | 10 | 18 | 100 | 25 | M6 with hex socket | 2 | ||
47.63 € | 1 | 5 Days | 10 | 18 | 125 | 25 | M6 with hex socket | 2 | ||
52.83 € | 1 | 5 Days | 10 | 18 | 150 | 25 | M6 with hex socket | 2 | ||
45.75 € | 10 | 37 Days | 10 | 28 | 100 | 25 | M6 with hex socket | 2 | ||
52.15 € | 1 | 5 Days | 10 | 28 | 125 | 25 | M6 with hex socket | 2 | ||
58.42 € | 1 | 5 Days | 10 | 28 | 150 | 25 | M6 with hex socket | 2 | ||
40.02 € | 1 | 5 Days | 10 | 28 | 75 | 15 | M6 with hex socket | 2 | ||
49.84 € | 1 | 5 Days | 10 | 35 | 100 | 20 | M8 flat screw | 2 | ||
63.01 € | 1 | 5 Days | 10 | 35 | 150 | 20 | M8 flat screw | 3 | ||
110.64 € | 1 | 36 Days | 10 | 35 | 300 | 20 | M8 flat screw | 5 | ||
65.11 € | 1 | 5 Days | 10 | 38 | 125 | 25 | M6 with hex socket | 2 | ||
66.25 € | 1 | 5 Days | 10 | 48 | 100 | 25 | M6 with hex socket | 2 | ||
75.49 € | 1 | 5 Days | 10 | 48 | 125 | 25 | M6 with hex socket | 2 | ||
68.38 € | 1 | 5 Days | 10 | 50 | 100 | 20 | M8 flat screw | 2 | ||
85.78 € | 1 | 37 Days | 10 | 50 | 150 | 20 | M8 flat screw | 3 | ||
129.40 € | 2 | 37 Days | 10 | 50 | 300 | 20 | M8 flat screw | 5 | ||
91.13 € | 1 | 5 Days | 10 | 75 | 150 | 20 | M8 flat screw | 4 | ||
112.77 € | 1 | Available |
Same day
Stock | 10 | 75 | 200 | 20 | M8 flat screw | 6 | |
124.66 € | 1 | 5 Days | 10 | 75 | 250 | 20 | M8 flat screw | 6 | ||
155.44 € | 1 | 5 Days | 10 | 75 | 300 | 20 | M8 flat screw | 8 | ||
213.48 € | 1 | 5 Days | 10 | 75 | 400 | 20 | M8 flat screw | 8 |
Loading...
Basic information
| Material | Metal system | Metal system material | High tensile brass based | Lubrication | Oil-Free |
|---|---|---|---|---|---|
| Thickness t(mm) | 10 | Maximum Allowable Surface Pressure P(N/mm2) | 29 | Maximum Allowable Velocity V(m/s) | 0.5 |
| Maximum Allowable PV Value(N/mm2·m/s) | 1.65 |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Width W(mm)
-
Length L(mm)
-
Mounting Hole Pitch(mm)
-
Bolt Type
- M6 with hex socket
- M8 flat screw
-
Mounting hole bolt(pc.)
- 2
- 3
- 4
- 5
- 6
- 8
-
Type
- PA
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 36 Days or Less
- 37 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
