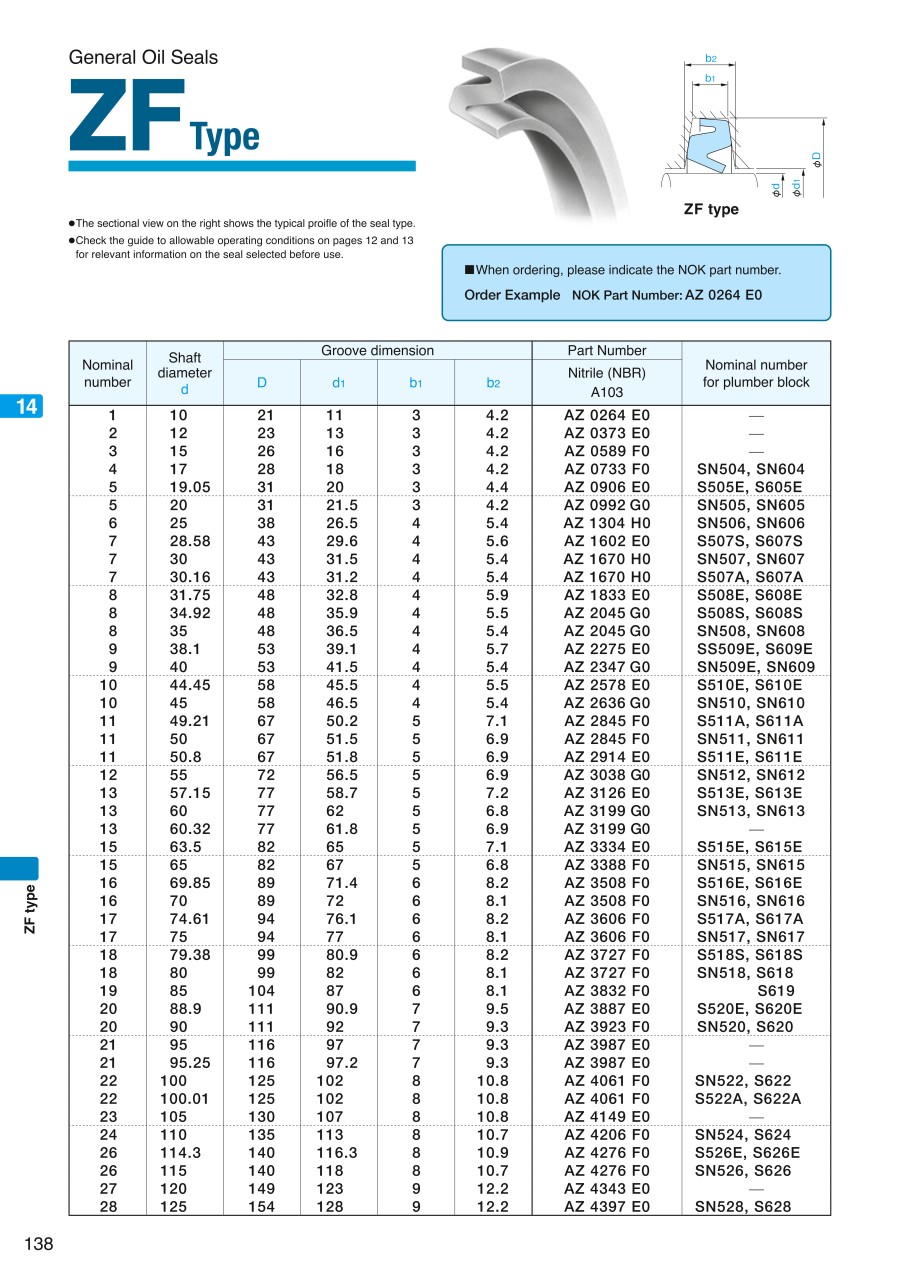

NOK General Oil Seal ZF Type
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Shaft Dia. d (Ø) | Groove Dimension D (mm) | Groove Dimension d1 (mm) | |
|---|---|---|---|---|---|---|---|
1.00 € | 1 | 9 Days | 10 | 21 | 11 | ||
0.98 € | 1 | 9 Days | 12 | 23 | 13 | ||
3.39 € | 1 |
Same day
Stock | 15 | 26 | 16 | ||
3.53 € | 1 |
Same day
Stock | 17 | 28 | 18 | ||
1.42 € | 1 | 9 Days | 20 | 31 | 21.5 | ||
2.69 € | 1 | Available |
Same day
Stock | 25 | 38 | 26.5 | |
3.06 € | 1 | 9 Days | 30 | 43 | 31.5 | ||
4.38 € | 1 |
Same day
Stock | 35 | 48 | 36.5 | ||
5.29 € | 1 | 5 Days | 40 | 53 | 41.5 | ||
5.08 € | 1 | Available | 5 Days | 50 | 67 | 51.5 | |
4.90 € | 1 | 9 Days | 65 | 82 | 67 | ||
6.53 € | 1 | 9 Days | 70 | 89 | 72 | ||
5.98 € | 1 | 9 Days | 75 | 94 | 77 | ||
3.83 € | 1 | 5 Days | 80 | 99 | 82 | ||
4.36 € | 1 | 9 Days | 85 | 104 | 87 | ||
5.59 € | 1 | 9 Days | 90 | 111 | 92 | ||
4.76 € | 1 | 9 Days | 95 | 116 | 97 | ||
13.41 € | 1 | 9 Days | 100 | 125 | 102 | ||
9.04 € | 1 | 9 Days | 105 | 130 | 107 | ||
7.02 € | 1 | 9 Days | 110 | 135 | 113 | ||
7.35 € | 1 | 9 Days | 115 | 140 | 118 | ||
12.78 € | 1 | 9 Days | 120 | 149 | 123 | ||
9.60 € | 1 | 9 Days | 125 | 154 | 128 | ||
10.50 € | 1 | 9 Days | 130 | 159 | 133 | ||
12.17 € | 1 | Available |
Same day
Stock | 135 | 164 | 138 | |
12.87 € | 1 | 9 Days | 140 | 173 | 143 | ||
14.08 € | 1 | 9 Days | 150 | 183 | 153 | ||
15.27 € | 1 | 9 Days | 160 | 193 | 163 | ||
16.26 € | 1 | 9 Days | 170 | 203 | 173 | ||
17.63 € | 1 | 9 Days | 190 | 223 | 193 | ||
21.79 € | 1 | 9 Days | 200 | 240 | 203 | ||
32.29 € | 1 | 9 Days | 240 | 286 | 243 | ||
34.47 € | 1 | 9 Days | 250 | 296 | 253 | ||
56.66 € | 1 | 9 Days | 320 | 372 | 323 | ||
72.28 € | 1 | 9 Days | 380 | 432 | 383 |
Loading...
Basic information
| Sliding Surface | Axis | Sealing Subject Liquid | Grease | Seal Material | Nitrile Rubber |
|---|---|---|---|---|---|
| Seal Rim Area Material | Rubber (No Metal Ring) | Environment, Applications | Standard / For Rolling Bearings | Dust Lip | NA |
| Attaching Method | From only the shaft end | Housing Groove | Available | Two Liquids Separation | NA |
| Operating Temperature Range(℃) | -22::80 |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Shaft Dia. d(Ø)
-
Groove Dimension D(mm)
-
Groove Dimension d1(mm)
-
Type
- AZ
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 9 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
