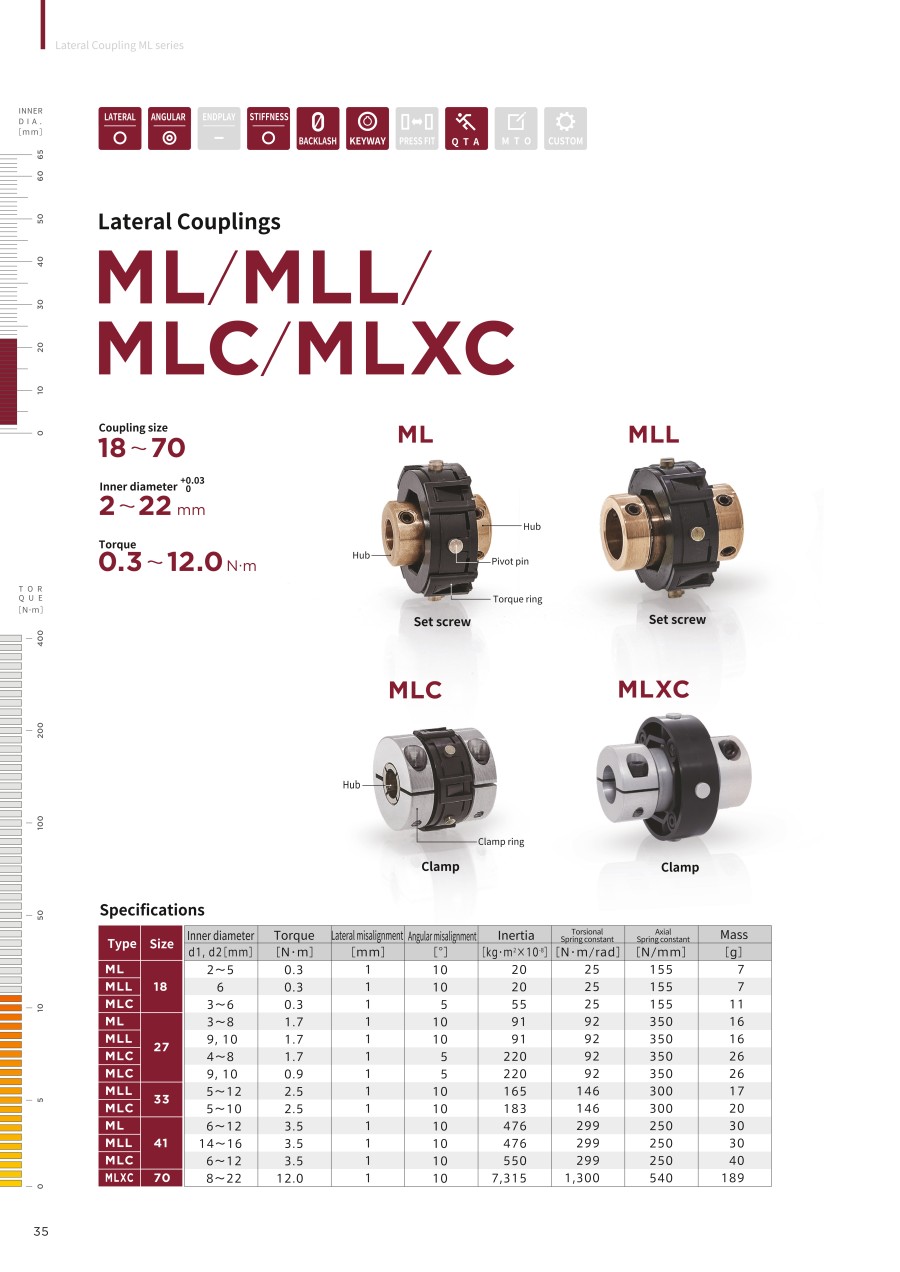

Lateral / Coupling MLC Series
- Promotional pricing ends 30/11/2024
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Allowable Torque Range (N▪m) | Outer Diameter A (φ) | Full length W (mm) | Main Body Material | Allowable Torque (N▪m) | Allowable Angular Misalignment (deg) | Moment of Inertia (kg·m2) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
111.61 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 18 | 19.1 | Free-Cutting Brass | 0.3 | 5 | 55X10-8 | |
115.23 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 18 | 19.1 | Free-Cutting Brass | 0.3 | 5 | 55X10-8 | |
115.23 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 18 | 19.1 | Free-Cutting Brass | 0.3 | 5 | 55X10-8 | |
115.23 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 18 | 19.1 | Free-Cutting Brass | 0.3 | 5 | 55X10-8 | |
111.61 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 18 | 19.1 | Free-Cutting Brass | 0.3 | 5 | 55X10-8 | |
115.23 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 18 | 19.1 | Free-Cutting Brass | 0.3 | 5 | 55X10-8 | |
115.23 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 18 | 19.1 | Free-Cutting Brass | 0.3 | 5 | 55X10-8 | |
111.61 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 18 | 19.1 | Free-Cutting Brass | 0.3 | 5 | 55X10-8 | |
115.23 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 18 | 19.1 | Free-Cutting Brass | 0.3 | 5 | 55X10-8 | |
111.61 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 18 | 19.1 | Free-Cutting Brass | 0.3 | 5 | 55X10-8 | |
82.29 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 27.2 | 25.4 | Free-Cutting Brass | 1.7 | 5 | 220X10-8 | |
84.83 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 27.2 | 25.4 | Free-Cutting Brass | 1.7 | 5 | 220X10-8 | |
84.83 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 27.2 | 25.4 | Free-Cutting Brass | 1.7 | 5 | 220X10-8 | |
84.83 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 27.2 | 25.4 | Free-Cutting Brass | 1.7 | 5 | 220X10-8 | |
84.83 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 27.2 | 25.4 | Free-Cutting Brass | 1.7 | 5 | 220X10-8 | |
84.83 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 27.2 | 25.4 | Free-Cutting Brass | 0.9 | 5 | 220X10-8 | |
84.83 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 27.2 | 25.4 | Free-Cutting Brass | 0.9 | 5 | 220X10-8 | |
82.29 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 27.2 | 25.4 | Free-Cutting Brass | 1.7 | 5 | 220X10-8 | |
88.56 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 27.2 | 25.4 | Free-Cutting Brass | 1.7 | 5 | 220X10-8 | |
84.83 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 27.2 | 25.4 | Free-Cutting Brass | 1.7 | 5 | 220X10-8 | |
84.83 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 27.2 | 25.4 | Free-Cutting Brass | 1.7 | 5 | 220X10-8 | |
84.83 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 27.2 | 25.4 | Free-Cutting Brass | 0.9 | 5 | 220X10-8 | |
84.83 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 27.2 | 25.4 | Free-Cutting Brass | 0.9 | 5 | 220X10-8 | |
82.29 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 27.2 | 25.4 | Free-Cutting Brass | 1.7 | 5 | 220X10-8 | |
84.83 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 27.2 | 25.4 | Free-Cutting Brass | 1.7 | 5 | 220X10-8 | |
88.74 € 62.12 € | 1 | Available |
Same day
Stock | 10 | 1.01 to 3.00 | 27.2 | 25.4 | Free-Cutting Brass | 1.7 | 5 | 220X10-8 | |
84.83 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 27.2 | 25.4 | Free-Cutting Brass | 0.9 | 5 | 220X10-8 | |
84.83 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 27.2 | 25.4 | Free-Cutting Brass | 0.9 | 5 | 220X10-8 | |
82.29 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 27.2 | 25.4 | Free-Cutting Brass | 1.7 | 5 | 220X10-8 | |
84.83 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 27.2 | 25.4 | Free-Cutting Brass | 1.7 | 5 | 220X10-8 | |
84.83 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 27.2 | 25.4 | Free-Cutting Brass | 0.9 | 5 | 220X10-8 | |
84.83 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 27.2 | 25.4 | Free-Cutting Brass | 0.9 | 5 | 220X10-8 | |
85.82 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 27.2 | 25.4 | Free-Cutting Brass | 1.7 | 5 | 220X10-8 | |
84.83 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 27.2 | 25.4 | Free-Cutting Brass | 0.9 | 5 | 220X10-8 | |
88.56 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 27.2 | 25.4 | Free-Cutting Brass | 0.9 | 5 | 220X10-8 | |
82.29 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 27.2 | 25.4 | Free-Cutting Brass | 0.9 | 5 | 220X10-8 | |
84.83 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 27.2 | 25.4 | Free-Cutting Brass | 0.9 | 5 | 220X10-8 | |
85.79 € | 1 | Available | 9 Days | 10 | 0.05 to 1.00 | 27.2 | 25.4 | Free-Cutting Brass | 0.9 | 5 | 220X10-8 | |
118.70 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
121.23 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
121.23 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
121.23 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
121.23 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
121.23 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
118.70 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
121.23 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
126.20 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
121.23 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
121.23 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
118.70 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
121.23 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
121.23 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
121.23 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
123.57 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
121.23 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
126.20 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
118.70 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
121.23 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
123.56 € | 1 | Available | 9 Days | 10 | 1.01 to 3.00 | 33.7 | 30.7 | [Aluminum] Aluminum Alloy | 2.5 | 10 | 183X10-8 | |
134.06 € | 1 | Available | 9 Days | 10 | 3.01 to 5.00 | 41.4 | 38.1 | [Aluminum] Aluminum Alloy | 3.5 | 10 | 550X10-8 |
Loading...
Basic information
| Features | High Accuracy / High durability / Backlash 0 | Allowable Misalignment | Angular Misalignment / Eccentricity | Application | Standard / Servo Motor / Stepping Motor / Encoder |
|---|---|---|---|---|---|
| Allowable Lateral Misalignment Range(mm) | 1.1 to 3.0 | Allowable Lateral Misalignment(mm) | 1.3 | Shaft fixing method (END1 side) | Clamp |
| Shaft fixing method (END2 side) | Clamp |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Allowable Torque Range(N▪m)
-
Outer Diameter A(φ)
-
Full length W(mm)
-
Main Body Material
- Aluminum
- Free-Cutting Brass
- Aluminum
-
Allowable Torque(N▪m)
-
Allowable Angular Misalignment(deg)
-
Type
- MLC
Filter by standard shipping days
-
- All
- Same day
- 9 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
