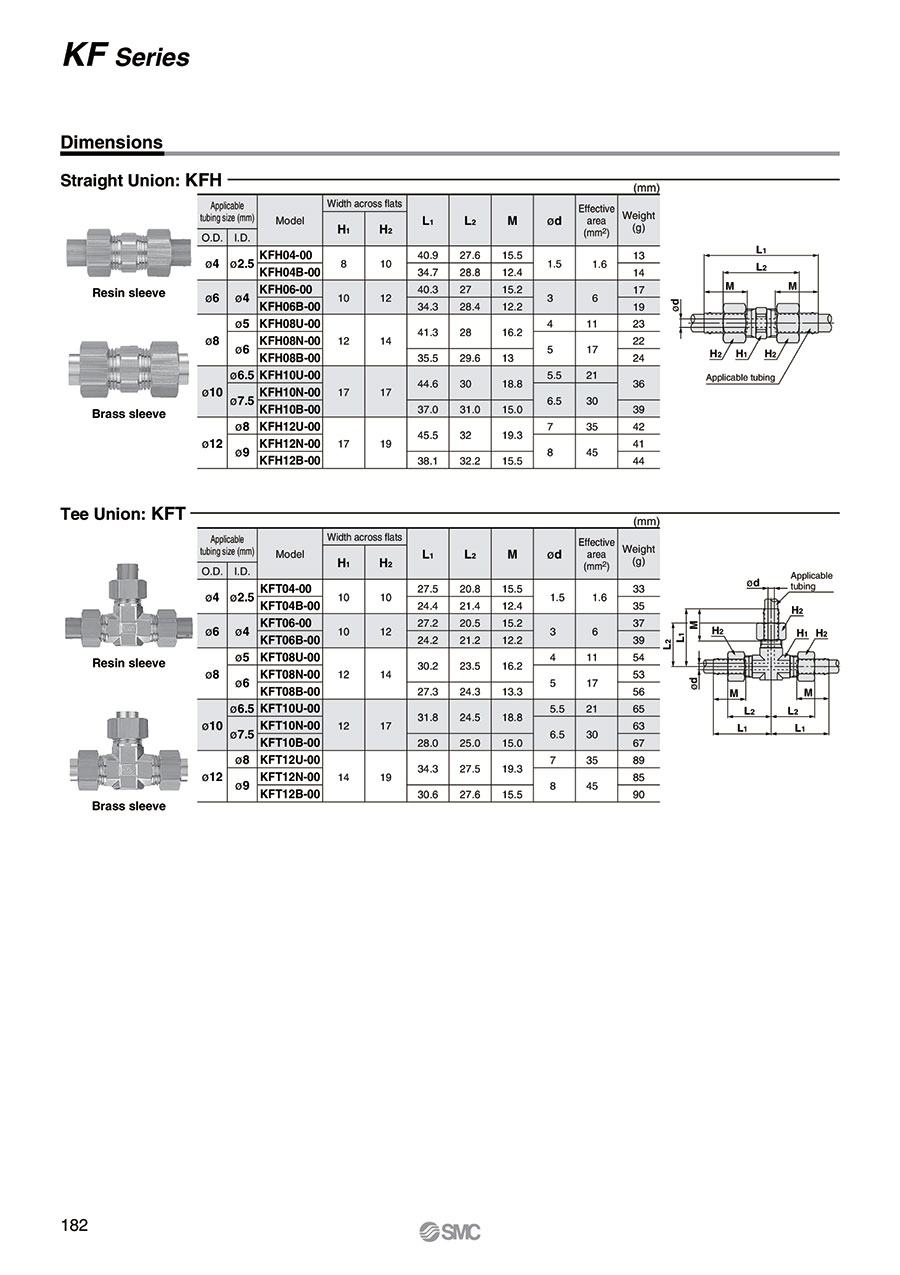

Insert Fittings KF Series, Tee Union KFT
(i)Remark
- For materials and specification details, please refer to the catalog.
- Product images may be representative images. Refer to the catalog for details.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Surface Treatment | Applicable Tube Size O.D. (mm) | Applicable Tube Size I.D. (mm) | Sleeve material | Seal agent | Sealant | Suitable operating environment | |
|---|---|---|---|---|---|---|---|---|---|---|---|
7.73 € | 10 | 26 Days | Nickel Plating | 6 | 4 | Resin | - | None | Clean room | ||
8.87 € | 10 | 26 Days | Nickel Plating | 8 | 5 | Resin | - | None | Clean room | ||
6.15 € | 10 | 26 Days | NA | 4 | 2.5 | Resin | - | None | Standard | ||
8.37 € | 10 | 26 Days | NA | 4 | 2.5 | Brass | - | None | Standard | ||
7.87 € | 10 | 26 Days | Nickel Plating | 4 | 2.5 | Brass | - | None | Standard | ||
5.92 € | 10 | 4 Days | NA | 6 | 4 | Resin | N/A | Standard | Standard | ||
6.82 € | 10 | 26 Days | Nickel Plating | 6 | 4 | Resin | - | None | Standard | ||
7.34 € | 10 | 26 Days | NA | 6 | 4 | Brass | N/A | Standard | Standard | ||
8.32 € | 10 | 26 Days | Nickel Plating | 6 | 4 | Brass | - | None | Standard | ||
8.42 € | 10 | 26 Days | NA | 8 | 6 | Brass | - | None | Standard | ||
9.60 € | 10 | 26 Days | Nickel Plating | 8 | 6 | Brass | - | None | Standard | ||
6.77 € | 10 | 4 Days | NA | 8 | 6 | Resin | N/A | Standard | Standard | ||
8.03 € | 10 | 26 Days | Nickel Plating | 8 | 6 | Resin | - | None | Standard | ||
6.77 € | 10 | 4 Days | NA | 8 | 5 | Resin | N/A | Standard | Standard | ||
8.03 € | 10 | 26 Days | Nickel Plating | 8 | 5 | Resin | - | None | Standard | ||
11.39 € | 5 | 26 Days | NA | 10 | 7.5 | Brass | - | None | Standard | ||
12.76 € | 5 | 26 Days | Nickel Plating | 10 | 7.5 | Brass | - | None | Standard | ||
8.31 € | 5 | 4 Days | NA | 10 | - | Resin | N/A | Standard | Standard | ||
9.27 € | 5 | 26 Days | Nickel Plating | 10 | 7.5 | Resin | - | None | Standard | ||
8.31 € | 5 | 4 Days | NA | 10 | - | Resin | N/A | Standard | Standard | ||
9.85 € | 5 | 26 Days | Nickel Plating | 10 | 6.5 | Resin | - | None | Standard | ||
13.03 € | 5 | 26 Days | NA | 12 | 9 | Brass | - | None | Standard | ||
14.82 € | 5 | 26 Days | Nickel Plating | 12 | 9 | Brass | - | None | Standard | ||
9.68 € | 5 | 26 Days | NA | 12 | 9 | Resin | - | None | Standard | ||
11.68 € | 5 | 26 Days | Nickel Plating | 12 | 9 | Resin | - | None | Standard | ||
9.68 € | 5 | 26 Days | NA | 12 | 8 | Resin | N/A | Standard | Standard |
Loading...
Basic information
| Connection Type | Tube ⇔ Connection of tube with same diameter | Tube-to-Tube Connection Shape | T-shaped Union | Material | EN CW614N Equiv. + EN CW617N Equiv. |
|---|
Configure
Basic Attributes
-
Surface Treatment
- NA
- Nickel Plating
-
Applicable Tube Size O.D.(mm)
-
Applicable Tube Size I.D.(mm)
-
Sleeve material
- Brass
- Resin
-
Seal agent
- N/A
-
Sealant
- None
- Standard
-
Suitable operating environment
- Clean room
- Standard
-
Type
- 10-KFT06
- 10-KFT08
- KFT04
- KFT06
- KFT08
- KFT10
- KFT12
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
- 26 Days or Less
Optional Attributes
- Product images may be representative images. Refer to the catalog for details.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
