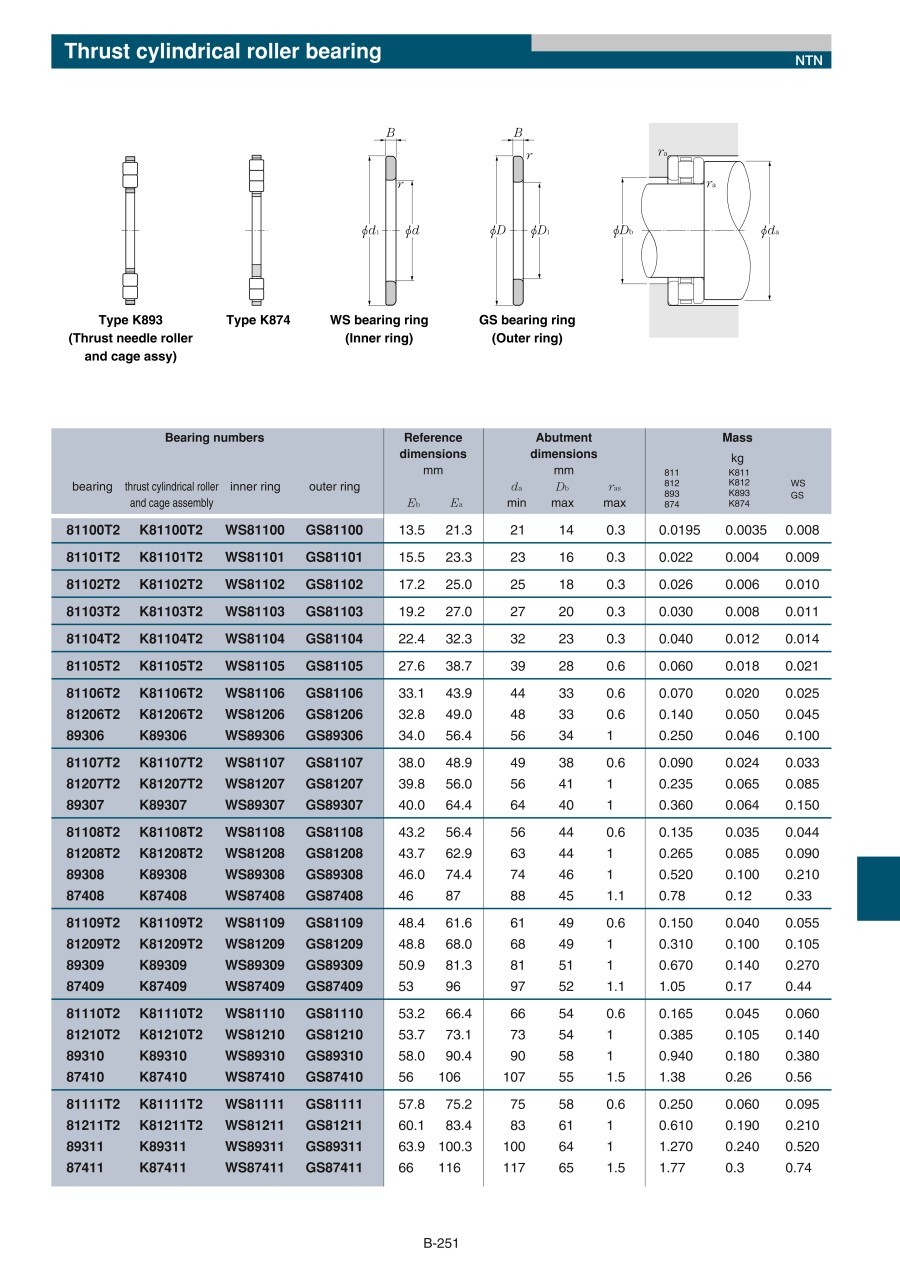

Thrust Cylindrical Roller Bearing GS-Type Bearing Ring
- Promotional pricing
- Volume Discount
·The bearing combines rollers, a disk-shaped bearing ring, and a thrust retainer in which needle-shaped or cylindrical rollers are installed radially, and bears an unidirectional axial load.
·A shaft and housing can also be used directly as a raceway without a bearing ring, which enables low-profile, lightweight and compact design structures.
·This type of thrust roller bearing is not capable of performing a theoretically perfect rolling motion and will experience slippage on the raceway surface; however, in most cases, it does not hinder practical use and can rotate at a relatively high speed.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| GS81206 |
| GS81207 |
| GS81209 |
| GS81210 |
| GS81211 |
| GS81212 |
| GS81213 |
| GS81214 |
| GS81215 |
| GS81216 |
| GS81217 |
| GS81218 |
| GS81220 |
| GS81222 |
| GS81224 |
| GS81228 |
| GS89309 |
| GS89314 |
| GS89318 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | I.D. d (mm) | O.D. D (mm) | Width B (mm) | Basic Load Rating, Dynamic Rating (Ca) (N) | Basic Load Rating, Static Rating (Coa) (N) | Number Of Rotations (1/min) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
12.29 € | 1 | 8 Days | - | 30 | 52 | 4.25 | 53000 | 129000 | 6000 | ||
13.66 € | 1 | 8 Days | - | 35 | 62 | 5.25 | 54500 | 139000 | 4900 | ||
13.91 € 6.82 € | 1 | Available |
Same day
Stock | - | 45 | 73 | 5.5 | 82000 | 222000 | 4100 | |
17.94 € | 1 | 8 Days | - | 50 | 78 | 6.5 | 85000 | 238000 | 3800 | ||
22.14 € | 1 | 8 Days | - | 55 | 90 | 7 | 121000 | 340000 | 3300 | ||
23.44 € | 1 | 8 Days | - | 60 | 95 | 7.5 | 126000 | 365000 | 3100 | ||
26.27 € | 1 | 8 Days | - | 65 | 100 | 8 | 130000 | 385000 | 2900 | ||
27.58 € | 1 | 8 Days | - | 70 | 105 | 8 | 134000 | 410000 | 2700 | ||
24.77 € 13.13 € | 1 | Available |
Same day
Stock | - | 75 | 110 | 8 | 138000 | 435000 | 2600 | |
37.71 € | 1 | 8 Days | - | 80 | 115 | 8.5 | 143000 | 460000 | 2500 | ||
48.29 € | 1 | 9 Days | - | 85 | 125 | 9.5 | 169000 | 550000 | 2300 | ||
53.42 € | 1 | 8 Days | - | 90 | 135 | 10.5 | 213000 | 680000 | 2100 | ||
62.70 € | 1 | 8 Days | - | 100 | 150 | 11.5 | 243000 | 795000 | 1900 | ||
70.67 € | 1 | 9 Days | 10 | 110 | 160 | 11.5 | 258000 | 885000 | 1800 | ||
82.60 € | 1 | 8 Days | 10 | 120 | 170 | 12 | 264000 | 930000 | 1700 | ||
139.82 € | 1 | 8 Days | 10 | 140 | 200 | 13.5 | 370000 | 1280000 | 1400 | ||
27.72 € | 1 | 8 Days | 10 | 45 | 85 | 8.25 | 102000 | 345000 | 3600 | ||
51.68 € | 1 | 8 Days | 10 | 70 | 125 | 12 | 205000 | 790000 | 2400 | ||
106.50 € | 1 | 8 Days | 10 | 90 | 155 | 13.5 | 289000 | 1160000 | 1900 |
Loading...
Basic information
| Raceway Ring Shape | Cylindrical Roller | Load Direction | Radial | Inner/Outer Ring Material | Steel |
|---|---|---|---|---|---|
| Number of Raceway Ring Rows | Single Row | Size Standards | Metric System | Specifications/Environment | Standard |
| Rolling Element Material | Steel | Outer Ring Type | Flat | Retainer Type | NA |
| Lubricant | NA | Internal Clearance Symbol | NA | Format symbol | NA |
| Holder Symbol | NA | Specifications | Standard | Seal, Shield | NA |
| Symbol of Bearing Ring Shape | NA |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
I.D. d(mm)
-
O.D. D(mm)
-
Width B(mm)
-
Number Of Rotations(1/min)
-
Type
- GS
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 8 Days or Less
- 9 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
