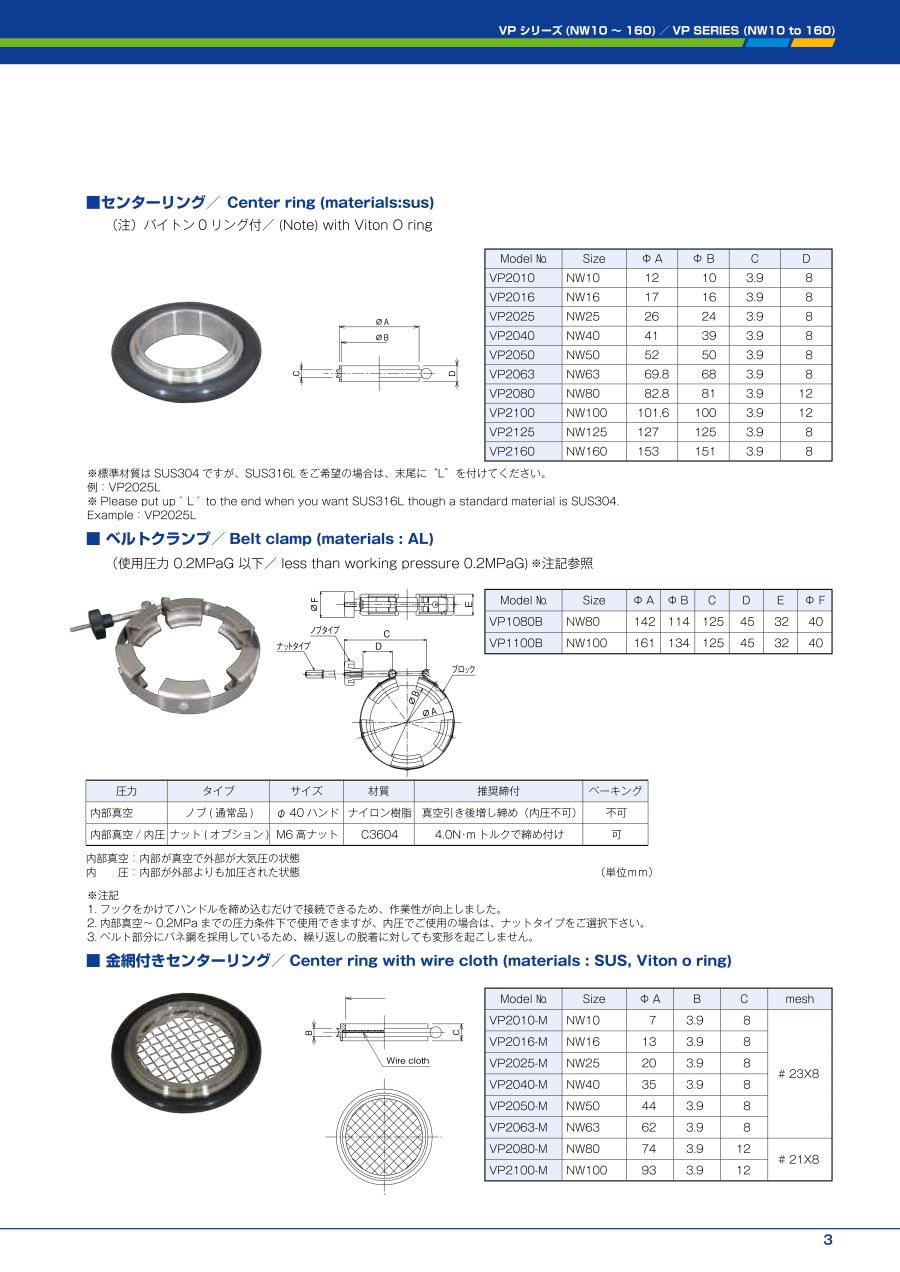

VP Series, Center Ring
Click image to view enlarged image
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
9.60 € ( 11.42 € ) | 15 working days |
14.85 €5.05 € ( 6.01 € ) | Stock item: 1 working dayAvailable for same-day shipping |
15.89 €5.72 € ( 6.81 € ) | Stock item: 1 working dayAvailable for same-day shipping |
15.31 € ( 18.22 € ) | 6 working days |
33.13 € ( 39.42 € ) | 12 working days |
36.66 € ( 43.63 € ) | 13 working days |
46.79 € ( 55.68 € ) | 9 working days |
82.20 € ( 97.82 € ) | 15 working days |
102.37 € ( 121.82 € ) | 15 working days |
More Information
Basic information
Many reliable Irie Koken products available from MISUMI.
[Features]
- IKC is an ISO-based pipe fitting for NW-KF flanges. The VP series (10 sizes) for vacuum piping and hp series (8 sizes) for high-pressure piping are provided.
- No need for bolts nor nuts. Just insert the inside taper of the coupling into the taper on the flange and turn the wing screw to insert or remove.
- Can be heated up to 150℃.
- Leakage volume is 1×10-9 Pa•m3/s or less.
