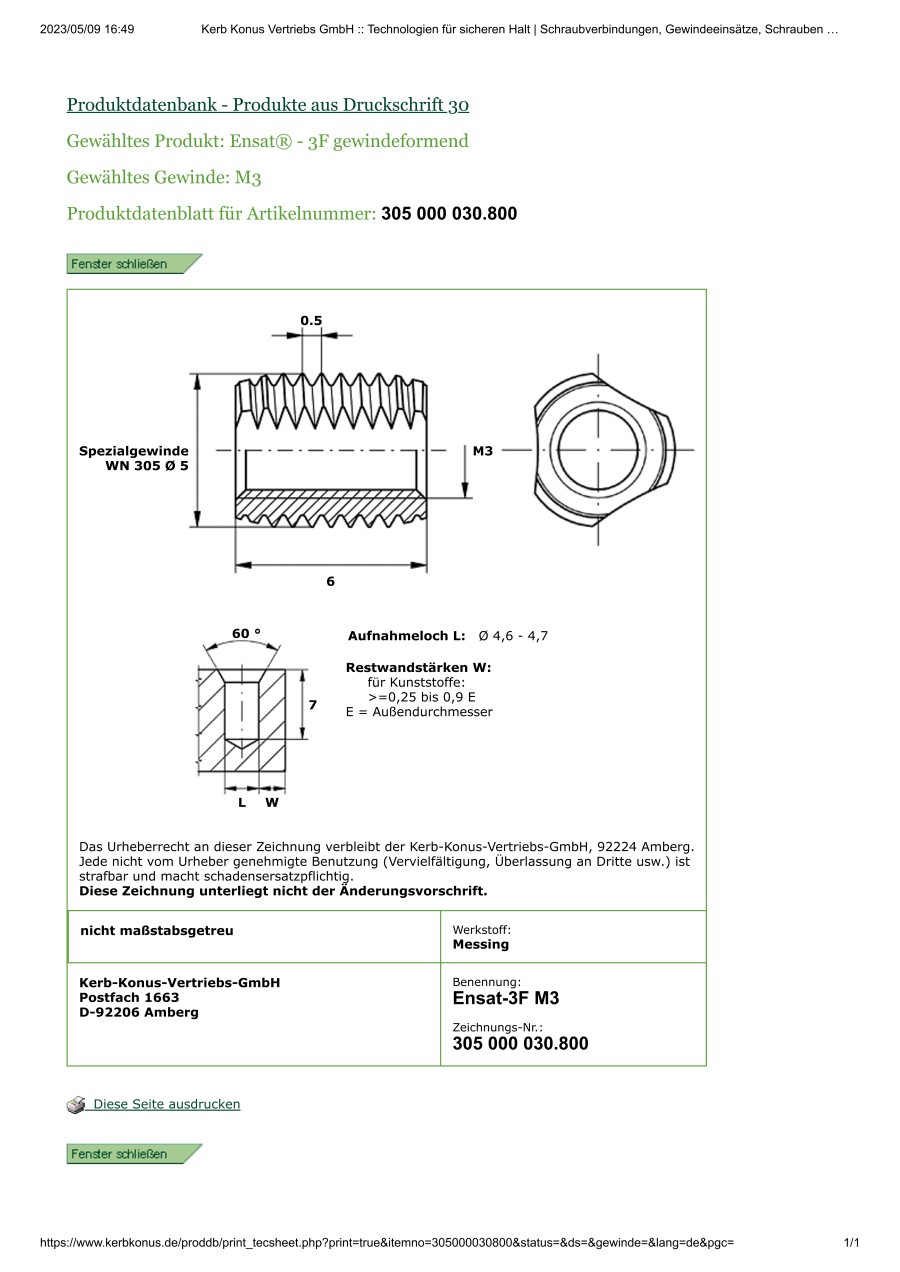

    Brass, Ensat, Screw Plastic Deformation, Type 305

    Brass, Ensat, Screw Plastic Deformation, Type 305

    Part number:

    Still undefined. 4 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    305-000030-800
    305-000040-800
    305-000050-800
    305-000060-800

    Size/Internal Thread d1

    (mm)

    Internal Thread P

    (mm)

    Length L

    (mm)

    Outside Screw d2

    (mm)

    Outside Screw pe

    (mm)

    		RoHS?Minimum order quantity
    3
    0.5
    6
    5
    0.5
    10
    1 pieces
    4
    0.7
    8
    6.5
    0.75
    10
    1 pieces
    5
    0.8
    10
    8
    1.0
    10
    1 pieces
    6
    1.0
    14
    10
    1.5
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    0.77 €
    ( 0.92 € )
    Stock item: 1 working dayAvailable for same-day shipping
    0.44 €
    ( 0.52 € )
    6 working days
    0.59 €
    ( 0.70 € )
    6 working days
    0.81 €
    ( 0.96 € )
    6 working days
  • 1

    • More Information

    Basic information

    Ensat is an insert nut with high workability usable for resin, aluminum, etc., which easily cause female screw destruction with direct tap. It cuts material with the blade on its body, so no front tap is needed. Reinforcing female screws using Ensat enables aluminum and resin to be used for parts, which contributes to weight reduction. Ensat is an insert nut with high workability usable for resin, aluminum, etc., which easily causes female screws to be destroyed when directly tapped.
