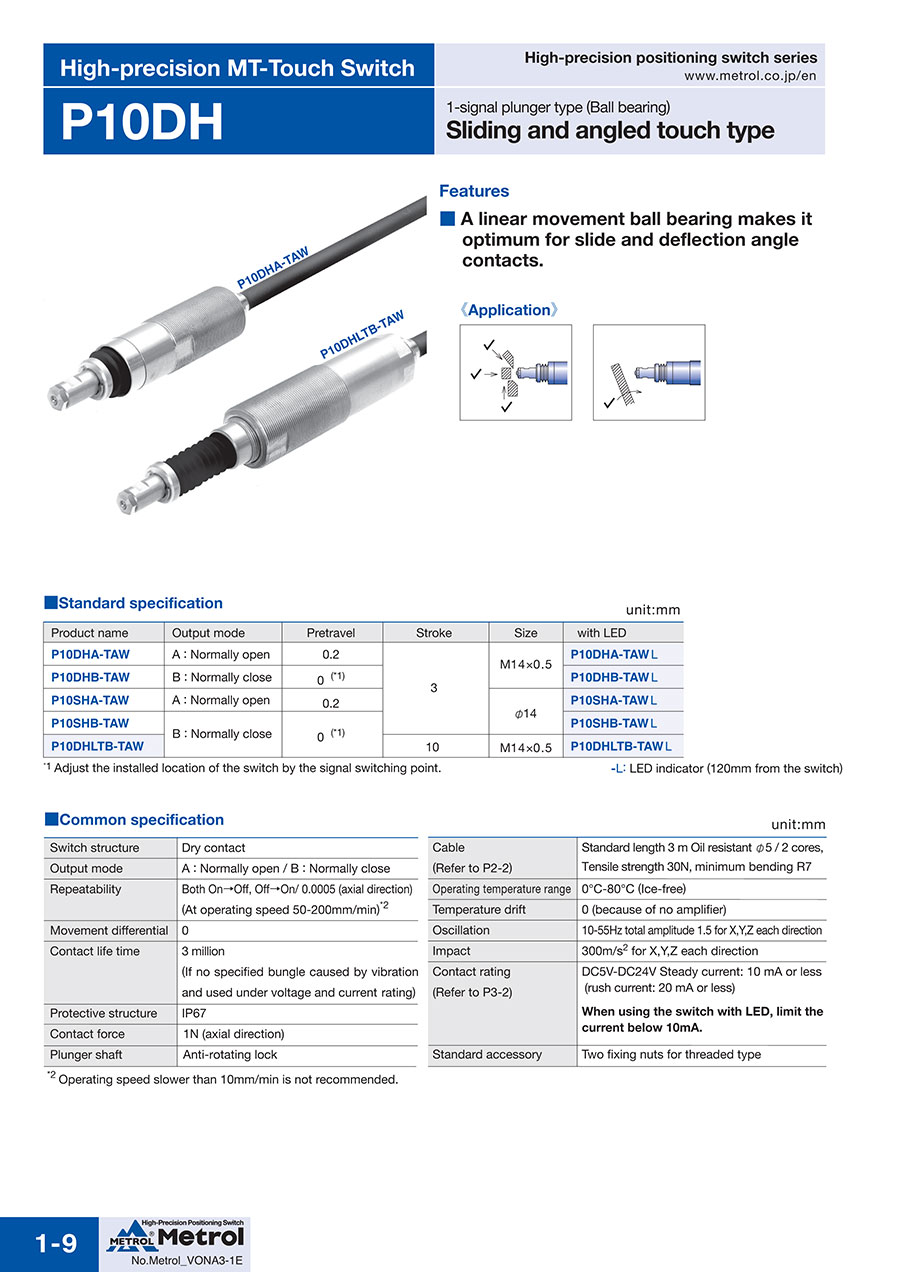

High Accuracy MT Touch Switch P10DH

High Accuracy MT Touch Switch P10DH

[Features]
A direct acting type ball bearing is used in the bearing which is applicable for sliding, deflection and off-set.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
P10DHA-TAW
P10DHA-TAWL
P10DHB-TAW
P10DHB-TAWL
P10DHLTB-TAW
P10DHLTB-TAWL
P10SHA-TAW
P10SHA-TAWL
P10SHB-TAW
P10SHB-TAWL
Part NumberStandard Unit PriceVolume DiscountShipping Days?RoHSContact Stroke S
(mm)
Contact Point Type Cylinder Part O.D. D
(mm)
Mounting Screw Nominal M Operating Temperature Range
(°C)
Switch Operating Point P
(mm)
Contact Force, Push Direction
(N)
Mechanical Life
(x 10K times)
Protection Structure LED

145.20 €

3 Days 103Contact type NO-M14×0.50~800.21300IP67No

149.57 €

3 Days 103Contact type NO-M14×0.50~800.21300IP67Provided

145.20 €

3 Days 10----------

149.30 €

7 Days 10----------

160.91 €

3 Days 10----------

165.01 €

7 Days 1010Contact type NC-M14×0.50~8001300IP67Provided

138.83 €

7 Days 10----------

143.19 €

7 Days 103Contact type NO14-0~800.21300IP67Provided

139.09 €

3 Days 103Contact type NC14-0~8001300IP67No

143.19 €

7 Days 103Contact type NC14-0~8001300IP67Provided

Loading...

  1. 1

Basic information

Type Pin stroke shape/Spring Plungers Type Main Body Shape Bolt Type Contact Section Type R Contact
Environment Waterproof Type Body Material Stainless Steel (EN 1.4305 Equiv.) Contact Material Carbide
Repeatability 0.0005mm Contact Part O.D. Sφ2
