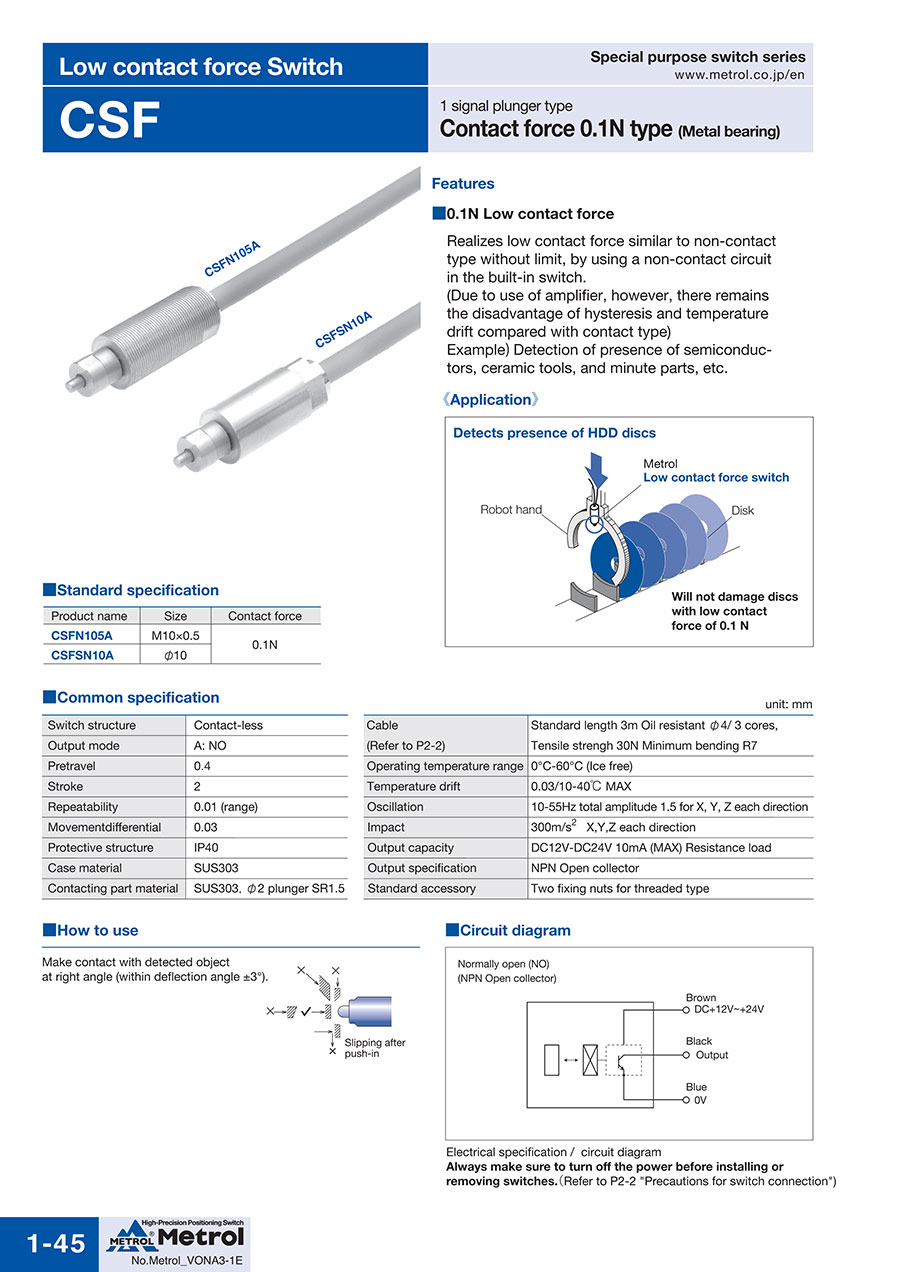

Switch with Low Contact Force CSF
- Volume Discount
[Features]
A low contact force of 0.1N.
A low contact force of 0.1N.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| CSFN105A-H6X |
| CSFSN10A-H6X |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Main Body Shape | Cylinder Part O.D. D (mm) | Mounting Screw Nominal M | |
|---|---|---|---|---|---|---|---|---|
44.52 € | 1 | Available | 5 Days | 10 | Bolt Type | - | M10×0.5 | |
40.52 € | 1 | Available | 5 Days | 10 | Cylindrical Type | 10 | - |
Loading...
Basic information
| Type | Pin stroke shape/Spring Plungers Type | Contact Section Type | R Contact | Environment | Standard |
|---|---|---|---|---|---|
| Body Material | Stainless Steel (EN 1.4305 Equiv.) | Contact Material | EN 1.4305 Equiv. | Contact Stroke S(mm) | 2 |
| Contact Point Type | Contact type NO | Operating Temperature Range(°C) | 0::60 | Switch Operating Point P(mm) | 0.4 |
| Repeatability | 0.01mm | Contact Force, Push Direction(N) | 0.1 | Contact Part O.D. | Ø2 |
| Protection Structure | IP40 | LED | No |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
