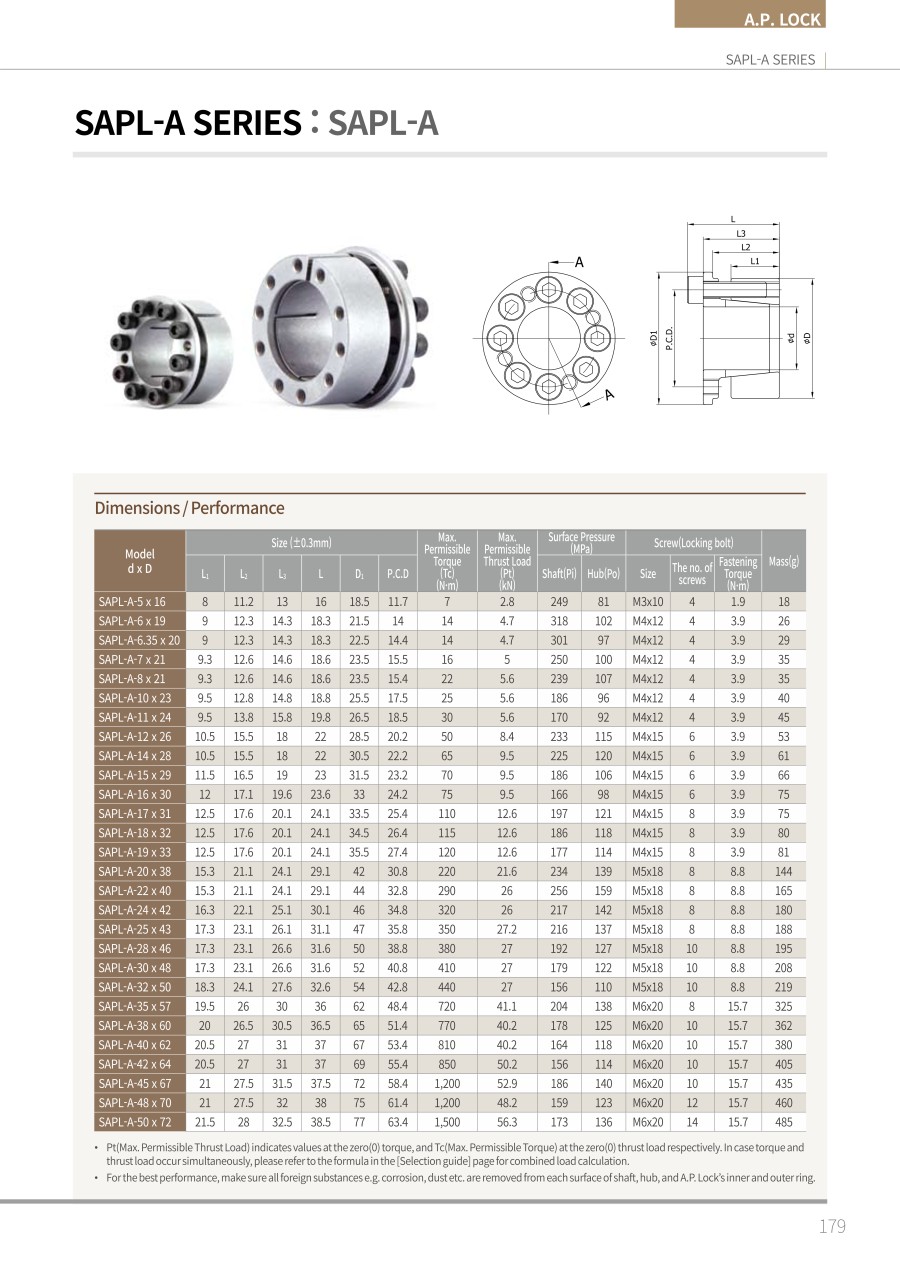

Keyless Bushing A.P.LOCK SAPL-A Series
· Self-centering function: Prevents minute Off-centering.
· Difference between internal diameter (d) and outer diameter (D) is slight, and can also be installed to small hubs with light pressure on its surface.
· Internal diameters 4.5ø to 40ø standardized.
· Has simple structure for easy assembly.
· Choose from stainless steel (vacuum environments) or electroless nickel plated products (corrosion proof) to suit the use environment
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Shaft Bore Dia. d (Ø) | Allowable Torque Range (N•m) | Hub Dia. D1 (Ø) | Allowable Torque (N•m) | |
|---|---|---|---|---|---|---|---|---|---|
19.79 € | 1 | 10 Days | 10 | 5 | 2.0 to 20.0 | 16 | 7 | ||
19.86 € | 1 | 10 Days | 10 | 6 | 2.0 to 20.0 | 19 | 14 | ||
19.89 € | 1 | 10 Days | 10 | 6.35 | 2.0 to 20.0 | 20 | 14 | ||
19.93 € | 1 | 5 Days | 10 | 8 | 20.1 to 50.0 | 21 | 22 | ||
19.97 € | 1 | 10 Days | 10 | 10 | 20.1 to 50.0 | 23 | 25 | ||
20.01 € | 1 | 10 Days | 10 | 11 | 20.1 to 50.0 | 24 | 30 | ||
21.10 € | 1 | 10 Days | 10 | 12 | 20.1 to 50.0 | 26 | 50 | ||
21.16 € | 1 | 10 Days | 10 | 14 | 50.1 to 70.0 | 28 | 65 | ||
21.21 € | 1 | 10 Days | 10 | 15 | 50.1 to 70.0 | 29 | 70 | ||
21.27 € | 1 | 10 Days | 10 | 16 | 70.1 to 100.0 | 30 | 75 | ||
22.30 € | 1 | 10 Days | 10 | 17 | 100.1 to 150.0 | 31 | 110 | ||
22.35 € | 1 | 5 Days | 10 | 18 | 100.1 to 150.0 | 32 | 115 | ||
23.39 € | 1 | 10 Days | 10 | 19 | 100.1 to 150.0 | 33 | 120 | ||
25.94 € | 1 | 10 Days | 10 | 20 | 200.1 to 300.0 | 38 | 220 | ||
26.11 € | 1 | 10 Days | 10 | 22 | 200.1 to 300.0 | 40 | 290 | ||
28.29 € | 1 | 10 Days | 10 | 24 | 300.1 to 500.0 | 42 | 320 | ||
28.35 € | 1 | 5 Days | 10 | 25 | 300.1 to 500.0 | 43 | 350 | ||
31.54 € | 1 | 10 Days | 10 | 28 | 300.1 to 500.0 | 46 | 380 | ||
32.68 € | 1 | 10 Days | 10 | 30 | 300.1 to 500.0 | 48 | 410 | ||
32.76 € | 1 | 10 Days | 10 | 32 | 300.1 to 500.0 | 50 | 440 | ||
35.65 € | 1 | 10 Days | 10 | 35 | 700.1 to 1000.0 | 57 | 720 | ||
36.97 € | 1 | 10 Days | 10 | 38 | 700.1 to 1000.0 | 60 | 770 | ||
38.14 € | 1 | 10 Days | 10 | 40 | 700.1 to 1000.0 | 62 | 810 | ||
34.83 € | 1 | 10 Days | 10 | 42 | 700.1 to 1000.0 | 64 | 850 | ||
35.92 € | 1 | 10 Days | 10 | 45 | 1000.1 to 3000.0 | 67 | 1200 | ||
40.40 € | 1 | 10 Days | 10 | 48 | 1000.1 to 3000.0 | 70 | 1200 | ||
43.15 € | 1 | 10 Days | 10 | 50 | 1000.1 to 3000.0 | 72 | 1500 |
Loading...
Basic information
| Type | Flange | Centering | Available | Body Material | EN 1.1191 Equiv. |
|---|---|---|---|---|---|
| Surface Treatment | NA | Tightening Structure | Single cone type | Tightening Method | Mechanical (Wedge Type) |
Configure
Basic Attributes
-
Shaft Bore Dia. d(Ø)
-
Allowable Torque Range(N•m)
-
Hub Dia. D1(Ø)
-
Allowable Torque(N•m)
-
Type
- SAPL-A
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- 5 Days or Less
- 10 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
