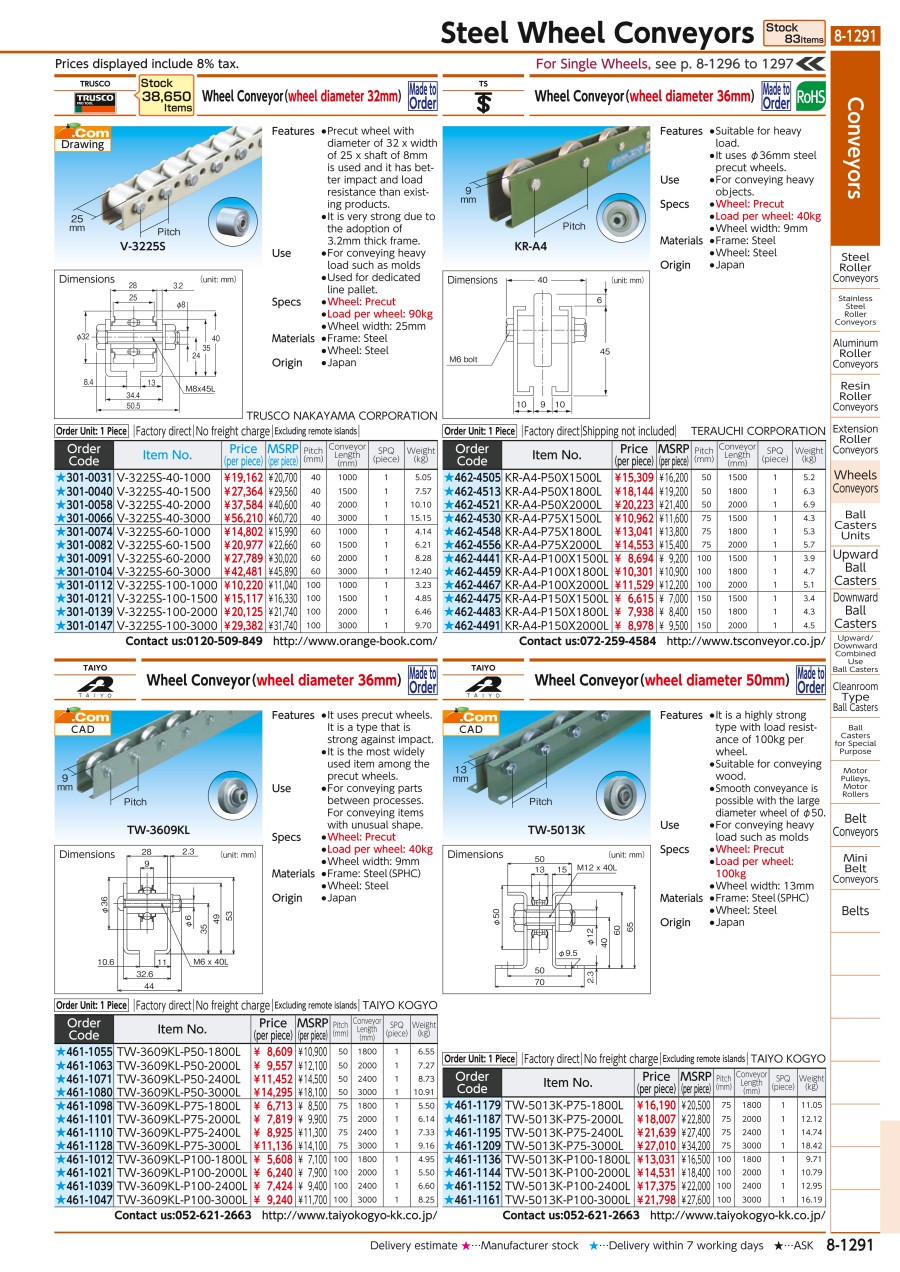

Wheel Conveyor (Machined, Wheel Diameter 32 mm)
· High strength due to use of 3.2 mm thick frame.
· For transporting heavy objects such as mold conveying.
· Used in dedicated pallet lines.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| V-3225S-40-1000 |
| V-3225S-40-1500 |
| V-3225S-40-2000 |
| V-3225S-40-3000 |
| V-3225S-60-1000 |
| V-3225S-60-1500 |
| V-3225S-60-2000 |
| V-3225S-60-3000 |
| V-3225S-100-1000 |
| V-3225S-100-1500 |
| V-3225S-100-2000 |
| V-3225S-100-3000 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel pitch (mm) | Length of Transmission (mm) | JAN Code | Order Code | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|
197.67 € | 1 | 12 Days | 40 | 1000 | 4989999692440 | 301-0031 | 5.05 | ||
275.73 € | 1 | 12 Days | 40 | 1500 | 4989999692457 | 301-0040 | 7.57 | ||
385.40 € | 1 | 12 Days | 40 | 2000 | 4989999692464 | 301-0058 | 10.10 | ||
576.40 € | 1 | 12 Days | 40 | 3000 | 4989999692471 | 301-0066 | 15.15 | ||
148.00 € | 1 | 12 Days | 60 | 1000 | 4989999692488 | 301-0074 | 4.14 | ||
209.25 € | 1 | 12 Days | 60 | 1500 | 4989999692495 | 301-0082 | 6.21 | ||
273.06 € | 1 | 12 Days | 60 | 2000 | 4989999692501 | 301-0091 | 8.28 | ||
422.68 € | 1 | 12 Days | 60 | 3000 | 4989999692518 | 301-0104 | 12.40 | ||
104.07 € | 1 | 12 Days | 100 | 1000 | 4989999692525 | 301-0112 | 3023 | ||
151.83 € | 1 | 12 Days | 100 | 1500 | 4989999692532 | 301-0121 | 4.85 | ||
199.65 € | 1 | 12 Days | 100 | 2000 | 4989999692549 | 301-0139 | 6.46 | ||
304.61 € | 1 | 12 Days | 100 | 3000 | 4989999692556 | 301-0147 | 9.70 |
Loading...
Basic information
| Conveyer Type | Straight | Wheel Surface Material | Steel (cutting-out) | Wheel width(mm) | 25 |
|---|---|---|---|---|---|
| Wheel Load Capacity(kgf) | 90 | Wheel outside diameter(mm) | 32 | Type | Wheel conveyor body |
| Application | Medium Load / Heavy Load | Wheel Surface Treatment | Trivalent Plating | Extrusion Type | Inward-curved Type |
| Frame Material | Steel (EN 1.0320 Equiv. (hot coiled)) | Frame Surface Treatment | Paint | External Height(mm) | 40 |
| Quantity per Package(unit) | 1 |
Configure
Basic Attributes
-
Wheel pitch(mm)
-
Length of Transmission(mm)
-
JAN Code
-
Order Code
-
Type
- V-3225S
Filter by standard shipping days
-
- All
- 12 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
