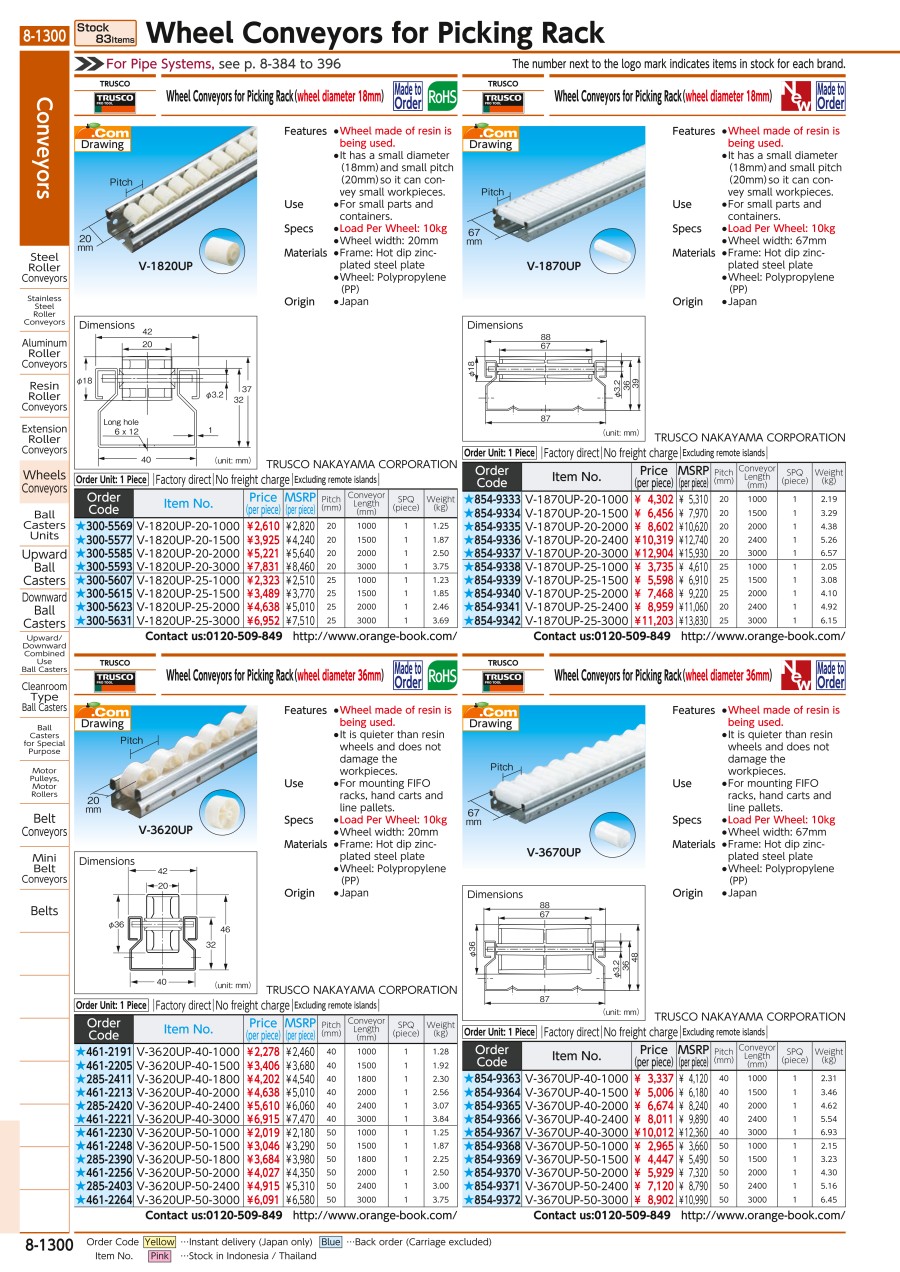

Wheel Conveyor for Picking Racks (Made of Resin, Wheel Diameter: 18 mm)
● For small parts and containers, etc.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| V-1820UP-20-1500 |
| V-1820UP-20-2000 |
| V-1820UP-20-3000 |
| V-1820UP-25-1000 |
| V-1820UP-25-1500 |
| V-1820UP-25-2000 |
| V-1820UP-25-3000 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Pitch (mm) | Machine Length (mm) | JAN Code | Order Code | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|
63.55 € | 1 | 12 Days | 20 | 1500 | 4989999682472 | 300-5577 | 1.87 | ||
83.01 € | 1 | 12 Days | 20 | 2000 | 4989999682489 | 300-5585 | 2.50 | ||
124.48 € | 1 | 12 Days | 20 | 3000 | 4989999682496 | 300-5593 | 3.75 | ||
38.75 € | 1 | 12 Days | 25 | 1000 | 4989999682502 | 300-5607 | 1.23 | ||
56.94 € | 1 | 12 Days | 25 | 1500 | 4989999691726 | 300-5615 | 1.85 | ||
75.94 € | 1 | 12 Days | 25 | 2000 | 4989999691733 | 300-5623 | 2.46 | ||
113.96 € | 1 | 12 Days | 25 | 3000 | 4989999691740 | 300-5631 | 3.69 |
Loading...
Basic information
| Wheel width(mm) | 20 | Wheel diameter(mm) | 18 | Quantity per Package(unit) | 1 |
|---|
Configure
Basic Attributes
-
Pitch(mm)
- 20
- 25
-
Machine Length(mm)
- 1000
- 1500
- 2000
- 3000
-
JAN Code
-
Order Code
-
Type
- V-1820UP
Filter by standard shipping days
-
- All
- 12 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
