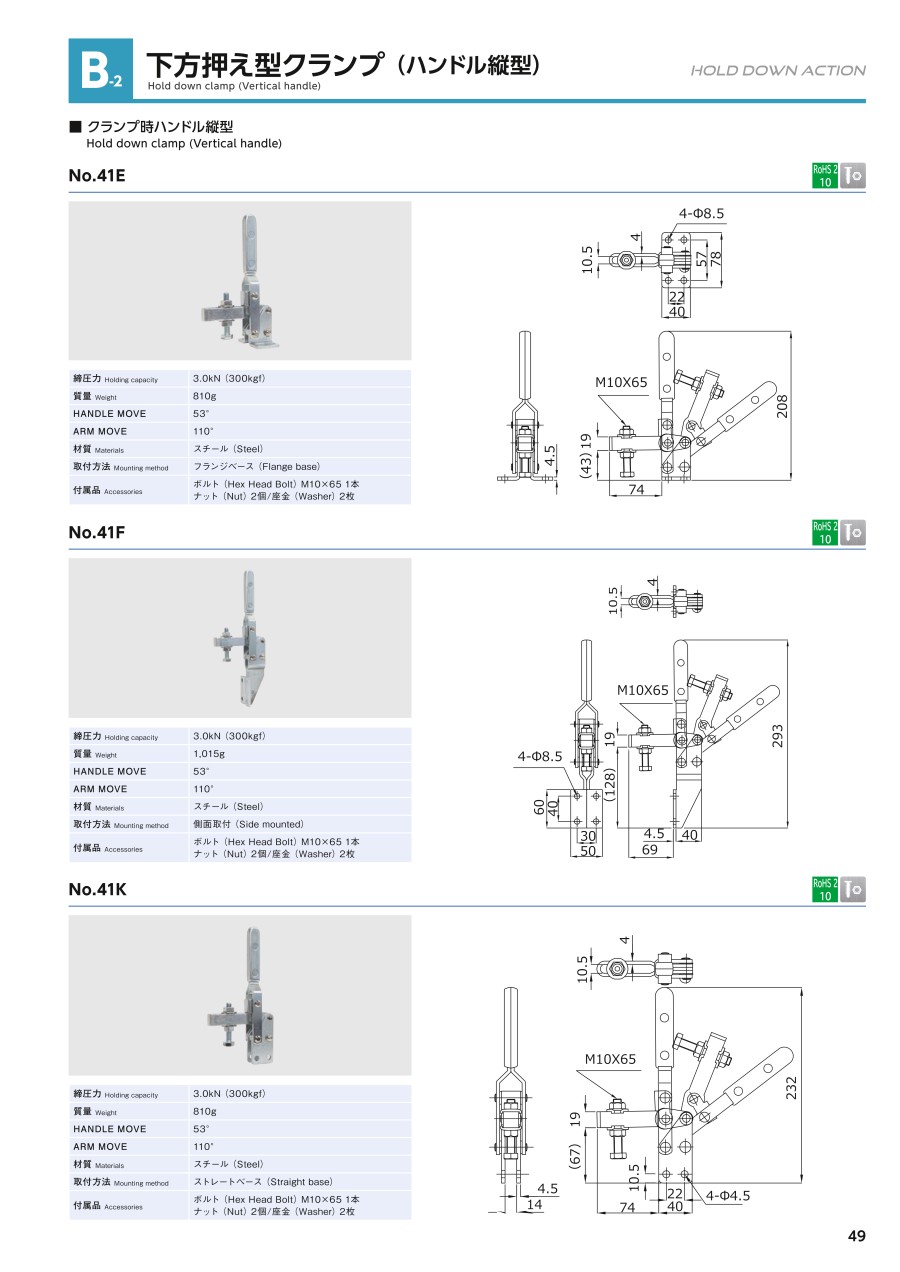

Hold-Down Clamp, No. 41K
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
Optimal for inspection, welding, assembly, and machining jigs.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
NO.41K
Basic information
| Attaching Method | Straight base | Tightening Force(N) | 3000 | Body Material | Steel |
|---|---|---|---|---|---|
| Clamp Screw | Adjustable | Clamp Screw Size | M10 | Clamp Screw Material | Steel |
| Category | Main Body | Arm Height(mm) | 75 | Arm Length(mm) | 74 |
| Handle Length | Standard | Clamp Force (Range)(N)(N) | 2260～ | Tip accessories | Steel Bolt |
| Tip Bolt Position Adjustment | Slide Adjustment |
This page is Hold-Down Clamp, No. 41K, part number NO.41K.
You can find the detail information about specifications and dimensions on part number NO.41K.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
