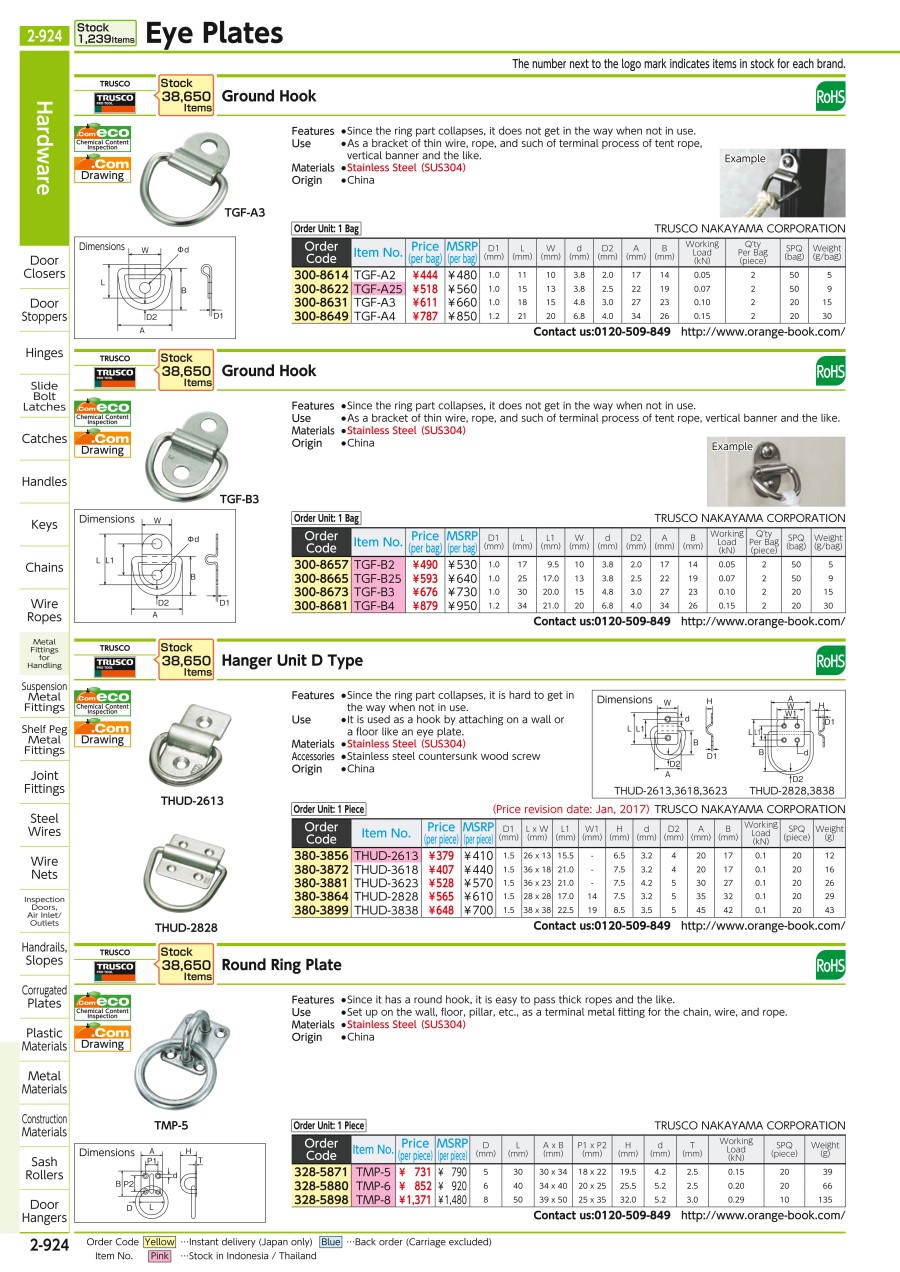

Hanger Unit D Type (Stainless Steel)
- Promotional pricing ends 30/11/2024
- Volume Discount
· Can be installed to a wall or flooring in a manner similar to an eye plate and used as a hook.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| THUD2613 |
| THUD2828 |
| THUD3618 |
| THUD3623 |
| THUD3838 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | A (mm) | B (mm) | D2 (mm) | d (mm) | L1 (mm) | W1 (mm) | H (mm) | L×W (mm) | JAN Code | Order Code | Mass (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
9.85 € | 1 | 6 Days | 20 | 17 | 4 | 3.2 | 15.5 | - | 6.5 | 26×13 | 4989999037531 | 380-3856 | 12 | ||
12.40 € | 1 | 6 Days | 35 | 32 | 5 | 3.2 | 17 | 14 | 7.5 | 28 x 28 | 4989999037548 | 380-3864 | 29 | ||
10.12 € | 1 | Available | 6 Days | 20 | 17 | 4 | 3.2 | 21 | - | 7.5 | 36×18 | 4989999037555 | 380-3872 | 16 | |
12.04 € | 1 | Available | 6 Days | 30 | 27 | 5 | 4.2 | 21 | - | 7.5 | 36×23 | 4989999037562 | 380-3881 | 26 | |
11.33 € 7.93 € | 1 | Available |
Same day
Stock | 45 | 42 | 5 | 3.5 | 22.5 | 19 | 8.5 | 38×38 | 4989999037579 | 380-3899 | 43 |
Loading...
Basic information
| Shape | Flex Hook | Hook Material | Stainless Steel (EN 1.4301 Equiv.) | Fixing Method | Screw fixture type |
|---|---|---|---|---|---|
| D1(mm) | 1.5 | Working Load(kN) | 0.1 | Quantity(piece) | 1 |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
A(mm)
-
B(mm)
-
D2(mm)
- 4
- 5
-
d(mm)
-
L1(mm)
- 15.5
- 17
- 21
- 22.5
-
W1(mm)
- 14
- 19
-
H(mm)
-
L×W(mm)
- 26×13
- 28 x 28
- 36×18
- 36×23
- 38×38
-
JAN Code
-
Order Code
-
Type
- THUD
Filter by standard shipping days
-
- All
- Same day
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
