Ball Lock Pins, self-locking, with adjustable clamping span / Stainless steel

Catalog

Part number:

Still undefined. 92 possible part numbers found.

Product information
Part number list
More Information
Catalog

Product information

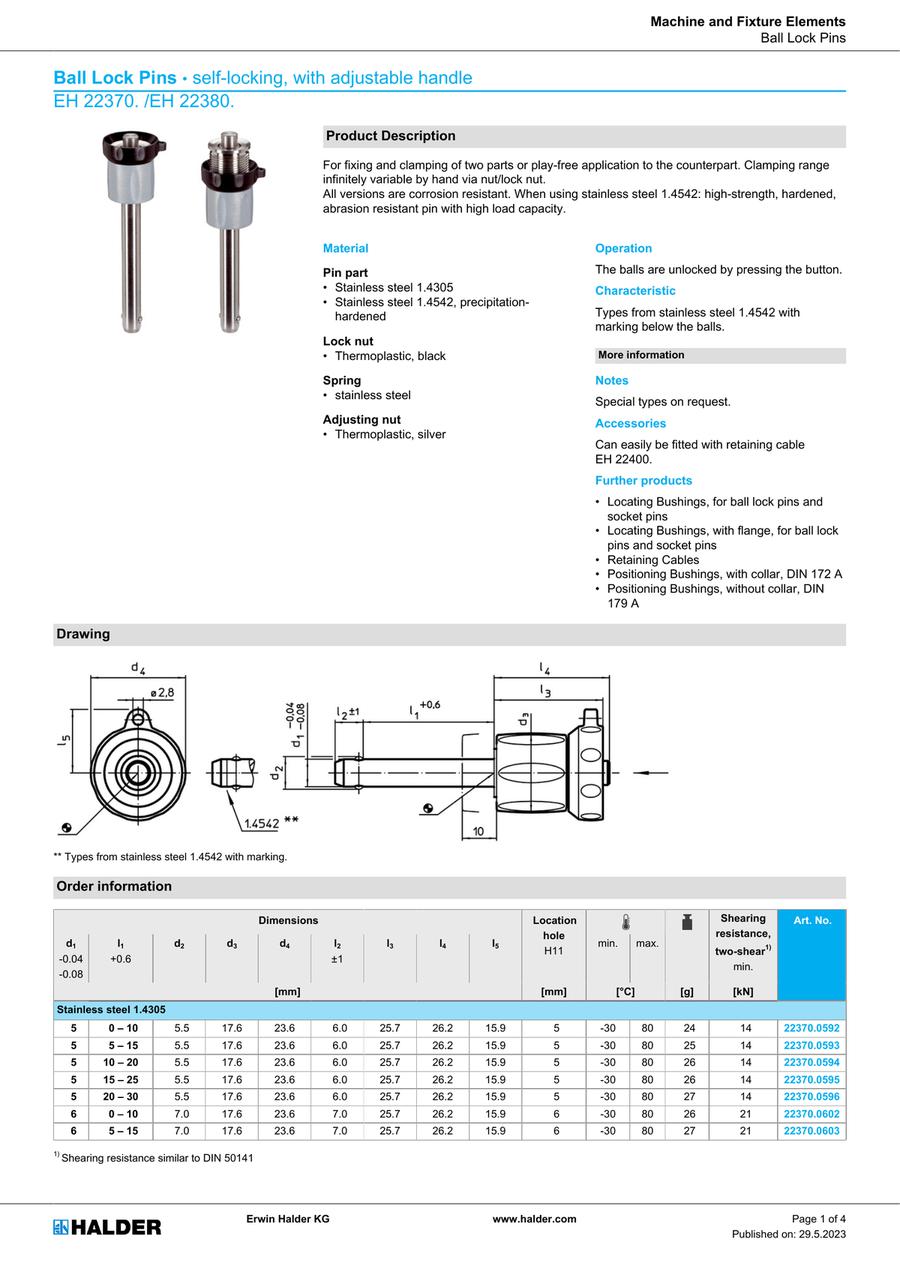

Ball Lock Pins • self-locking, with adjustable handle, EH 22370. / EH 22380.

Product Description

For fixing and clamping of two parts or play-free application to the counterpart. Clamping range infinitely variable by hand via nut/lock nut.
All versions are corrosion resistant. When using stainless steel 1.4542: high-strength, hardened, abrasion resistant pin with high load capacity.

Material

Pin part
• Stainless steel 1.4305
• Stainless steel 1.4542, precipitation-hardened
Lock nut
• Thermoplastic, black
Spring
• Stainless steel
Adjusting nut
• Thermoplastic, silver

Operation

The balls are unlocked by pressing the button.

Characteristic

Types from stainless steel 1.4542 with marking below the balls.

Notes

Special types on request.

Accessories

Can easily be fitted with retaining cable EH 22400.

Further products

• Locating Bushings, for ball lock pins and socket pins
• Locating Bushings, with flange, for ball lock pins and socket pins
• Retaining Cables
• Positioning Bushings, with collar, DIN 172 A
• Positioning Bushings, without collar, DIN 179 A

Drawing

** Types from stainless steel 1.4542 with marking.

Order Information

Dimensions									Location hole	Operating temperature range		Weight	Shearing resistance, two-shear¹⁾	Art. No.
d₁	l₁	d₂	d₃	d₄	l₂	l₃	l₄	l₅	H11	min.	max.		min.
-0.04 -0.08	+0.6				±1
[mm]									[mm]	[°C]		[g]	[kN]
Stainless steel 1.4305
5	0 – 10	5.5	17.6	23.6	6.0	25.7	26.2	15.9	5	-30	80	24	14	22370.0592
5	5 – 15	5.5	17.6	23.6	6.0	25.7	26.2	15.9	5	-30	80	25	14	22370.0593
5	10 – 20	5.5	17.6	23.6	6.0	25.7	26.2	15.9	5	-30	80	26	14	22370.0594
5	15 – 25	5.5	17.6	23.6	6.0	25.7	26.2	15.9	5	-30	80	26	14	22370.0595
5	20 – 30	5.5	17.6	23.6	6.0	25.7	26.2	15.9	5	-30	80	27	14	22370.0596
6	0 – 10	7.0	17.6	23.6	7.0	25.7	26.2	15.9	6	-30	80	26	21	22370.0602
6	5 – 15	7.0	17.6	23.6	7.0	25.7	26.2	15.9	6	-30	80	27	21	22370.0603
6	10 – 20	7.0	17.6	23.6	7.0	25.7	26.2	15.9	6	-30	80	27	21	22370.0604
6	15 – 25	7.0	17.6	23.6	7.0	25.7	26.2	15.9	6	-30	80	28	21	22370.0605
6	20 – 30	7.0	17.6	23.6	7.0	25.7	26.2	15.9	6	-30	80	27	21	22370.0606
6	25 – 35	7.0	17.6	23.6	7.0	25.7	26.2	15.9	6	-30	80	30	21	22370.0607
6	30 – 40	7.0	17.6	23.6	7.0	25.7	26.2	15.9	6	-30	80	31	21	22370.0608
6	35 – 45	7.0	17.6	23.6	7.0	25.7	26.2	15.9	6	-30	80	32	21	22370.0609
6	40 – 50	7.0	17.6	23.6	7.0	25.7	26.2	15.9	6	-30	80	33	21	22370.0610
8	10 – 20	9.5	23.0	27.6	8.2	31.2	33.1	18.0	8	-30	80	58	38	22370.0614
8	15 – 25	9.5	23.0	27.6	8.2	31.2	33.1	18.0	8	-30	80	60	38	22370.0615
8	20 – 30	9.5	23.0	27.6	8.2	31.2	33.1	18.0	8	-30	80	60	38	22370.0616
8	25 – 35	9.5	23.0	27.6	8.2	31.2	33.1	18.0	8	-30	80	62	38	22370.0617
8	30 – 40	9.5	23.0	27.6	8.2	31.2	33.1	18.0	8	-30	80	64	38	22370.0618
8	35 – 45	9.5	23.0	27.6	8.2	31.2	33.1	18.0	8	-30	80	65	38	22370.0619
8	40 – 50	9.5	23.0	27.6	8.2	31.2	33.1	18.0	8	-30	80	65	38	22370.0620
10	10 – 20	12.0	23.0	27.6	9.6	31.2	33.1	18.0	10	-30	80	65	60	22370.0624
10	15 – 25	12.0	23.0	27.6	9.6	31.2	33.1	18.0	10	-30	80	66	60	22370.0625
10	20 – 30	12.0	23.0	27.6	9.6	31.2	33.1	18.0	10	-30	80	69	60	22370.0626
10	25 – 35	12.0	23.0	27.6	9.6	31.2	33.1	18.0	10	-30	80	72	60	22370.0627
10	30 – 40	12.0	23.0	27.6	9.6	31.2	33.1	18.0	10	-30	80	75	60	22370.0628
10	35 – 45	12.0	23.0	27.6	9.6	31.2	33.1	18.0	10	-30	80	78	60	22370.0629
10	40 – 50	12.0	23.0	27.6	9.6	31.2	33.1	18.0	10	-30	80	80	60	22370.0630
10	50 – 60	12.0	23.0	27.6	9.6	31.2	33.1	18.0	10	-30	80	86	60	22370.0632
12	15 – 25	14.5	29.0	34.6	10.6	36.7	39.5	21.8	12	-30	80	121	87	22370.0635
12	20 – 30	14.5	29.0	34.6	10.6	36.7	39.5	21.8	12	-30	80	130	87	22370.0636
12	25 – 35	14.5	29.0	34.6	10.6	36.7	39.5	21.8	12	-30	80	130	87	22370.0637
12	30 – 40	14.5	29.0	34.6	10.6	36.7	39.5	21.8	12	-30	80	134	87	22370.0638
12	35 – 45	14.5	29.0	34.6	10.6	36.7	39.5	21.8	12	-30	80	138	87	22370.0639
12	40 – 50	14.5	29.0	34.6	10.6	36.7	39.5	21.8	12	-30	80	142	87	22370.0640
12	50 – 60	14.5	29.0	34.6	10.6	36.7	39.5	21.8	12	-30	80	150	87	22370.0642
12	60 – 70	14.5	29.0	34.6	10.6	36.7	39.5	21.8	12	-30	80	159	87	22370.0644
12	70 – 80	14.5	29.0	34.6	10.6	36.7	39.5	21.8	12	-30	80	167	87	22370.0646
16	20 – 30	19.0	29.0	34.6	14.0	36.7	39.5	21.8	16	-30	80	159	155	22370.0656
16	25 – 35	19.0	29.0	34.6	14.0	36.7	39.5	21.8	16	-30	80	165	155	22370.0657
16	30 – 40	19.0	29.0	34.6	14.0	36.7	39.5	21.8	16	-30	80	173	155	22370.0658
16	35 – 45	19.0	29.0	34.6	14.0	36.7	39.5	21.8	16	-30	80	180	155	22370.0659
16	40 – 50	19.0	29.0	34.6	14.0	36.7	39.5	21.8	16	-30	80	188	155	22370.0660
16	50 – 60	19.0	29.0	34.6	14.0	36.7	39.5	21.8	16	-30	80	203	155	22370.0662
16	60 – 70	19.0	29.0	34.6	14.0	36.7	39.5	21.8	16	-30	80	218	155	22370.0664
16	70 – 80	19.0	29.0	34.6	14.0	36.7	39.5	21.8	16	-30	80	234	155	22370.0666
Stainless steel 1.4542, precipitation-hardened
5	0 – 10	5.5	17.6	23.6	6.0	25.7	26.2	15.9	5	-30	80	23	24	22380.0592
5	5 – 15	5.5	17.6	23.6	6.0	25.7	26.2	15.9	5	-30	80	24	24	22380.0593
5	10 – 20	5.5	17.6	23.6	6.0	25.7	26.2	15.9	5	-30	80	25	24	22380.0594
5	15 – 25	5.5	17.6	23.6	6.0	25.7	26.2	15.9	5	-30	80	26	24	22380.0595
5	20 – 30	5.5	17.6	23.6	6.0	25.7	26.2	15.9	5	-30	80	28	24	22380.0596
6	0 – 10	7.0	17.6	23.6	7.0	25.7	26.2	15.9	6	-30	80	25	35	22380.0602
6	5 – 15	7.0	17.6	23.6	7.0	25.7	26.2	15.9	6	-30	80	26	35	22380.0603
6	10 – 20	7.0	17.6	23.6	7.0	25.7	26.2	15.9	6	-30	80	27	35	22380.0604
6	15 – 25	7.0	17.6	23.6	7.0	25.7	26.2	15.9	6	-30	80	28	35	22380.0605
6	20 – 30	7.0	17.6	23.6	7.0	25.7	26.2	15.9	6	-30	80	30	35	22380.0606
6	25 – 35	7.0	17.6	23.6	7.0	25.7	26.2	15.9	6	-30	80	30	35	22380.0607
6	30 – 40	7.0	17.6	23.6	7.0	25.7	26.2	15.9	6	-30	80	30	35	22380.0608
6	35 – 45	7.0	17.6	23.6	7.0	25.7	26.2	15.9	6	-30	80	32	35	22380.0609
6	40 – 50	7.0	17.6	23.6	7.0	25.7	26.2	15.9	6	-30	80	33	35	22380.0610
8	10 – 20	9.5	23.0	27.6	8.2	31.2	33.1	18.0	8	-30	80	56	63	22380.0614
8	15 – 25	9.5	23.0	27.6	8.2	31.2	33.1	18.0	8	-30	80	58	63	22380.0615
8	20 – 30	9.5	23.0	27.6	8.2	31.2	33.1	18.0	8	-30	80	60	63	22380.0616
8	25 – 35	9.5	23.0	27.6	8.2	31.2	33.1	18.0	8	-30	80	62	63	22380.0617
8	30 – 40	9.5	23.0	27.6	8.2	31.2	33.1	18.0	8	-30	80	63	63	22380.0618
8	35 – 45	9.5	23.0	27.6	8.2	31.2	33.1	18.0	8	-30	80	66	63	22380.0619
8	40 – 50	9.5	23.0	27.6	8.2	31.2	33.1	18.0	8	-30	80	67	63	22380.0620
10	10 – 20	12.0	23.0	27.6	9.6	31.2	33.1	18.0	10	-30	80	60	100	22380.0624
10	15 – 25	12.0	23.0	27.6	9.6	31.2	33.1	18.0	10	-30	80	65	100	22380.0625
10	20 – 30	12.0	23.0	27.6	9.6	31.2	33.1	18.0	10	-30	80	68	100	22380.0626
10	25 – 35	12.0	23.0	27.6	9.6	31.2	33.1	18.0	10	-30	80	71	100	22380.0627
10	30 – 40	12.0	23.0	27.6	9.6	31.2	33.1	18.0	10	-30	80	75	100	22380.0628
10	35 – 45	12.0	23.0	27.6	9.6	31.2	33.1	18.0	10	-30	80	75	100	22380.0629
10	40 – 50	12.0	23.0	27.6	9.6	31.2	33.1	18.0	10	-30	80	80	100	22380.0630
10	50 – 60	12.0	23.0	27.6	9.6	31.2	33.1	18.0	10	-30	80	90	100	22380.0632
12	15 – 25	14.5	29.0	34.6	10.6	36.7	39.5	21.8	12	-30	80	120	144	22380.0635
12	20 – 30	14.5	29.0	34.6	10.6	36.7	39.5	21.8	12	-30	80	125	144	22380.0636
12	25 – 35	14.5	29.0	34.6	10.6	36.7	39.5	21.8	12	-30	80	140	144	22380.0637
12	30 – 40	14.5	29.0	34.6	10.6	36.7	39.5	21.8	12	-30	80	133	144	22380.0638
12	35 – 45	14.5	29.0	34.6	10.6	36.7	39.5	21.8	12	-30	80	137	144	22380.0639
12	40 – 50	14.5	29.0	34.6	10.6	36.7	39.5	21.8	12	-30	80	141	144	22380.0640
12	50 – 60	14.5	29.0	34.6	10.6	36.7	39.5	21.8	12	-30	80	150	144	22380.0642
12	60 – 70	14.5	29.0	34.6	10.6	36.7	39.5	21.8	12	-30	80	158	144	22380.0644
12	70 – 80	14.5	29.0	34.6	10.6	36.7	39.5	21.8	12	-30	80	170	144	22380.0646
16	20 – 30	19.0	29.0	34.6	14.0	36.7	39.5	21.8	16	-30	80	156	257	22380.0656
16	25 – 35	19.0	29.0	34.6	14.0	36.7	39.5	21.8	16	-30	80	164	257	22380.0657
16	30 – 40	19.0	29.0	34.6	14.0	36.7	39.5	21.8	16	-30	80	171	257	22380.0658
16	35 – 45	19.0	29.0	34.6	14.0	36.7	39.5	21.8	16	-30	80	182	257	22380.0659
16	40 – 50	19.0	29.0	34.6	14.0	36.7	39.5	21.8	16	-30	80	186	257	22380.0660
16	50 – 60	19.0	29.0	34.6	14.0	36.7	39.5	21.8	16	-30	80	201	257	22380.0662
16	60 – 70	19.0	29.0	34.6	14.0	36.7	39.5	21.8	16	-30	80	217	257	22380.0664
16	70 – 80	19.0	29.0	34.6	14.0	36.7	39.5	21.8	16	-30	80	232	257	22380.0666

¹⁾ Shearing resistance similar to DIN 50141

Application Example

Part number list

Number of items

Part number

(mm)

l1 to

(mm)

l1 of

(mm)

Location hole

(mm)

Shearing resistance, double

(kN)

Material

RoHS?

Minimum order quantity

Data sheet	5	5.5	17.6	23.6	10	0	6	25.7	26.2	15.9	5	14	Stainless steel 1.4305	10	1 pieces
Data sheet	5	5.5	17.6	23.6	15	5	6	25.7	26.2	15.9	5	14	Stainless steel 1.4305	10	1 pieces
Data sheet	5	5.5	17.6	23.6	20	10	6	25.7	26.2	15.9	5	14	Stainless steel 1.4305	10	1 pieces
Data sheet	5	5.5	17.6	23.6	25	15	6	25.7	26.2	15.9	5	14	Stainless steel 1.4305	10	1 pieces
Data sheet	5	5.5	17.6	23.6	30	20	6	25.7	26.2	15.9	5	14	Stainless steel 1.4305	10	1 pieces
Data sheet	6	7	17.6	23.6	10	0	7	25.7	26.2	15.9	6	21	Stainless steel 1.4305	10	1 pieces
Data sheet	6	7	17.6	23.6	15	5	7	25.7	26.2	15.9	6	21	Stainless steel 1.4305	10	1 pieces
Data sheet	6	7	17.6	23.6	20	10	7	25.7	26.2	15.9	6	21	Stainless steel 1.4305	10	1 pieces
Data sheet	6	7	17.6	23.6	25	15	7	25.7	26.2	15.9	6	21	Stainless steel 1.4305	10	1 pieces
Data sheet	6	7	17.6	23.6	30	20	7	25.7	26.2	15.9	6	21	Stainless steel 1.4305	10	1 pieces
Data sheet	6	7	17.6	23.6	35	25	7	25.7	26.2	15.9	6	21	Stainless steel 1.4305	10	1 pieces
Data sheet	6	7	17.6	23.6	40	30	7	25.7	26.2	15.9	6	21	Stainless steel 1.4305	10	1 pieces
Data sheet	6	7	17.6	23.6	45	35	7	25.7	26.2	15.9	6	21	Stainless steel 1.4305	10	1 pieces
Data sheet	6	7	17.6	23.6	50	40	7	25.7	26.2	15.9	8	38	Stainless steel 1.4305	10	1 pieces
Data sheet	8	9.6	23	27.6	20	10	8.2	31.2	33.1	18	8	38	Stainless steel 1.4305	10	1 pieces
Data sheet	8	9.6	23	27.6	25	15	8.2	31.2	33.1	18	8	38	Stainless steel 1.4305	10	1 pieces
Data sheet	8	9.6	23	27.6	30	20	8.2	31.2	33.1	18	8	38	Stainless steel 1.4305	10	1 pieces
Data sheet	8	9.6	23	27.6	35	25	8.2	31.2	33.1	18	8	38	Stainless steel 1.4305	10	1 pieces
Data sheet	8	9.6	23	27.6	40	30	8.2	31.2	33.1	18	8	38	Stainless steel 1.4305	10	1 pieces
Data sheet	8	9.6	23	27.6	45	35	8.2	31.2	33.1	18	8	38	Stainless steel 1.4305	10	1 pieces
Data sheet	8	9.6	23	27.6	50	40	8.2	31.2	33.1	18	8	38	Stainless steel 1.4305	10	1 pieces
Data sheet	10	12	23	27.6	20	10	9.6	31.2	33.1	18	10	60	Stainless steel 1.4305	10	1 pieces
Data sheet	10	12	23	27.6	25	15	9.6	31.2	33.1	18	10	60	Stainless steel 1.4305	10	1 pieces
Data sheet	10	12	23	27.6	30	20	9.6	31.2	33.1	18	10	60	Stainless steel 1.4305	10	1 pieces
Data sheet	10	12	23	27.6	35	25	9.6	31.2	33.1	18	10	60	Stainless steel 1.4305	10	1 pieces
Data sheet	10	12	23	27.6	40	30	9.6	31.2	33.1	18	10	60	Stainless steel 1.4305	10	1 pieces
Data sheet	10	12	23	27.6	45	35	9.6	31.2	33.1	18	10	60	Stainless steel 1.4305	10	1 pieces
Data sheet	10	12	23	27.6	50	40	9.6	31.2	33.1	18	10	60	Stainless steel 1.4305	10	1 pieces
Data sheet	10	12	23	27.6	60	50	9.6	31.2	33.1	18	10	60	Stainless steel 1.4305	10	1 pieces
Data sheet	12	14.5	29	34.6	25	15	10.6	36.7	39.5	21.8	12	87	Stainless steel 1.4305	10	1 pieces
Data sheet	12	14.5	29	34.6	30	20	10.6	36.7	39.5	21.8	12	87	Stainless steel 1.4305	10	1 pieces
Data sheet	12	14.5	29	34.6	35	25	10.6	36.7	39.5	21.8	12	87	Stainless steel 1.4305	10	1 pieces
Data sheet	12	14.5	29	34.6	40	30	10.6	36.7	39.5	21.8	12	87	Stainless steel 1.4305	10	1 pieces
Data sheet	12	14.5	29	34.6	45	35	10.6	36.7	39.5	21.8	12	87	Stainless steel 1.4305	10	1 pieces
Data sheet	12	14.5	29	34.6	50	40	10.6	36.7	39.5	21.8	12	87	Stainless steel 1.4305	10	1 pieces
Data sheet	12	14.5	29	34.6	60	50	10.6	36.7	39.5	21.8	12	87	Stainless steel 1.4305	10	1 pieces
Data sheet	12	14.5	29	34.6	70	60	10.6	36.7	39.5	21.8	12	87	Stainless steel 1.4305	10	1 pieces
Data sheet	12	14.5	29	34.6	80	70	10.6	36.7	39.5	21.8	12	87	Stainless steel 1.4305	10	1 pieces
Data sheet	16	19	29	34.6	30	20	14	36.7	39.5	21.8	16	155	Stainless steel 1.4305	10	1 pieces
Data sheet	16	19	29	34.6	35	25	14	36.7	39.5	21.8	16	155	Stainless steel 1.4305	10	1 pieces
Data sheet	16	19	29	34.6	40	30	14	36.7	39.5	21.8	16	155	Stainless steel 1.4305	10	1 pieces
Data sheet	16	19	29	34.6	45	35	14	36.7	39.5	21.8	16	155	Stainless steel 1.4305	10	1 pieces
Data sheet	16	19	29	34.6	50	40	14	36.7	39.5	21.8	16	155	Stainless steel 1.4305	10	1 pieces
Data sheet	16	19	29	34.6	60	50	14	36.7	39.5	21.8	16	155	Stainless steel 1.4305	10	1 pieces
Data sheet	16	19	29	34.6	70	60	14	36.7	39.5	21.8	16	155	Stainless steel 1.4305	10	1 pieces
Data sheet	16	19	29	34.6	80	70	14	36.7	39.5	21.8	16	155	Stainless steel 1.4305	10	1 pieces
Data sheet	5	5.5	17.6	23.6	10	0	6	25.7	26.2	15.9	5	24	Stainless steel 1.4542, precipitation-hardened	10	1 pieces
Data sheet	5	5.5	17.6	23.6	15	5	6	25.7	26.2	15.9	5	24	Stainless steel 1.4542, precipitation-hardened	10	1 pieces
Data sheet	5	5.5	17.6	23.6	20	10	6	25.7	26.2	15.9	5	24	Stainless steel 1.4542, precipitation-hardened	10	1 pieces
Data sheet	5	5.5	17.6	23.6	25	15	6	25.7	26.2	15.9	5	24	Stainless steel 1.4542, precipitation-hardened	10	1 pieces
Data sheet	5	5.5	17.6	23.6	30	20	6	25.7	26.2	15.9	5	24	Stainless steel 1.4542, precipitation-hardened	10	1 pieces
Data sheet	6	7	17.6	23.6	10	0	7	25.7	26.2	15.9	6	35	Stainless steel 1.4542, precipitation-hardened	10	1 pieces
Data sheet	6	7	17.6	23.6	15	5	7	25.7	26.2	15.9	6	35	Stainless steel 1.4542, precipitation-hardened	10	1 pieces
Data sheet	6	7	17.6	23.6	20	10	7	25.7	26.2	15.9	6	35	Stainless steel 1.4542, precipitation-hardened	10	1 pieces
Data sheet	6	7	17.6	23.6	25	15	7	25.7	26.2	15.9	6	35	Stainless steel 1.4542, precipitation-hardened	10	1 pieces
Data sheet	6	7	17.6	23.6	30	20	7	25.7	26.2	15.9	6	35	Stainless steel 1.4542, precipitation-hardened	10	1 pieces
Data sheet	6	7	17.6	23.6	35	25	7	25.7	26.2	15.9	6	35	Stainless steel 1.4542, precipitation-hardened	10	1 pieces
Data sheet	6	7	17.6	23.6	40	30	7	25.7	26.2	15.9	6	35	Stainless steel 1.4542, precipitation-hardened	10	1 pieces
Data sheet	6	7	17.6	23.6	45	35	7	25.7	26.2	15.9	6	35	Stainless steel 1.4542, precipitation-hardened	10	1 pieces
Data sheet	6	7	17.6	23.6	50	40	7	25.7	26.2	15.9	8	63	Stainless steel 1.4542, precipitation-hardened	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

30.09 €17.75 € ( 21.12 € )	Stock item: 1 working dayAvailable for same-day shipping
30.09 € ( 35.81 € )	2 working days
30.09 € ( 35.81 € )	4 working days
30.09 € ( 35.81 € )	4 working days
30.98 € ( 36.87 € )	2 working days
30.22 € ( 35.96 € )	4 working days
30.22 € ( 35.96 € )	2 working days
30.22 €17.83 € ( 21.22 € )	Stock item: 1 working dayAvailable for same-day shipping
30.22 € ( 35.96 € )	Stock item: 1 working dayAvailable for same-day shipping
31.74 € ( 37.77 € )	4 working days
31.74 € ( 37.77 € )	4 working days
31.74 € ( 37.77 € )	2 working days
31.74 € ( 37.77 € )	2 working days
31.74 €18.73 € ( 22.29 € )	Stock item: 1 working dayAvailable for same-day shipping
32.02 €18.89 € ( 22.48 € )	Stock item: 1 working dayAvailable for same-day shipping
32.02 € ( 38.10 € )	2 working days
33.76 € ( 40.17 € )	2 working days
33.76 €19.92 € ( 23.70 € )	Stock item: 1 working dayAvailable for same-day shipping
33.76 € ( 40.17 € )	2 working days
33.76 €19.92 € ( 23.70 € )	Stock item: 1 working dayAvailable for same-day shipping
33.76 €19.92 € ( 23.70 € )	Stock item: 1 working dayAvailable for same-day shipping
39.55 € ( 47.06 € )	3 working days
39.55 € ( 47.06 € )	2 working days
40.59 € ( 48.30 € )	2 working days
40.59 € ( 48.30 € )	4 working days
40.59 €23.95 € ( 28.50 € )	Stock item: 1 working dayAvailable for same-day shipping
40.59 € ( 48.30 € )	2 working days
40.59 €23.95 € ( 28.50 € )	Stock item: 1 working dayAvailable for same-day shipping
41.94 € ( 49.91 € )	2 working days
41.58 €24.53 € ( 29.19 € )	Stock item: 1 working dayAvailable for same-day shipping
42.69 € ( 50.80 € )	4 working days
42.69 € ( 50.80 € )	2 working days
42.69 € ( 50.80 € )	2 working days
42.69 € ( 50.80 € )	4 working days
42.69 € ( 50.80 € )	2 working days
43.74 € ( 52.05 € )	2 working days
43.74 € ( 52.05 € )	2 working days
44.83 € ( 53.35 € )	2 working days
59.10 € ( 70.33 € )	3 working days
59.10 € ( 70.33 € )	4 working days
59.10 € ( 70.33 € )	4 working days
59.10 € ( 70.33 € )	4 working days
59.10 € ( 70.33 € )	4 working days
62.18 € ( 73.99 € )	4 working days
62.18 € ( 73.99 € )	3 working days
64.79 € ( 77.10 € )	3 working days
33.30 € ( 39.63 € )	4 working days
33.30 €19.65 € ( 23.38 € )	Stock item: 1 working dayAvailable for same-day shipping
33.30 € ( 39.63 € )	4 working days
33.30 € ( 39.63 € )	2 working days
34.45 € ( 41.00 € )	4 working days
33.59 € ( 39.97 € )	4 working days
33.59 € ( 39.97 € )	4 working days
33.59 €19.82 € ( 23.59 € )	Stock item: 1 working dayAvailable for same-day shipping
33.59 € ( 39.97 € )	4 working days
35.49 € ( 42.23 € )	4 working days
35.49 € ( 42.23 € )	4 working days
35.49 € ( 42.23 € )	4 working days
35.49 € ( 42.23 € )	4 working days
35.49 €20.94 € ( 24.92 € )	Stock item: 1 working dayAvailable for same-day shipping

Basic information

Basic information

Used for mounting or clamping workpieces, remove remaining play or slack via variable locknuts.
All versions are corrosion resistant. When using stainless steel 1.4542: high-strength, hardened, abrasion resistant pin with high load capacity.

Catalog

Products homepage

Catalog (2-page spread)

Ball Lock Pins, self-locking, with adjustable clamping span / Stainless steel

Product information

Ball Lock Pins • self-locking, with adjustable handle, EH 22370. / EH 22380.

Product Description

Material

Operation

Characteristic

Notes

Accessories

Further products

Drawing

Order Information

Application Example

Part number list

More Information

Basic information

Catalog
