Clamping Devices "actima"

Clamping Devices "actima"
  • Promotional pricing ends 30/11/2024

HALDER

HALDER

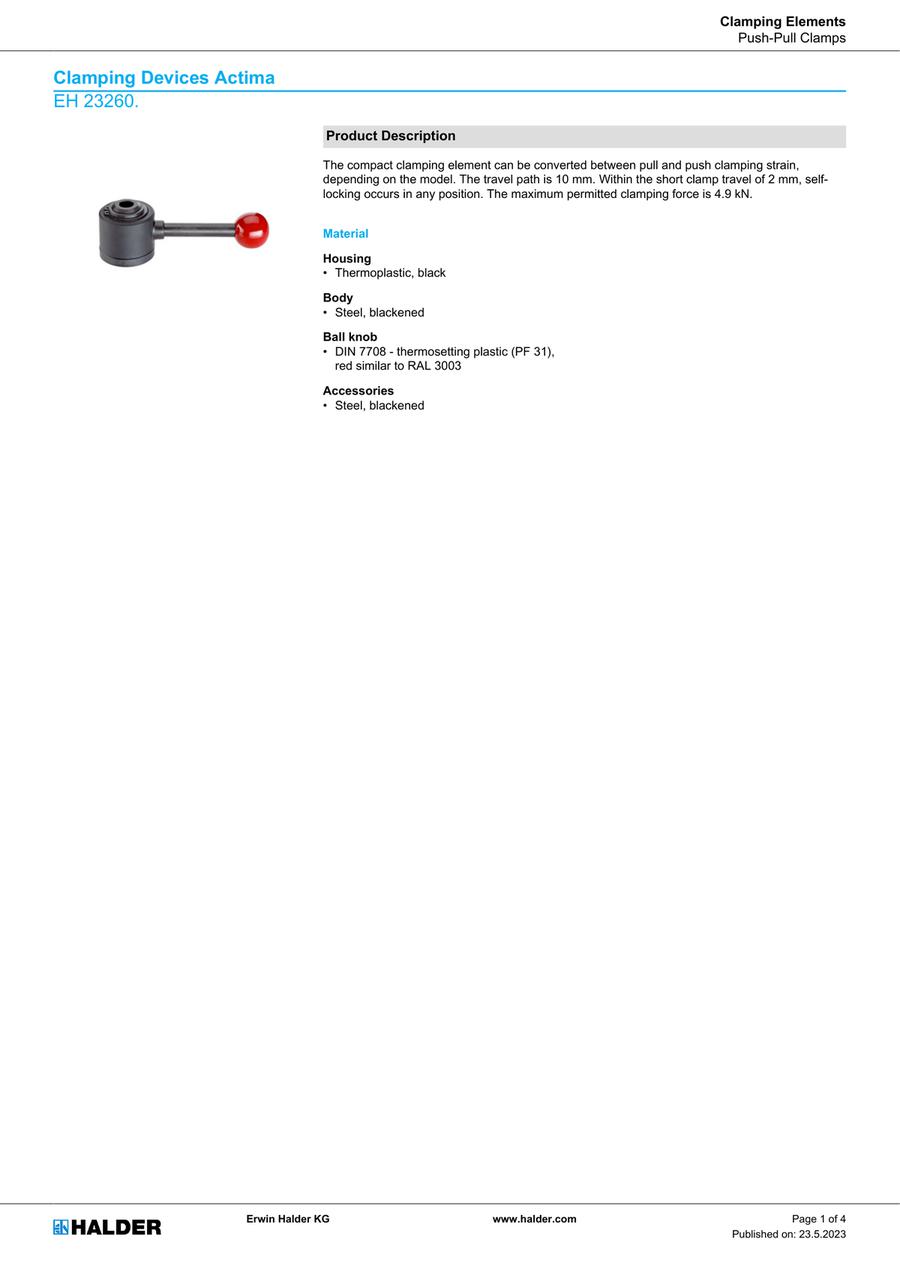

The compact clamping element can be converted between pull and push clamping strain, depending on the model. The travel path is 10 mm. Within the short clamp travel of 2 mm, self-locking occurs in any position. The maximum permitted clamping force is 4.9 kN.

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Clamping Devices Actima, EH 23260.

Product Description

The compact clamping element can be converted between pull and push clamping strain, depending on the model. The travel path is 10 mm. Within the short clamp travel of 2 mm, self-locking occurs in any position. The maximum permitted clamping force is 4.9 kN.

Material

Housing
• Thermoplastic, black
Body
• Steel, blackened
Ball knob
• DIN 7708 - thermosetting plastic (PF 31), red similar to RAL 3003
Accessories
• Steel, blackened

Drawing

Accessories

taper V-block disc

Order Information

Travel pathsClamping forceWeightArt. No.
 Clamping waymax.
[mm][mm][kN][g]
pull to right, with transverse axis in the bore
1024.975123260.0003
pull to left, with transverse axis in the bore
1024.974923260.0005
pull to right, with throughgoing bore
1024.974523260.0013
pull to left, with throughgoing bore
1024.975023260.0015
push to right, with transverse axis in the bore
1024.975123260.0002
push to left, with transverse axis in the bore
1024.974923260.0004
push to right, with throughgoing bore
1024.974523260.0012
push to left, with throughgoing bore
1024.975023260.0014

Accessories

 WeightArt. No.
 [g]
disc
27023260.0042
taper
8523260.0044
V-block
8223260.0046

Application Example

Data to be displayed
30
45
60
  1. 1
Part Number
23260.0002
23260.0003
23260.0004
23260.0005
23260.0012
23260.0013
23260.0014
23260.0015
23260.0042
23260.0044
23260.0046
Part NumberRelated to
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSType Clamping force
(kN) 		s Clamping way
(mm) 		Travel path
(mm) 		Housing Body Ball knob Accessories Drilling Type Weight
(g)

Data sheet

267.96 €

2 2 Days 10Push to right4.9210Thermoplastic, blackSteel, blackenedDIN 7708 - thermosetting plastic (PF 31), red similar to RAL 3003Steel, blackenedwith transverse axis in the bore751

Data sheet

267.96 €

1 2 Days -Pull to right4.9210Thermoplastic, blackSteel, blackenedDIN 7708 - thermosetting plastic (PF 31), red similar to RAL 3003Steel, blackenedwith transverse axis in the bore751

Data sheet

267.96 €

1 Same day

Stock

10Push to left4.9210Thermoplastic, blackSteel, blackenedDIN 7708 - thermosetting plastic (PF 31), red similar to RAL 3003Steel, blackenedwith transverse axis in the bore749

Data sheet

267.96 €

1 2 Days -Pull to left4.9210Thermoplastic, blackSteel, blackenedDIN 7708 - thermosetting plastic (PF 31), red similar to RAL 3003Steel, blackenedwith transverse axis in the bore749

Data sheet

288.60 €

1 2 Days 10Push to right4.9210Thermoplastic, blackSteel, blackenedDIN 7708 - thermosetting plastic (PF 31), red similar to RAL 3003Steel, blackenedwith throughgoing bore745

Data sheet

288.60 €

1 2 Days -Pull to right4.9210Thermoplastic, blackSteel, blackenedDIN 7708 - thermosetting plastic (PF 31), red similar to RAL 3003Steel, blackenedwith throughgoing bore745

Data sheet

288.60 €

1 Same day

Stock

10Push to left4.9210Thermoplastic, blackSteel, blackenedDIN 7708 - thermosetting plastic (PF 31), red similar to RAL 3003Steel, blackenedwith throughgoing bore750

Data sheet

288.60 €

1 2 Days -Pull to left4.9210Thermoplastic, blackSteel, blackenedDIN 7708 - thermosetting plastic (PF 31), red similar to RAL 3003Steel, blackenedwith throughgoing bore750
-

30.40 €

21.28 €

1 Same day

Stock

10Disc--------270
-

23.14 €

1 2 Days 10Taper--------85
-

33.52 €

1 2 Days 10V-block--------82
