Index Plungers, Mini Indexes, Basic Type
· Small index bolts are particularly well suited for mounting to thin objects.
· On items with hold mechanisms, pull out the knob and rotate it 30° to hold.
· Operating temperature range: -30 to 80°C.
· Mounting method: screw in the screw area on the main body, then lift up the knob and use the hexagonal section to tighten it.
· Increased screw size.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

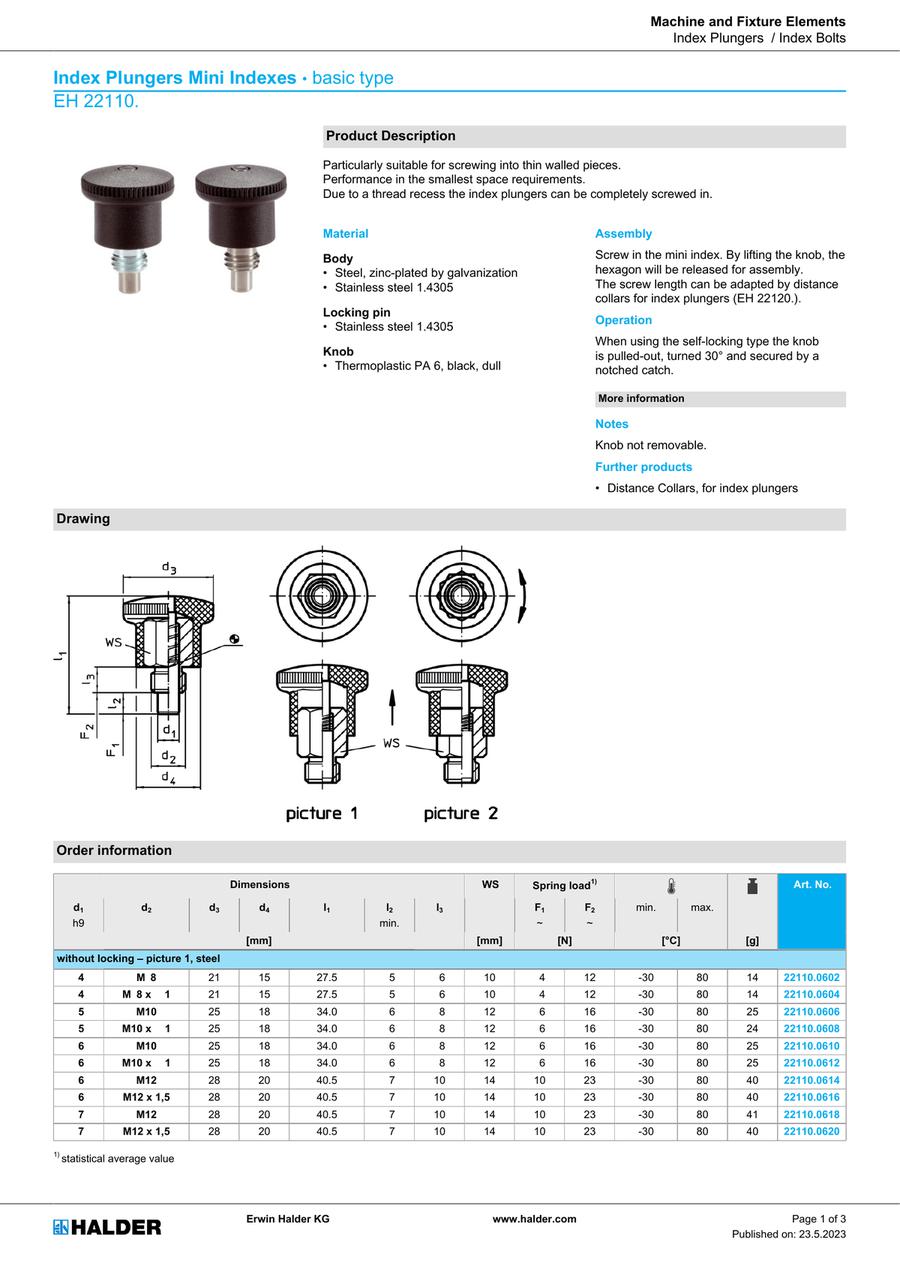

Index Plungers Mini Indexes • basic type, EH 22110.
Product Description
 | Particularly suitable for screwing into thin walled pieces. Performance in the smallest space requirements. Due to a thread recess the index plungers can be completely screwed in. |
Material
• Steel, zinc-plated by galvanization
• Stainless steel 1.4305
Locking pin
• Stainless steel 1.4305
Knob
• Thermoplastic PA 6, black, dull
Assembly
The screw length can be adapted by distance collars for index plungers (EH 22120.).
Operation
Notes
Further products
Drawing
Order Information
| Dimensions | WS | Spring load1) | Operating temperature range | Weight | Art. No. | ||||||||
| d1 | d2 | d3 | d4 | l1 | l2 | l3 | F1 | F2 | min. | max. | |||
| h9 | min. | ~ | ~ | ||||||||||
| [mm] | [mm] | [N] | [°C] | [g] | |||||||||
| without locking – picture 1, steel | |||||||||||||
| 4 | M 8 | 21 | 15 | 27.5 | 5 | 6 | 10 | 4 | 12 | -30 | 80 | 14 | 22110.0602 |
| 4 | M 8 x 1 | 21 | 15 | 27.5 | 5 | 6 | 10 | 4 | 12 | -30 | 80 | 14 | 22110.0604 |
| 5 | M10 | 25 | 18 | 34.0 | 6 | 8 | 12 | 6 | 16 | -30 | 80 | 25 | 22110.0606 |
| 5 | M10 x 1 | 25 | 18 | 34.0 | 6 | 8 | 12 | 6 | 16 | -30 | 80 | 24 | 22110.0608 |
| 6 | M10 | 25 | 18 | 34.0 | 6 | 8 | 12 | 6 | 16 | -30 | 80 | 25 | 22110.0610 |
| 6 | M10 x 1 | 25 | 18 | 34.0 | 6 | 8 | 12 | 6 | 16 | -30 | 80 | 25 | 22110.0612 |
| 6 | M12 | 28 | 20 | 40.5 | 7 | 10 | 14 | 10 | 23 | -30 | 80 | 40 | 22110.0614 |
| 6 | M12 x 1,5 | 28 | 20 | 40.5 | 7 | 10 | 14 | 10 | 23 | -30 | 80 | 40 | 22110.0616 |
| 7 | M12 | 28 | 20 | 40.5 | 7 | 10 | 14 | 10 | 23 | -30 | 80 | 41 | 22110.0618 |
| 7 | M12 x 1,5 | 28 | 20 | 40.5 | 7 | 10 | 14 | 10 | 23 | -30 | 80 | 40 | 22110.0620 |
| 8 | M16 | 33 | 23 | 47.5 | 10 | 12 | 17 | 11 | 35 | -30 | 80 | 66 | 22110.0622 |
| 8 | M16 x 1,5 | 33 | 23 | 47.5 | 10 | 12 | 17 | 11 | 35 | -30 | 80 | 67 | 22110.0624 |
| 10 | M16 | 33 | 23 | 47.5 | 10 | 12 | 17 | 11 | 35 | -30 | 80 | 68 | 22110.0626 |
| 10 | M16 x 1,5 | 33 | 23 | 47.5 | 10 | 12 | 17 | 11 | 35 | -30 | 80 | 69 | 22110.0628 |
| with locking – picture 2, steel | |||||||||||||
| 4 | M 8 | 21 | 15 | 27.5 | 5 | 6 | 10 | 4 | 12 | -30 | 80 | 14 | 22110.0630 |
| 4 | M 8 x 1 | 21 | 15 | 27.5 | 5 | 6 | 10 | 4 | 12 | -30 | 80 | 13 | 22110.0632 |
| 5 | M10 | 25 | 18 | 34.0 | 6 | 8 | 12 | 6 | 16 | -30 | 80 | 23 | 22110.0634 |
| 5 | M10 x 1 | 25 | 18 | 34.0 | 6 | 8 | 12 | 6 | 16 | -30 | 80 | 23 | 22110.0636 |
| 6 | M10 | 25 | 18 | 34.0 | 6 | 8 | 12 | 6 | 16 | -30 | 80 | 24 | 22110.0638 |
| 6 | M10 x 1 | 25 | 18 | 34.0 | 6 | 8 | 12 | 6 | 16 | -30 | 80 | 25 | 22110.0640 |
| 6 | M12 | 28 | 20 | 40.5 | 7 | 10 | 14 | 10 | 23 | -30 | 80 | 38 | 22110.0642 |
| 6 | M12 x 1,5 | 28 | 20 | 40.5 | 7 | 10 | 14 | 10 | 23 | -30 | 80 | 39 | 22110.0644 |
| 7 | M12 | 28 | 20 | 40.5 | 7 | 10 | 14 | 10 | 23 | -30 | 80 | 39 | 22110.0646 |
| 7 | M12 x 1,5 | 28 | 20 | 40.5 | 7 | 10 | 14 | 10 | 23 | -30 | 80 | 39 | 22110.0648 |
| 8 | M16 | 33 | 23 | 47.5 | 10 | 12 | 17 | 11 | 35 | -30 | 80 | 64 | 22110.0650 |
| 8 | M16 x 1,5 | 33 | 23 | 47.5 | 10 | 12 | 17 | 11 | 35 | -30 | 80 | 65 | 22110.0652 |
| 10 | M16 | 33 | 23 | 47.5 | 10 | 12 | 17 | 11 | 35 | -30 | 80 | 66 | 22110.0654 |
| 10 | M16 x 1,5 | 33 | 23 | 47.5 | 10 | 12 | 17 | 11 | 35 | -30 | 80 | 67 | 22110.0656 |
| without locking – picture 1, stainless steel | |||||||||||||
| 4 | M 8 | 21 | 15 | 27.5 | 5 | 6 | 10 | 4 | 12 | -30 | 80 | 14 | 22110.0702 |
| 4 | M 8 x 1 | 21 | 15 | 27.5 | 5 | 6 | 10 | 4 | 12 | -30 | 80 | 14 | 22110.0704 |
| 5 | M10 | 25 | 18 | 34.0 | 6 | 8 | 12 | 6 | 16 | -30 | 80 | 24 | 22110.0706 |
| 5 | M10 x 1 | 25 | 18 | 34.0 | 6 | 8 | 12 | 6 | 16 | -30 | 80 | 25 | 22110.0708 |
| 6 | M10 | 25 | 18 | 34.0 | 6 | 8 | 12 | 6 | 16 | -30 | 80 | 24 | 22110.0710 |
| 6 | M10 x 1 | 25 | 18 | 34.0 | 6 | 8 | 12 | 6 | 16 | -30 | 80 | 25 | 22110.0712 |
| 6 | M12 | 28 | 20 | 40.5 | 7 | 10 | 14 | 10 | 23 | -30 | 80 | 40 | 22110.0714 |
| 6 | M12 x 1,5 | 28 | 20 | 40.5 | 7 | 10 | 14 | 10 | 23 | -30 | 80 | 40 | 22110.0716 |
| 7 | M12 | 28 | 20 | 40.5 | 7 | 10 | 14 | 10 | 23 | -30 | 80 | 40 | 22110.0718 |
| 7 | M12 x 1,5 | 28 | 20 | 40.5 | 7 | 10 | 14 | 10 | 23 | -30 | 80 | 41 | 22110.0720 |
| 8 | M16 | 33 | 23 | 47.5 | 10 | 12 | 17 | 11 | 35 | -30 | 80 | 67 | 22110.0722 |
| 8 | M16 x 1,5 | 33 | 23 | 47.5 | 10 | 12 | 17 | 11 | 35 | -30 | 80 | 67 | 22110.0724 |
| 10 | M16 | 33 | 23 | 47.5 | 10 | 12 | 17 | 11 | 35 | -30 | 80 | 68 | 22110.0726 |
| 10 | M16 x 1,5 | 33 | 23 | 47.5 | 10 | 12 | 17 | 11 | 35 | -30 | 80 | 69 | 22110.0728 |
| with locking – picture 2, stainless steel | |||||||||||||
| 4 | M 8 | 21 | 15 | 27.5 | 5 | 6 | 10 | 4 | 12 | -30 | 80 | 13 | 22110.0730 |
| 4 | M 8 x 1 | 21 | 15 | 27.5 | 5 | 6 | 10 | 4 | 12 | -30 | 80 | 14 | 22110.0732 |
| 5 | M10 | 25 | 18 | 34.0 | 6 | 8 | 12 | 6 | 16 | -30 | 80 | 23 | 22110.0734 |
| 5 | M10 x 1 | 25 | 18 | 34.0 | 6 | 8 | 12 | 6 | 16 | -30 | 80 | 24 | 22110.0736 |
| 6 | M10 | 25 | 18 | 34.0 | 6 | 8 | 12 | 6 | 16 | -30 | 80 | 24 | 22110.0738 |
| 6 | M10 x 1 | 25 | 18 | 34.0 | 6 | 8 | 12 | 6 | 16 | -30 | 80 | 31 | 22110.0740 |
| 6 | M12 | 28 | 20 | 40.5 | 7 | 10 | 14 | 10 | 23 | -30 | 80 | 38 | 22110.0742 |
| 6 | M12 x 1,5 | 28 | 20 | 40.5 | 7 | 10 | 14 | 10 | 23 | -30 | 80 | 39 | 22110.0744 |
| 7 | M12 | 28 | 20 | 40.5 | 7 | 10 | 14 | 10 | 23 | -30 | 80 | 39 | 22110.0746 |
| 7 | M12 x 1,5 | 28 | 20 | 40.5 | 7 | 10 | 14 | 10 | 23 | -30 | 80 | 39 | 22110.0748 |
| 8 | M16 | 33 | 23 | 47.5 | 10 | 12 | 17 | 11 | 35 | -30 | 80 | 64 | 22110.0750 |
| 8 | M16 x 1,5 | 33 | 23 | 47.5 | 10 | 12 | 17 | 11 | 35 | -30 | 80 | 65 | 22110.0752 |
| 10 | M16 | 33 | 23 | 47.5 | 10 | 12 | 17 | 11 | 35 | -30 | 80 | 66 | 22110.0754 |
| 10 | M16 x 1,5 | 33 | 23 | 47.5 | 10 | 12 | 17 | 11 | 35 | -30 | 80 | 68 | 22110.0756 |
Application Example
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Main Body Surface Treatment | Tip O.D. d (Ø) | d2 (mm) | d3 (mm) | d4 (mm) | l1 (mm) | l2 (mm) | l3 (mm) | F1 (N) | F2 (N) | s (mm) | Stroke (mm) | WS (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4.70 € | 1 |
Same day
Stock | 10 | Zinc Plating | 4 | M8 | 21 | 15 | 27.5 | 5 | 6 | ~ 4 | ~ 12 | - | 5 | 10 | |||
4.70 € | 1 | 2 Days | 10 | Zinc Plating | 4 | M8 x 1 | 21 | 15 | 27.5 | 5 | 6 | ~ 4 | ~ 12 | - | 5 | 10 | |||
5.56 € | 1 | 3 Days | 10 | Zinc Plating | 5 | M10 | 25 | 18 | 34 | 6 | 8 | ~ 6 | ~ 16 | - | 6 | 12 | |||
5.56 € | 1 | 2 Days | 10 | Zinc Plating | 5 | M10 x 1 | 25 | 18 | 34 | 6 | 8 | ~ 6 | ~ 16 | - | 6 | 12 | |||
5.56 € | 1 | 2 Days | 10 | Zinc Plating | 6 | M10 | 25 | 18 | 34 | 6 | 8 | ~ 6 | ~ 16 | - | 6 | 12 | |||
5.56 € | 1 | 2 Days | 10 | Zinc Plating | 6 | M10 x 1 | 25 | 18 | 34 | 6 | 8 | ~ 6 | ~ 16 | - | 6 | 12 | |||
5.78 € | 1 | 2 Days | 10 | Zinc Plating | 6 | M12 | 28 | 20 | 40.5 | 7 | 10 | ~ 10 | ~ 23 | - | 7 | 14 | |||
5.78 € | 1 | 2 Days | 10 | Zinc Plating | 6 | M12 x 1,5 | 28 | 20 | 40.5 | 7 | 10 | ~ 10 | ~ 23 | - | 7 | 14 | |||
6.38 € | 1 | 2 Days | 10 | Zinc Plating | 7 | M12 | 28 | 20 | 40.5 | 7 | 10 | ~ 10 | ~ 23 | - | 7 | 14 | |||
6.38 € | 1 | 2 Days | 10 | Zinc Plating | 7 | M12 x 1,5 | 28 | 20 | 40.5 | 7 | 10 | ~ 10 | ~ 23 | - | 7 | 14 | |||
8.06 € | 1 |
Same day
Stock | 10 | Zinc Plating | 8 | M16 | 33 | 23 | 47.5 | 10 | 12 | ~ 11 | ~ 35 | - | 10 | 17 | |||
8.06 € | 1 | 2 Days | 10 | Zinc Plating | 8 | M16 x 1,5 | 33 | 23 | 47.5 | 10 | 12 | ~ 11 | ~ 35 | - | 10 | 17 | |||
8.06 € | 1 |
Same day
Stock | 10 | Zinc Plating | 10 | M16 | 33 | 23 | 47.5 | 10 | 12 | ~ 11 | ~ 35 | - | 10 | 17 | |||
8.06 € | 1 |
Same day
Stock | 10 | Zinc Plating | 10 | M16 x 1,5 | 33 | 23 | 47.5 | 10 | 12 | ~ 11 | ~ 35 | - | 10 | 17 | |||
4.70 € | 1 | 2 Days | 10 | Zinc Plating | 4 | M8 | 21 | 15 | 27.5 | 5 | 6 | ~ 4 | ~ 12 | - | 5 | 10 | |||
4.70 € | 1 |
Same day
Stock | 10 | Zinc Plating | 4 | M8 x 1 | 21 | 15 | 27.5 | 5 | 6 | ~ 4 | ~ 12 | - | 5 | 10 | |||
5.50 € | 1 | 2 Days | 10 | Zinc Plating | 5 | M10 | 25 | 18 | 34 | 6 | 8 | ~ 6 | ~ 16 | - | 6 | 12 | |||
5.50 € | 1 |
Same day
Stock | 10 | Zinc Plating | 5 | M10 x 1 | 25 | 18 | 34 | 6 | 8 | ~ 6 | ~ 16 | - | 6 | 12 | |||
5.50 € | 1 | 2 Days | 10 | Zinc Plating | 6 | M10 | 25 | 18 | 34 | 6 | 8 | ~ 6 | ~ 16 | - | 6 | 12 | |||
5.50 € | 1 | 2 Days | 10 | Zinc Plating | 6 | M10 x 1 | 25 | 18 | 34 | 6 | 8 | ~ 6 | ~ 16 | - | 6 | 12 | |||
5.78 € | 1 |
Same day
Stock | 10 | Zinc Plating | 6 | M12 | 28 | 20 | 40.5 | 7 | 10 | ~ 10 | ~ 23 | - | 7 | 14 | |||
5.78 € | 1 | 2 Days | 10 | Zinc Plating | 6 | M12 x 1,5 | 28 | 20 | 40.5 | 7 | 10 | ~ 10 | ~ 23 | - | 7 | 14 | |||
6.38 € | 1 |
Same day
Stock | 10 | Zinc Plating | 7 | M12 | 28 | 20 | 40.5 | 7 | 10 | ~ 10 | ~ 23 | - | 7 | 14 | |||
6.38 € | 1 |
Same day
Stock | 10 | Zinc Plating | 7 | M12 x 1,5 | 28 | 20 | 40.5 | 7 | 10 | ~ 10 | ~ 23 | - | 7 | 14 | |||
8.06 € | 1 |
Same day
Stock | 10 | Zinc Plating | 8 | M16 | 33 | 23 | 47.5 | 10 | 12 | ~ 11 | ~ 35 | - | 10 | 17 | |||
8.06 € | 1 | 2 Days | 10 | Zinc Plating | 8 | M16 x 1,5 | 33 | 23 | 47.5 | 10 | 12 | ~ 11 | ~ 35 | - | 10 | 17 | |||
8.06 € | 1 |
Same day
Stock | 10 | Zinc Plating | 10 | M16 | 33 | 23 | 47.5 | 10 | 12 | ~ 11 | ~ 35 | - | 10 | 17 | |||
8.06 € | 1 |
Same day
Stock | 10 | Zinc Plating | 10 | M16 x 1,5 | 33 | 23 | 47.5 | 10 | 12 | ~ 11 | ~ 35 | - | 10 | 17 | |||
5.66 € | 1 | 2 Days | 10 | - | 4 | M8 | 21 | 15 | 27.5 | 5 | 6 | ~ 4 | ~ 12 | - | 5 | 10 | |||
5.66 € | 1 |
Same day
Stock | 10 | - | 4 | M8 x 1 | 21 | 15 | 27.5 | 5 | 6 | ~ 4 | ~ 12 | - | 5 | 10 | |||
6.49 € | 4 | 2 Days | 10 | - | 5 | M10 | 25 | 18 | 34 | 6 | 8 | ~ 6 | ~ 16 | - | 6 | 12 | |||
6.49 € | 1 | 2 Days | 10 | - | 5 | M10 x 1 | 25 | 18 | 34 | 6 | 8 | ~ 6 | ~ 16 | - | 6 | 12 | |||
6.49 € | 1 | 3 Days | 10 | - | 6 | M10 | 25 | 18 | 34 | 6 | 8 | ~ 6 | ~ 16 | - | 6 | 12 | |||
6.49 € | 1 | 2 Days | 10 | - | 6 | M10 x 1 | 25 | 18 | 34 | 6 | 8 | ~ 6 | ~ 16 | - | 6 | 12 | |||
7.66 € | 1 |
Same day
Stock | 10 | - | 6 | M12 | 28 | 20 | 40.5 | 7 | 10 | ~ 10 | ~ 23 | - | 7 | 14 | |||
7.66 € | 1 | 2 Days | 10 | - | 6 | M12 x 1,5 | 28 | 20 | 40.5 | 7 | 10 | ~ 10 | ~ 23 | - | 7 | 14 | |||
7.95 € | 1 | 2 Days | 10 | - | 7 | M12 | 28 | 20 | 40.5 | 7 | 10 | ~ 10 | ~ 23 | - | 7 | 14 | |||
7.95 € | 1 |
Same day
Stock | 10 | - | 7 | M12 x 1,5 | 28 | 20 | 40.5 | 7 | 10 | ~ 10 | ~ 23 | - | 7 | 14 | |||
10.69 € | 1 | 2 Days | 10 | - | 8 | M16 | 33 | 23 | 47.5 | 10 | 12 | ~ 11 | ~ 35 | - | 10 | 17 | |||
10.69 € | 1 |
Same day
Stock | 10 | - | 8 | M16 x 1,5 | 33 | 23 | 47.5 | 10 | 12 | ~ 11 | ~ 35 | 1 - 5 | 10 | 17 | |||
10.69 € | 1 | 2 Days | 10 | - | 10 | M16 | 33 | 23 | 47.5 | 10 | 12 | ~ 11 | ~ 35 | 1 - 5 | 10 | 17 | |||
10.69 € | 1 | 2 Days | 10 | - | 10 | M16 x 1,5 | 33 | 23 | 47.5 | 10 | 12 | ~ 11 | ~ 35 | 1 - 5 | 10 | 17 | |||
5.72 € | 1 | 2 Days | 10 | - | 4 | M8 | 21 | 15 | 27.5 | 5 | 6 | ~ 4 | ~ 12 | 1 - 5 | 5 | 10 | |||
5.72 € | 1 | 2 Days | 10 | - | 4 | M8 x 1 | 21 | 15 | 27.5 | 5 | 6 | ~ 4 | ~ 12 | 1 - 5 | 5 | 10 | |||
6.49 € | 1 | 2 Days | 10 | - | 5 | M10 | 25 | 18 | 34 | 6 | 8 | ~ 6 | ~ 16 | 1 - 5 | 6 | 12 | |||
6.49 € | 1 | 2 Days | 10 | - | 5 | M10 x 1 | 25 | 18 | 34 | 6 | 8 | ~ 6 | ~ 16 | 1 - 5 | 6 | 12 | |||
6.49 € | 1 | 3 Days | 10 | - | 6 | M10 | 25 | 18 | 34 | 6 | 8 | ~ 6 | ~ 16 | 1 - 5 | 6 | 12 | |||
6.49 € | 1 | 2 Days | 10 | - | 6 | M10 x 1 | 25 | 18 | 34 | 6 | 8 | ~ 6 | ~ 16 | - | 6 | 12 | |||
7.66 € | 1 | 2 Days | 10 | - | 6 | M12 | 28 | 20 | 40.5 | 7 | 10 | ~ 10 | ~ 23 | - | 7 | 14 | |||
7.66 € | 1 |
Same day
Stock | 10 | - | 6 | M12 x 1,5 | 28 | 20 | 40.5 | 7 | 10 | ~ 10 | ~ 23 | - | 7 | 14 | |||
7.95 € | 1 | 2 Days | 10 | - | 7 | M12 | 28 | 20 | 40.5 | 7 | 10 | ~ 10 | ~ 23 | - | 7 | 14 | |||
7.95 € | 1 | 2 Days | 10 | - | 7 | M12 x 1,5 | 28 | 20 | 40.5 | 7 | 10 | ~ 10 | ~ 23 | - | 7 | 14 | |||
10.69 € | 1 | 2 Days | 10 | - | 8 | M16 | 33 | 23 | 47.5 | 10 | 12 | ~ 11 | ~ 35 | - | 10 | 17 | |||
10.69 € | 1 | 2 Days | 10 | - | 8 | M16 x 1,5 | 33 | 23 | 47.5 | 10 | 12 | ~ 11 | ~ 35 | - | 10 | 17 | |||
10.69 € | 1 |
Same day
Stock | 10 | - | 10 | M16 | 33 | 23 | 47.5 | 10 | 12 | ~ 11 | ~ 35 | - | 10 | 17 | |||
10.69 € | 1 | 2 Days | 10 | - | 10 | M16 x 1,5 | 33 | 23 | 47.5 | 10 | 12 | ~ 11 | ~ 35 | - | 10 | 17 |
Loading...
Basic information
| Type | Standard knob | Mounting Method | Screw-In | Overall Length | Standard |
|---|---|---|---|---|---|
| Operation Knob | Presence | Knob | Thermoplastic PA 6, black, dull | Locking pin | Stainless steel 1.4305 |
| Temperature min.(°C) | -30 | Temperature max.(°C) | 80 | Conflict Minerals free | yes |
| REACH compliant | yes |
