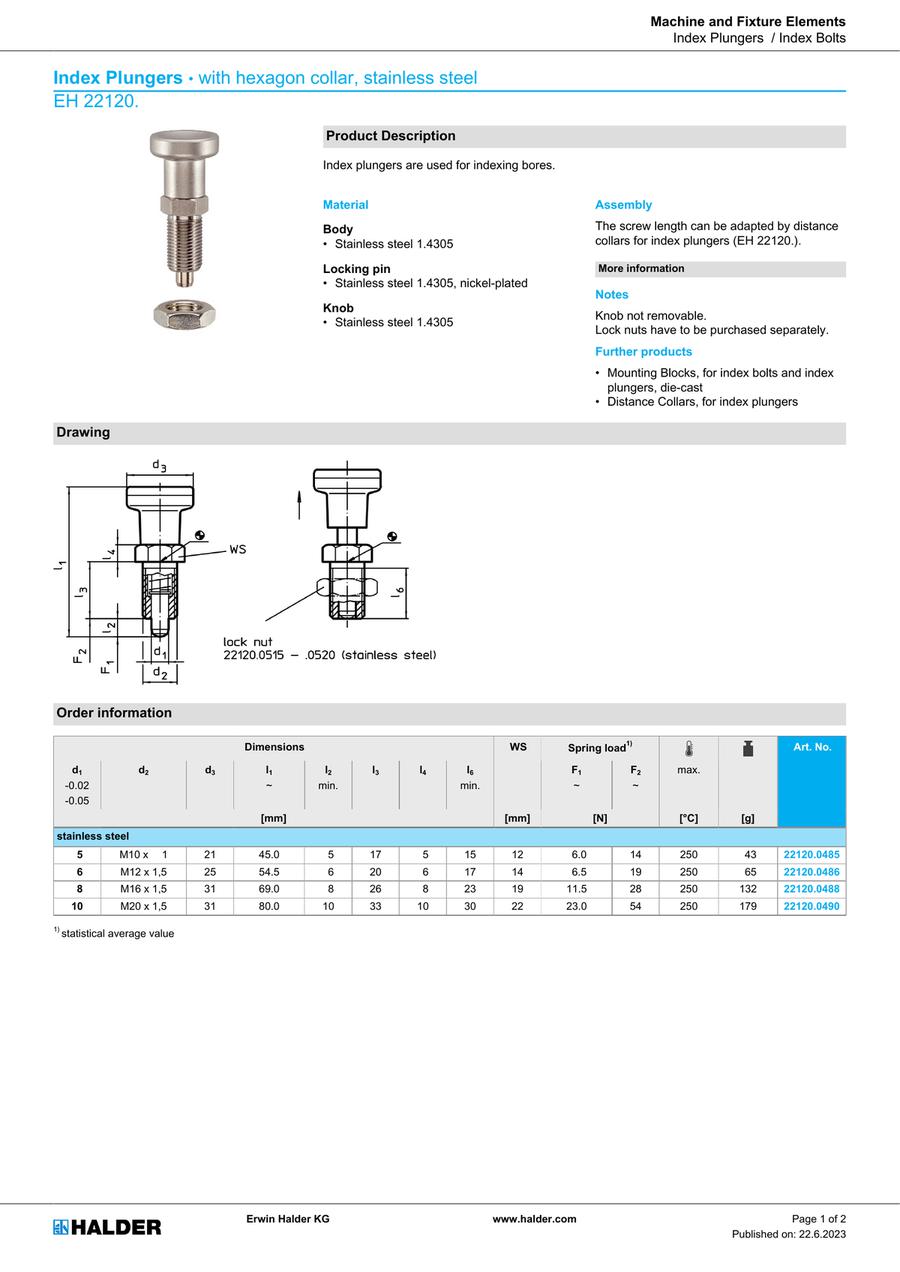

Index Bolt With Hexagon Collar Stainless Steel
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Example
Part Number
|
|---|
| 22120.0485 |
| 22120.0486 |
| 22120.0488 |
| 22120.0490 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Tip O.D. d (Ø) | d2 (mm) | d3 (mm) | l1 (mm) | l2 (mm) | l3 (mm) | l4 (mm) | l6 (mm) | F1 (N) | F2 (N) | s (mm) | WS (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
17.82 € | 1 | 2 Days | 10 | 5 | M10 x 1 | 21 | ~ 45 | 5 | 17 | 5 | 15 | ~ 6 | ~ 14 | 4 | 12 | |||
22.57 € | 1 | 2 Days | 10 | 6 | M12 x 1,5 | 25 | ~ 54.5 | 6 | 20 | 6 | 17 | ~ 5.5 | ~ 13 | 5 | 14 | |||
29.17 € | 1 | 2 Days | 10 | 8 | M16 x 1,5 | 31 | ~ 69 | 8 | 26 | 8 | 23 | ~ 11.5 | ~ 28 | 6 | 19 | |||
35.09 € | 1 | 2 Days | 10 | 10 | M20 x 1,5 | 31 | ~ 80 | 10 | 33 | 10 | 30 | ~ 23 | ~ 54 | 8 | 22 |
Loading...
Basic information
| Type | Standard knob | Mounting Method | Screw-In | Operation Knob | Presence |
|---|---|---|---|---|---|
| Knob | Stainless steel 1.4305 | Locking pin | Stainless steel 1.4305, nickel-plated | Temperature max.(°C) | 250 |
| Conflict Minerals free | yes | REACH compliant | yes |
Configure
Basic Attributes
-
Tip O.D. d(Ø)
-
d2(mm)
- M10 x 1
- M12 x 1,5
- M16 x 1,5
- M20 x 1,5
-
d3(mm)
-
l1(mm)
-
l2(mm)
-
l3(mm)
-
l4(mm)
-
l6(mm)
-
F1(N)
-
F2(N)
-
s(mm)
-
WS(mm)
-
Type
- 22120
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 2 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
