    Index Bolts Without Thread, Weldable

    Index Bolts Without Thread, Weldable

    Part number:

    Still undefined. 6 possible part numbers found.
    Quantity:

    Product information



    Example

    Part number list

    Number of items
  • 1
    • Part number
    22120.0805
    22120.0806
    22120.0808
    22120.0825
    22120.0826
    22120.0828
    Related

    Type

    Tip O.D. d

    (Ø)

    d2

    (mm)

    d3

    (mm)

    d4

    (mm)

    l1

    (mm)

    l2

    (mm)

    l3

    (mm)

    l4

    (mm)

    F1

    (N)

    F2

    (N)

    Knob

    Temperature min.

    (°C)

    Temperature max.

    (°C)

    		RoHS?Minimum order quantity

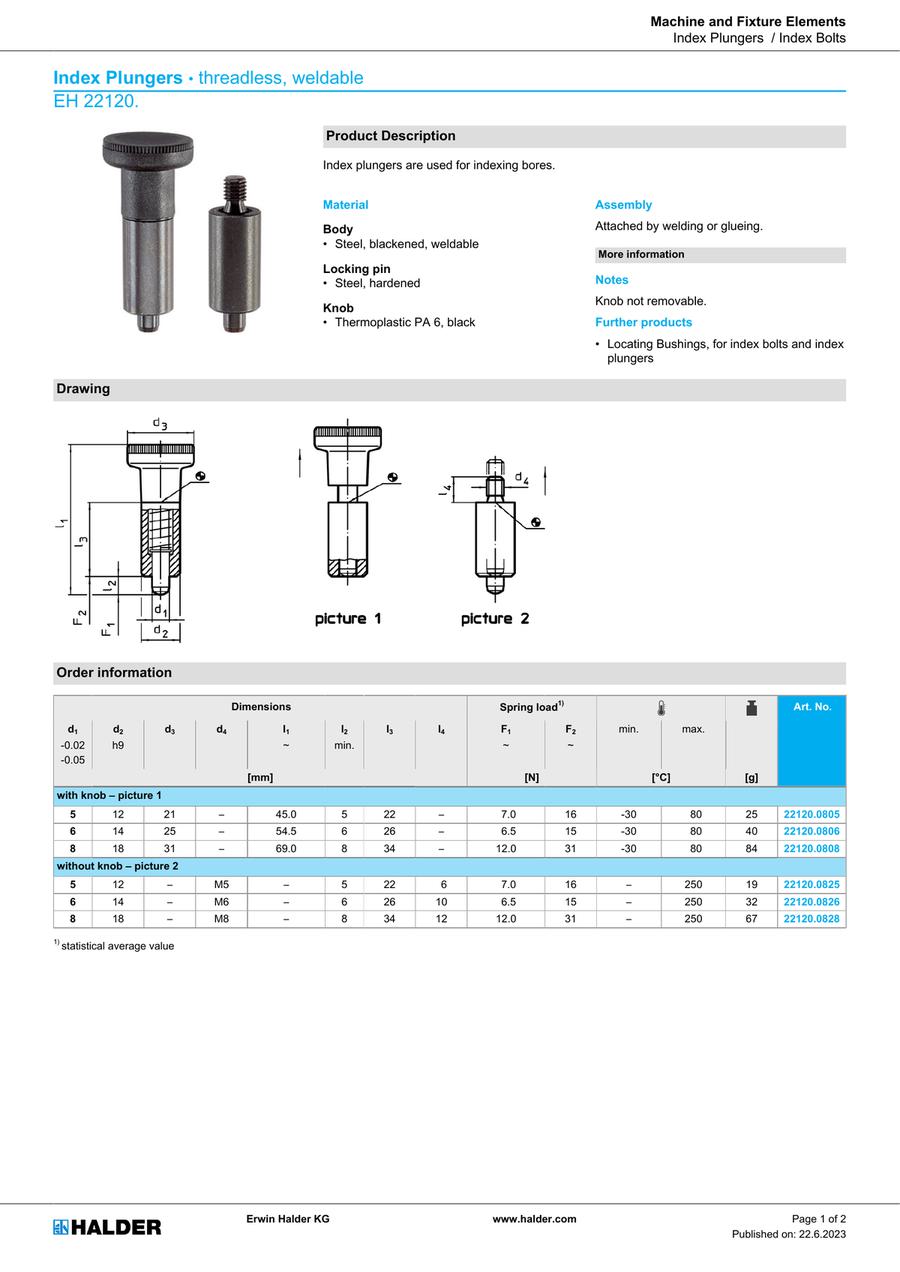

    Data sheet

    Standard knob
    5
    12
    21
    -
    ~ 45
    5
    22
    -
    ~ 7
    ~ 16
    Thermoplastic PA 6, black
    -30
    80
    10
    1 pieces

    Data sheet

    Standard knob
    6
    14
    25
    -
    ~ 54.5
    6
    26
    -
    ~ 6.5
    ~ 15
    Thermoplastic PA 6, black
    -30
    80
    10
    1 pieces

    Data sheet

    Standard knob
    8
    18
    31
    -
    ~ 69
    8
    34
    -
    ~ 12
    ~ 31
    Thermoplastic PA 6, black
    -30
    80
    10
    1 pieces

    Data sheet

    Without Knob
    5
    12
    -
    M5
    -
    5
    22
    6
    ~ 7
    ~ 16
    -
    -
    250
    10
    1 pieces

    Data sheet

    Without Knob
    6
    14
    -
    M6
    -
    6
    26
    10
    ~ 6.5
    ~ 15
    -
    -
    250
    10
    1 pieces

    Data sheet

    Without Knob
    8
    18
    -
    M8
    -
    8
    34
    12
    ~ 12
    ~ 31
    -
    -
    250
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    7.95 €
    ( 9.46 € )
    4 working days
    8.54 €
    ( 10.16 € )
    4 working days
    10.97 €6.80 €
    ( 8.09 € )
    Stock item: 1 working dayAvailable for same-day shipping
    7.49 €
    ( 8.91 € )
    4 working days
    8.36 €5.18 €
    ( 6.16 € )
    Stock item: 1 working dayAvailable for same-day shipping
    10.20 €6.32 €
    ( 7.52 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Basic information

    [Features]
    · For index holes.
    · Fixed by welding or bonding.
    · Operating temperature range is from ‐30 to +80°C.
