Index Plungers • with mounting flange, EH 22120.
Product Description
 | Index plungers are used for indexing bores. For fixing onto thin walled parts. The small dimensions are a feature of these index plungers. |
Material
Flange
• Zinc die-cast, zinc-plated by galvanization
Locking pin
• Steel, hardened
• Stainless steel 1.4305, nickel-plated
Knob
• Thermoplastic PA 6, black, dull
• Zinc die-cast, zinc-plated by galvanization
Locking pin
• Steel, hardened
• Stainless steel 1.4305, nickel-plated
Knob
• Thermoplastic PA 6, black, dull
Operation
When using locking index plungers the knob is pulled out and turned 90°.
Notes
Knob not removable.
Further products
• Locating Bushings, for index bolts and index plungers

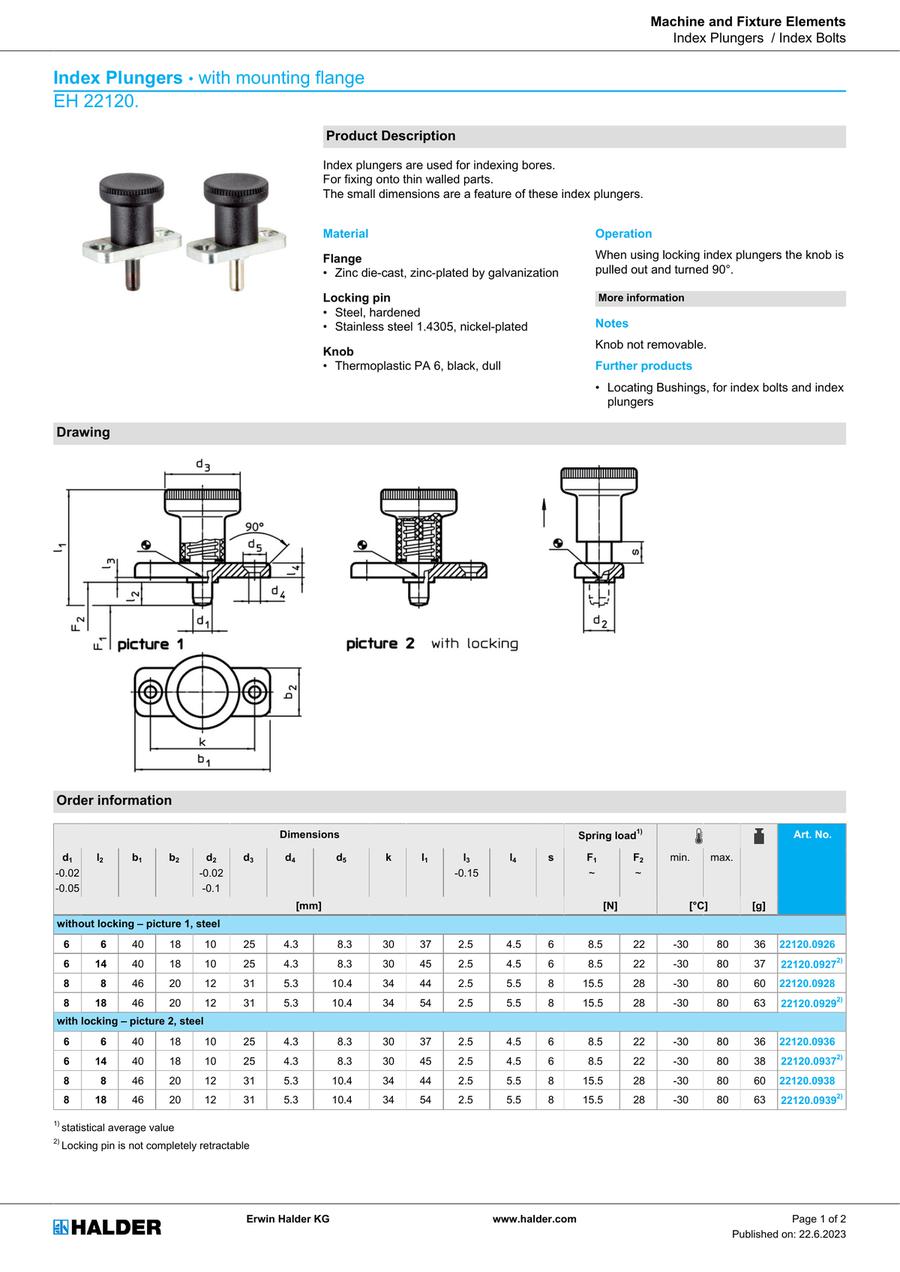

Drawing
picture 1 picture 2 with locking
Order Information
| Dimensions | Spring load1) | Operating temperature range | Weight | Art. No. | ||||||||||||||
| d1 | l2 | b1 | b2 | d2 | d3 | d4 | d5 | k | l1 | l3 | l4 | s | F1 | F2 | min. | max. | ||
| -0.02 -0.05 | -0.02 -0.1 | -0.15 | ~ | ~ | ||||||||||||||
| [mm] | [N] | [°C] | [g] | |||||||||||||||
| without locking – picture 1, steel | ||||||||||||||||||
| 6 | 6 | 40 | 18 | 10 | 25 | 4.3 | 8.3 | 30 | 37 | 2.5 | 4.5 | 6 | 8.5 | 22 | -30 | 80 | 36 | 22120.0926 |
| 6 | 14 | 40 | 18 | 10 | 25 | 4.3 | 8.3 | 30 | 45 | 2.5 | 4.5 | 6 | 8.5 | 22 | -30 | 80 | 37 | 22120.09272) |
| 8 | 8 | 46 | 20 | 12 | 31 | 5.3 | 10.4 | 34 | 44 | 2.5 | 5.5 | 8 | 15.5 | 28 | -30 | 80 | 60 | 22120.0928 |
| 8 | 18 | 46 | 20 | 12 | 31 | 5.3 | 10.4 | 34 | 54 | 2.5 | 5.5 | 8 | 15.5 | 28 | -30 | 80 | 63 | 22120.09292) |
| with locking – picture 2, steel | ||||||||||||||||||
| 6 | 6 | 40 | 18 | 10 | 25 | 4.3 | 8.3 | 30 | 37 | 2.5 | 4.5 | 6 | 8.5 | 22 | -30 | 80 | 36 | 22120.0936 |
| 6 | 14 | 40 | 18 | 10 | 25 | 4.3 | 8.3 | 30 | 45 | 2.5 | 4.5 | 6 | 8.5 | 22 | -30 | 80 | 38 | 22120.09372) |
| 8 | 8 | 46 | 20 | 12 | 31 | 5.3 | 10.4 | 34 | 44 | 2.5 | 5.5 | 8 | 15.5 | 28 | -30 | 80 | 60 | 22120.0938 |
| 8 | 18 | 46 | 20 | 12 | 31 | 5.3 | 10.4 | 34 | 54 | 2.5 | 5.5 | 8 | 15.5 | 28 | -30 | 80 | 63 | 22120.09392) |
| without locking – picture 1, stainless steel | ||||||||||||||||||
| 6 | 6 | 40 | 18 | 10 | 25 | 4.3 | 8.3 | 30 | 37 | 2.5 | 4.5 | 6 | 8.5 | 22 | -30 | 80 | 36 | 22120.0966 |
| 6 | 14 | 40 | 18 | 10 | 25 | 4.3 | 8.3 | 30 | 45 | 2.5 | 4.5 | 6 | 8.5 | 22 | -30 | 80 | 38 | 22120.09672) |
| 8 | 8 | 46 | 20 | 12 | 31 | 5.3 | 10.4 | 34 | 44 | 2.5 | 5.5 | 8 | 15.5 | 28 | -30 | 80 | 59 | 22120.0968 |
| 8 | 18 | 46 | 20 | 12 | 31 | 5.3 | 10.4 | 34 | 54 | 2.5 | 5.5 | 8 | 15.5 | 28 | -30 | 80 | 62 | 22120.09692) |
| with locking – picture 2, stainless steel | ||||||||||||||||||
| 6 | 6 | 40 | 18 | 10 | 25 | 4.3 | 8.3 | 30 | 37 | 2.5 | 4.5 | 6 | 8.5 | 22 | -30 | 80 | 37 | 22120.0976 |
| 6 | 14 | 40 | 18 | 10 | 25 | 4.3 | 8.3 | 30 | 45 | 2.5 | 4.5 | 6 | 8.5 | 22 | -30 | 80 | 39 | 22120.09772) |
| 8 | 8 | 46 | 20 | 12 | 31 | 5.3 | 10.4 | 34 | 44 | 2.5 | 5.5 | 8 | 15.5 | 28 | -30 | 80 | 58 | 22120.0978 |
| 8 | 18 | 46 | 20 | 12 | 31 | 5.3 | 10.4 | 34 | 54 | 2.5 | 5.5 | 8 | 15.5 | 28 | -30 | 80 | 63 | 22120.09792) |
2) Locking pin is not completely retractable
