Shaft / C-Washers, high precision design
・Type: Flat Washer
・Material: Stainless steel, Steel
・I.D. d(mm): 3.2-33
・O.D. D(mm): 9-92
The precisely manufactured washers have an allowance in parallelism of 0.05 mm.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

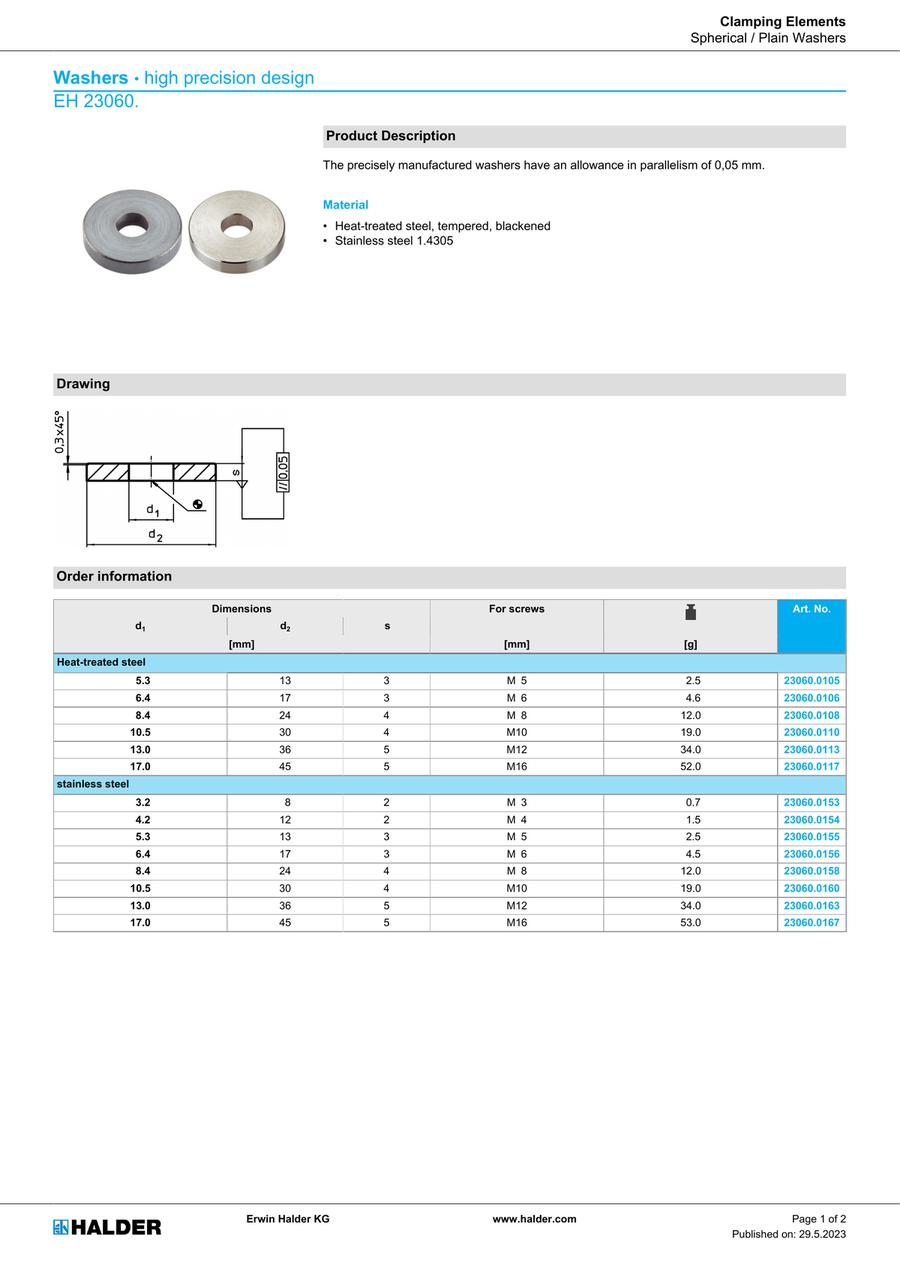

Washers • high precision design, EH 23060.
Product Description
 | The precisely manufactured washers have an allowance in parallelism of 0.05 mm. |
Material
• Stainless steel 1.4305
Drawing
Order Information
| Dimensions | For screws | Weight | Art. No. | ||
| d1 | d2 | s | |||
| [mm] | [mm] | [g] | |||
| Heat-treated steel | |||||
| 5.3 | 13 | 3 | M 5 | 2.5 | 23060.0105 |
| 6.4 | 17 | 3 | M 6 | 4.6 | 23060.0106 |
| 8.4 | 24 | 4 | M 8 | 12.0 | 23060.0108 |
| 10.5 | 30 | 4 | M10 | 19.0 | 23060.0110 |
| 13.0 | 36 | 5 | M12 | 34.0 | 23060.0113 |
| 17.0 | 45 | 5 | M16 | 52.0 | 23060.0117 |
| Stainless steel | |||||
| 3.2 | 8 | 2 | M 3 | 0.7 | 23060.0153 |
| 4.2 | 12 | 2 | M 4 | 1.5 | 23060.0154 |
| 5.3 | 13 | 3 | M 5 | 2.5 | 23060.0155 |
| 6.4 | 17 | 3 | M 6 | 4.5 | 23060.0156 |
| 8.4 | 24 | 4 | M 8 | 12.0 | 23060.0158 |
| 10.5 | 30 | 4 | M10 | 19.0 | 23060.0160 |
| 13.0 | 36 | 5 | M12 | 34.0 | 23060.0163 |
| 17.0 | 45 | 5 | M16 | 53.0 | 23060.0167 |
