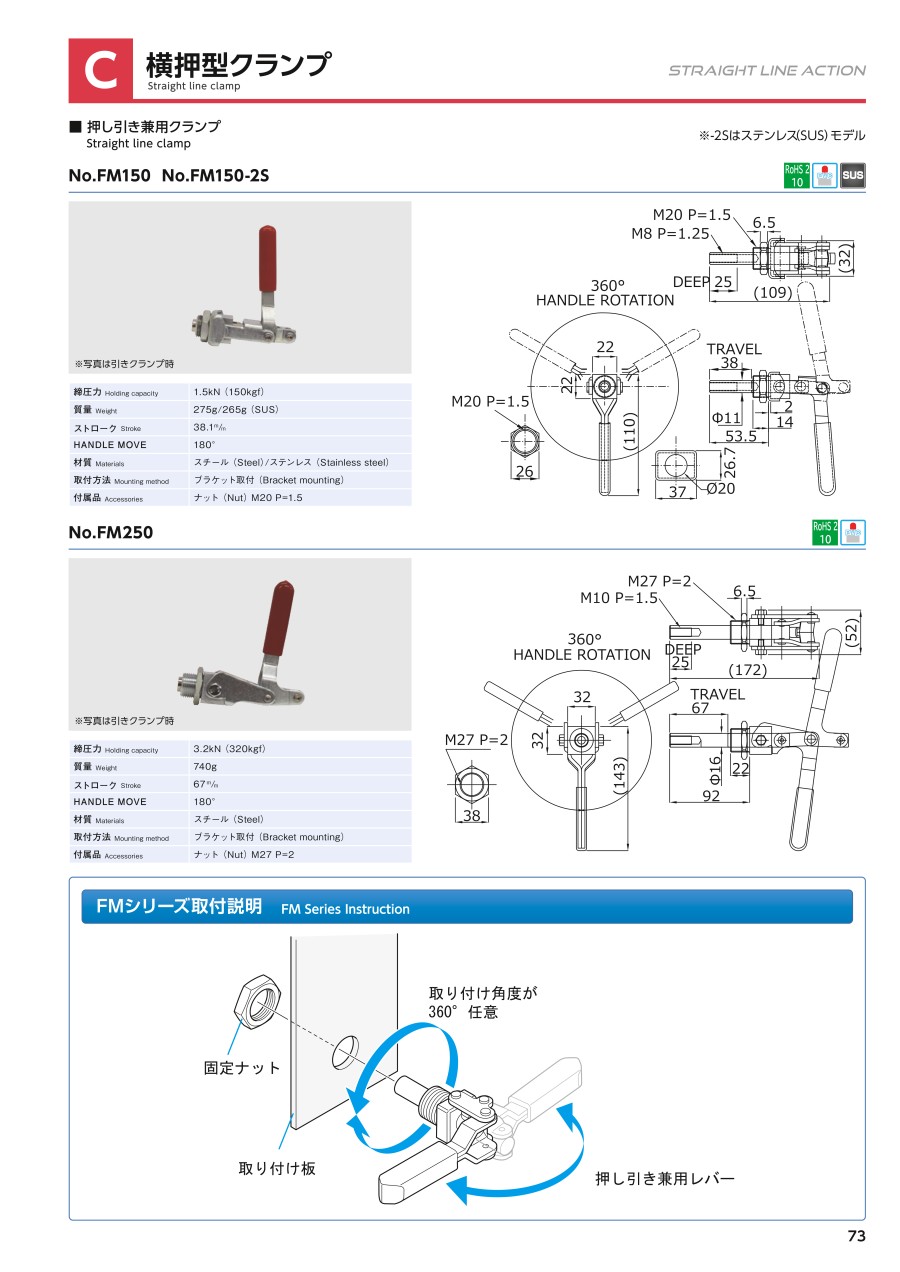

Horizontal Push-Type Clamp, No. FM150-2S
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
Optimal for inspection, welding, assembly, and machining jigs.
[Features]
· All pressing forces are maximum values.
· Regular bolts are used to measure the pressing force.
[Features]
· All pressing forces are maximum values.
· Regular bolts are used to measure the pressing force.
- Stock
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
NO.FM150-2S
Basic information
| Shape | Side Push | Tightening Force(N) | 1500 | Attaching Method | Straight base |
|---|---|---|---|---|---|
| Body Material | Steel | Clamp Screw | Fixed | Clamp Screw Size | M4 |
| Clamp Screw Material | Stainless Steel | Arm Height(mm) | 13.35 | Arm Length(mm) | 53.5 |
| Handle Length | Standard | Tightening Force (Range Selectable)(N) | 1400 to 1999 | Tip accessories | Stainless Steel Bolt |
| Stroke(mm) | 38.1 |
This page is Horizontal Push-Type Clamp, No. FM150-2S, part number NO.FM150-2S.
You can find the detail information about specifications and dimensions on part number NO.FM150-2S.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
