Expander® Sealing Plugs
- Promotional pricing ends 31/12/2024
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Expander Sealing Plugs • body from stainless steel, EH 22880.
Product Description
 | Expander® sealing plugs are used for safe, quick and economic sealing of bore holes in fluid technology, e.g. hydraulic drilling holes in jig and fixture construction. Assembly is effected by pressing in the sealing plug into the drilling hole by means of the prescribed setting die. |
Material
• Stainless steel 1.4305
Ball
• Roller bearing steel, heat-treated, tempered
Further products
• Setting Dies, for Expander® sealing plug

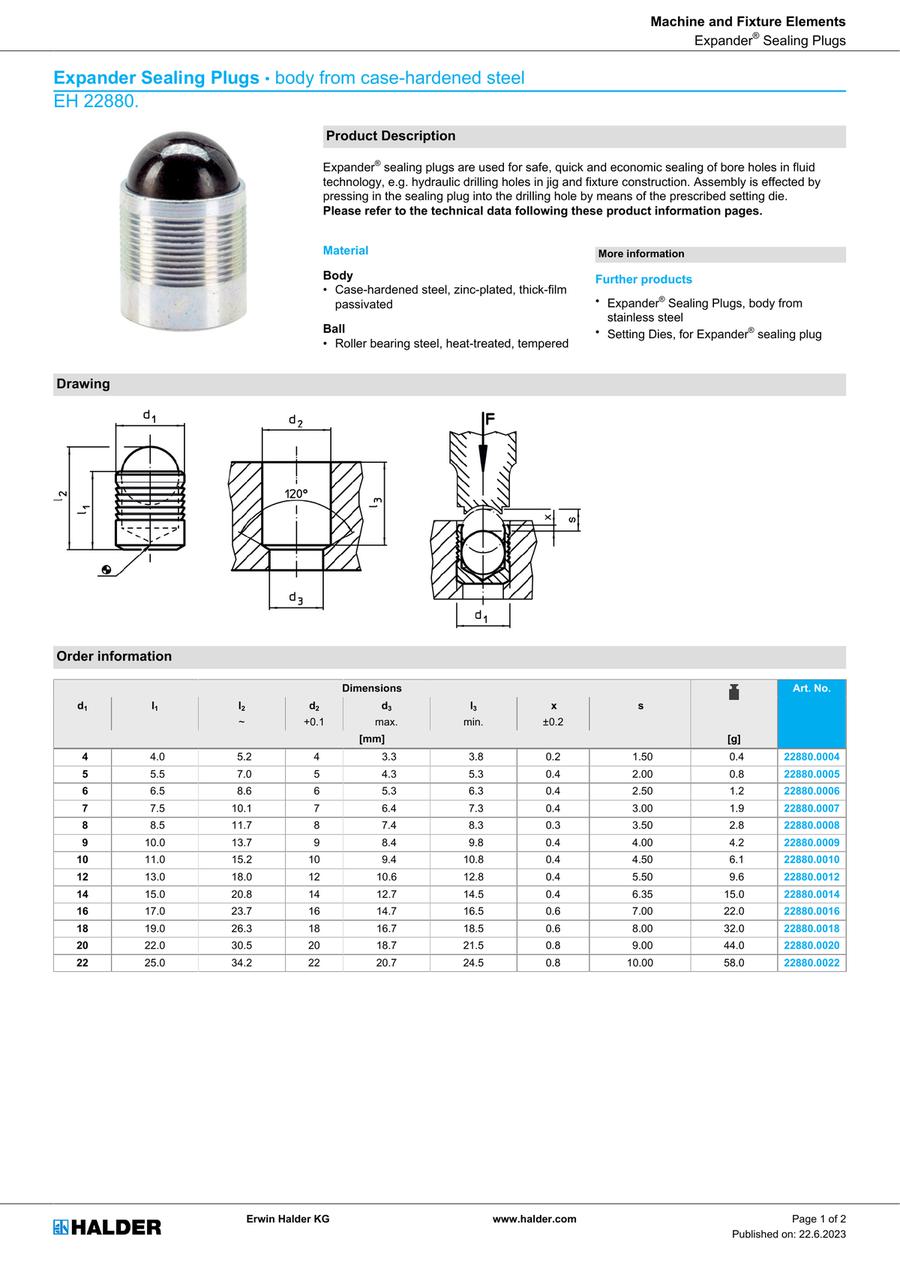

Drawing
Order Information
| Dimensions | Weight | Art. No. | |||||||
| d1 | l1 | l2 | d2 | d3 | l3 | x | s | ||
| ~ | +0.1 | max. | min. | ±0.2 | |||||
| [mm] | [g] | ||||||||
| body from stainless steel, ball from steel | |||||||||
| 3 | 3.6 | 4.6 | 3 | 2.2 | 3.4 | 0.4 | 1.20 | 0.2 | 22880.0053 |
| 4 | 4.0 | 5.2 | 4 | 3.3 | 3.8 | 0.2 | 1.50 | 0.4 | 22880.0054 |
| 5 | 5.5 | 7.0 | 5 | 4.3 | 5.3 | 0.4 | 2.00 | 0.7 | 22880.0055 |
| 6 | 6.5 | 8.6 | 6 | 5.3 | 6.3 | 0.4 | 2.50 | 1.3 | 22880.0056 |
| 7 | 7.5 | 10.1 | 7 | 6.4 | 7.3 | 0.4 | 3.00 | 1.9 | 22880.0057 |
| 8 | 8.5 | 11.7 | 8 | 7.4 | 8.3 | 0.3 | 3.50 | 3.2 | 22880.0058 |
| 9 | 10.0 | 13.7 | 9 | 8.4 | 9.8 | 0.4 | 4.00 | 4.5 | 22880.0059 |
| 10 | 11.0 | 15.2 | 10 | 9.4 | 10.8 | 0.4 | 4.50 | 6.1 | 22880.0060 |
| 12 | 13.0 | 18.0 | 12 | 10.6 | 12.8 | 0.4 | 5.50 | 9.7 | 22880.0062 |
| 14 | 15.0 | 20.8 | 14 | 12.7 | 14.5 | 0.4 | 6.35 | 15.0 | 22880.0064 |
| 16 | 17.0 | 23.7 | 16 | 14.7 | 16.5 | 0.6 | 7.00 | 22.0 | 22880.0066 |
| 18 | 19.0 | 26.3 | 18 | 16.7 | 18.5 | 0.6 | 8.00 | 31.0 | 22880.0068 |
| 20 | 22.0 | 30.5 | 20 | 18.7 | 21.5 | 0.8 | 9.00 | 46.0 | 22880.0070 |
| 22 | 25.0 | 34.2 | 22 | 20.7 | 24.5 | 0.8 | 10.00 | 58.0 | 22880.0072 |
Application Example
| Working and control pressures for Expander® sealing plug, sleeve from stainless steel 1.4305 | |||||||
| Basic material | ETG-100 AISI 1144 | C15Pb 1.0403 | GG-25 DIN 1691 | GGG-50 DIN 1693 | AlCuMg2 3.1354 | AlMgSiPb 3.0615 | G-AlSi7Mg 3.2371 |
| d1 3-10 mm | p [bar] | ||||||
| 450 | 450 | 450 | 450 | 450 | 380 | 380 | |
| pTest [bar] | |||||||
| 1400 | 1400 | 1400 | 1400 | 1400 | 1200 | 1200 | |
| d1 12-22 mm | p [bar] | ||||||
| 350 | 350 | 350 | 350 | 350 | 280 | 280 | |
| pTest [bar] | |||||||
| 1150 | 1150 | 1150 | 1150 | 1150 | 900 | 900 | |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Stroke S (mm) | d1 | d2 (mm) | d3 (mm) | l (mm) | l2 (mm) | l3 (mm) | x (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.62 € | 1 |
Same day
Stock | 10 | 1.5 | 4 | 4 | 3.3 | 4 | ~ 5.2 | 3.8 | 0.2 | |||
0.79 € | 1 |
Same day
Stock | 10 | 2 | 5 | 5 | 4.3 | 5.5 | ~ 7 | 5.3 | 0.4 | |||
0.93 € | 1 |
Same day
Stock | 10 | 2.5 | 6 | 6 | 5.3 | 6.5 | ~ 8.6 | 6.3 | 0.4 | |||
1.25 € | 1 | 2 Days | 10 | 3 | 7 | 7 | 6.4 | 7.5 | ~ 10.1 | 7.3 | 0.4 | |||
1.56 € | 1 | 2 Days | 10 | 3.5 | 8 | 8 | 7.4 | 8.5 | ~ 11.7 | 8.3 | 0.3 | |||
1.95 € | 1 | 3 Days | 10 | 4 | 9 | 9 | 8.4 | 10 | ~ 13.7 | 9.8 | 0.4 | |||
2.66 € | 1 | 2 Days | 10 | 4.5 | 10 | 10 | 9.4 | 11 | ~ 15.2 | 10.8 | 0.4 | |||
3.47 € | 1 | 2 Days | 10 | 5.5 | 12 | 12 | 10.6 | 13 | ~ 18 | 12.8 | 0.4 | |||
4.38 € | 1 | 2 Days | 10 | 6.35 | 14 | 14 | 12.7 | 15 | ~ 20.8 | 14.5 | 0.4 | |||
5.04 € 3.53 € | 1 |
Same day
Stock | 10 | 7 | 16 | 16 | 14.7 | 17 | ~ 23.7 | 16.5 | 0.6 | |||
6.55 € | 1 | 2 Days | 10 | 8 | 18 | 18 | 16.7 | 19 | ~ 26.3 | 18.5 | 0.6 | |||
10.44 € | 1 | 2 Days | 10 | 9 | 20 | 20 | 18.7 | 22 | ~ 30.5 | 21.5 | 0.8 | |||
12.46 € | 1 | 2 Days | 10 | 10 | 22 | 22 | 20.7 | 25 | ~ 34.2 | 24.5 | 0.8 | |||
1.01 € | 1 |
Same day
Stock | 10 | 1.2 | 3 | 3 | 2.2 | 3.6 | ~ 4.6 | 3.4 | 0.4 | |||
0.93 € | 1 | 2 Days | 10 | 1.5 | 4 | 4 | 3.3 | 4 | ~ 5.2 | 3.8 | 0.2 | |||
1.28 € | 1 | 2 Days | 10 | 2 | 5 | 5 | 4.3 | 5.5 | ~ 7 | 5.3 | 0.4 | |||
1.56 € | 1 |
Same day
Stock | 10 | 2.5 | 6 | 6 | 5.3 | 6.5 | ~ 8.6 | 6.3 | 0.4 | |||
2.06 € | 1 | 2 Days | 10 | 3 | 7 | 7 | 6.4 | 7.5 | ~ 10.1 | 7.3 | 0.4 | |||
2.75 € | 1 | 2 Days | 10 | 3.5 | 8 | 8 | 7.4 | 8.5 | ~ 11.7 | 8.3 | 0.3 | |||
3.48 € | 1 | 2 Days | 10 | 4 | 9 | 9 | 8.4 | 10 | ~ 13.7 | 9.8 | 0.4 | |||
4.66 € | 1 | 2 Days | 10 | 4.5 | 10 | 10 | 9.4 | 11 | ~ 15.2 | 10.8 | 0.4 | |||
5.97 € | 1 | 2 Days | 10 | 5.5 | 12 | 12 | 10.6 | 13 | ~ 18 | 12.8 | 0.4 | |||
7.66 € | 1 | 2 Days | 10 | 6.35 | 14 | 14 | 12.7 | 15 | ~ 20.8 | 14.5 | 0.4 | |||
11.32 € | 1 | 2 Days | 10 | 7 | 16 | 16 | 14.7 | 17 | ~ 23.7 | 16.5 | 0.6 | |||
14.26 € | 1 | 2 Days | 10 | 8 | 18 | 18 | 16.7 | 19 | ~ 26.3 | 18.5 | 0.6 | |||
21.35 € | 1 | 2 Days | 10 | 9 | 20 | 20 | 18.7 | 22 | ~ 30.5 | 21.5 | 0.8 | |||
24.77 € | 1 | 2 Days | 10 | 10 | 22 | 22 | 20.7 | 25 | ~ 34.2 | 24.5 | 0.8 |
Loading...
Basic information
| Ball | Roller bearing Steel, heat-treated, tempered | Conflict Minerals free | yes | REACH compliant | yes |
|---|
