KK*P-*H, S-Couplers, Straight Type with One-touch Fitting
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
4.61 € ( 5.49 € ) | 4 working days |
4.61 € ( 5.49 € ) | 4 working days |
4.61 € ( 5.49 € ) | 4 working days |
4.61 € ( 5.49 € ) | 4 working days |
4.61 € ( 5.49 € ) | 4 working days |
4.61 € ( 5.49 € ) | 4 working days |
5.18 € ( 6.16 € ) | 4 working days |
4.89 € ( 5.82 € ) | 7 working days |
5.18 € ( 6.16 € ) | 4 working days |
5.85 € ( 6.96 € ) | 3 working days |
6.53 € ( 7.77 € ) | 4 working days |
8.08 €5.41 € ( 6.44 € ) | Stock item: 1 working dayAvailable for same-day shipping |
11.32 € ( 13.47 € ) | 4 working days |
More Information
Basic information
A straight type with one-touch pipe fitting. Part of the S Coupler KK Series or products.
[Features]
· Twice the plug/socket pull-out strength (compared to current models.)
· Effective area: 3.8 to 82 mm^2.
· Shock resistance has been improved by changing the lock ring to shock-resistant PBT.
· The loss of effective area is minimized because there is no valve spring to block the flow path.
· The check valve end configuration facilitates a rectifying effect.
· Uses surface contact to achieve reliable sealing.
· In addition to a reduction in the body size, pressed and resin parts have been used to help deliver a thorough overall reduction in weight.
· Allows flows from either the plug side or the socket side.
Caution

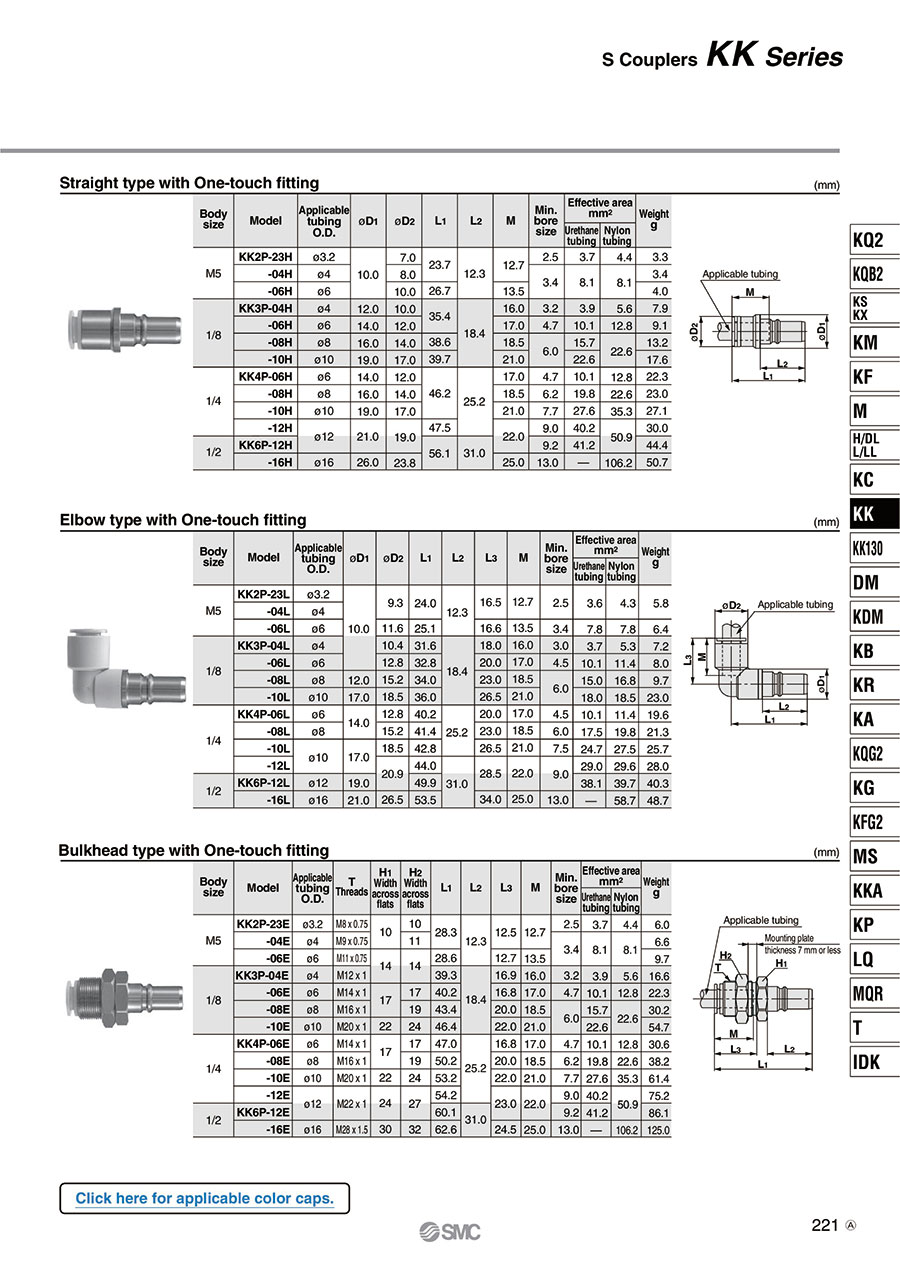

- The product shown in the image may be a representative image. Refer to the catalog for product shapes and types.
