VBAT, Small Capacity Air Tank

VBAT, Small Capacity Air Tank

Click image to view enlarged image

  • VBAT, Small Capacity Air Tank
  • VBAT, Small Capacity Air Tank
  • VBAT, Small Capacity Air Tank

Caution

  • Refer to the catalog for details on product specifications.
  • CAD data is not supported for some model numbers
  • The products shown in the image are representative.

Part number:

Still undefined. 8 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    VBAT05A-SV-Q
    VBAT05AF-SV-Q
    VBAT10A-SV-Q
    VBAT10AF-SV-Q
    VBAT20A-RV-Q
    VBAT20AF-RV-Q
    VBAT38A-RV-Q
    VBAT38AF-RV-Q

    Size

    Thread type

    Connection port size

    Option

    		Minimum order quantity
    5 L
    Rc
    IN 3/8, OUT 3/8
    Safety valve (Set pressure: 2 MPa), with drain valve
    1 pieces
    5 L
    G
    IN 3/8, OUT 3/8
    Safety valve (Set pressure: 2 MPa), with drain valve
    1 pieces
    10 L
    Rc
    IN 1/2, OUT 1/2
    Safety valve (Set pressure: 2 MPa), with drain valve
    1 pieces
    10 L
    G
    IN 1/2, OUT 1/2
    Safety valve (Set pressure: 2 MPa), with drain valve
    1 pieces
    20 L
    Rc
    IN 3/4, OUT 1/2
    Safety valve (Set pressure: 1 MPa), with drain valve
    1 pieces
    20 L
    G
    IN 3/4, OUT 1/2
    Safety valve (Set pressure: 1 MPa), with drain valve
    1 pieces
    38 L
    Rc
    IN 3/4, OUT 3/4
    Safety valve (Set pressure: 1 MPa), with drain valve
    1 pieces
    38 L
    G
    IN 3/4, OUT 3/4
    Safety valve (Set pressure: 1 MPa), with drain valve
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    476.61 €
    ( 567.17 € )
    26 working days
    389.27 €
    ( 463.23 € )
    3 working days
    605.85 €
    ( 720.96 € )
    14 working days
    494.81 €
    ( 588.82 € )
    4 working days
    718.98 €
    ( 855.59 € )
    26 working days
    718.98 €
    ( 855.59 € )
    4 working days
    864.44 €
    ( 1,028.68 € )
    68 working days
    864.44 €
    ( 1,028.68 € )
    4 working days
  • 1

    • More Information

    Basic information

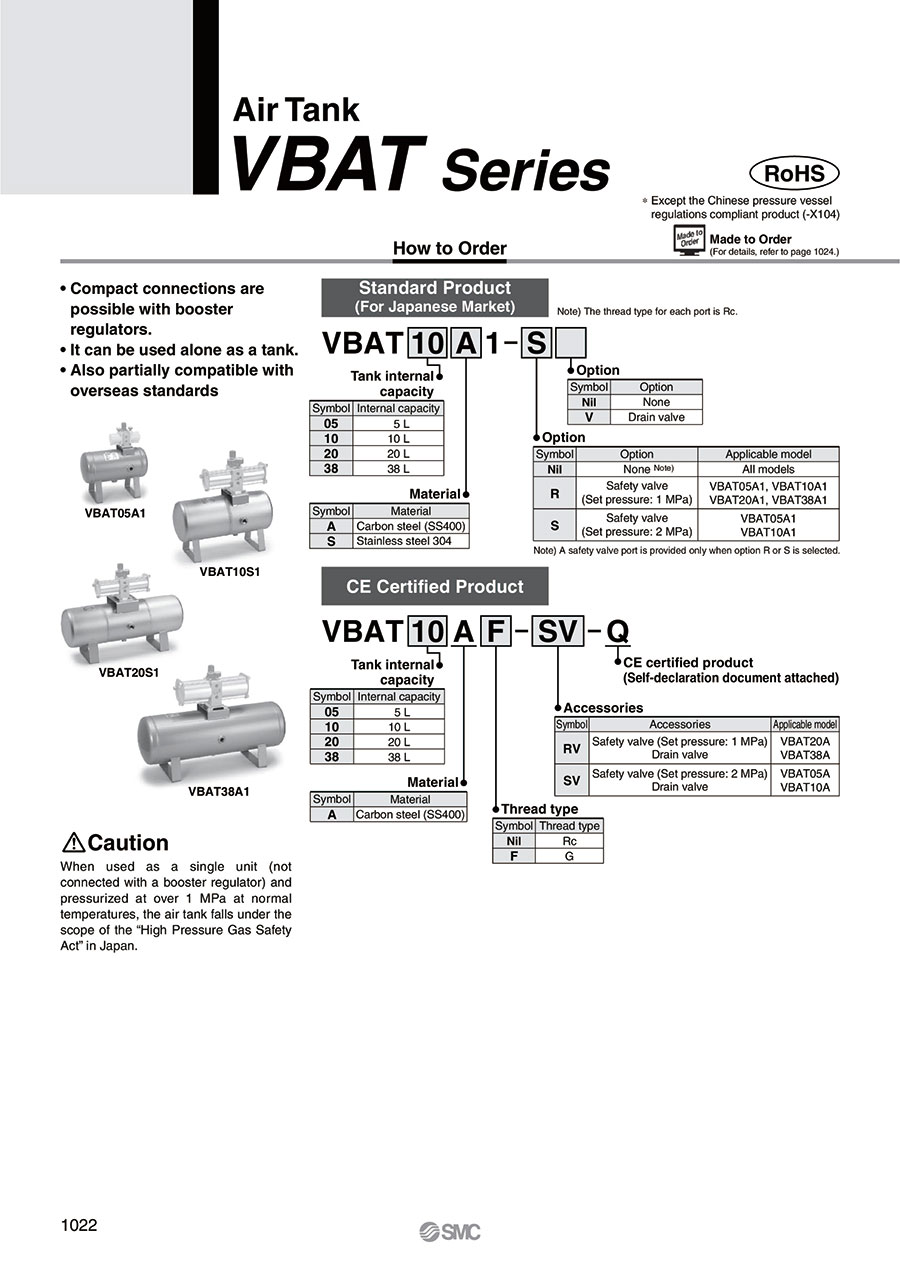

    The Air Tank VBAT Series allows for compact connections with booster regulators.
    [Features]
    · Can also be used alone as a tank.
    · Does not fall under the Japanese Construction Code for Second Class Pressure Vessels.
    · Partially compatible with some international standards.
