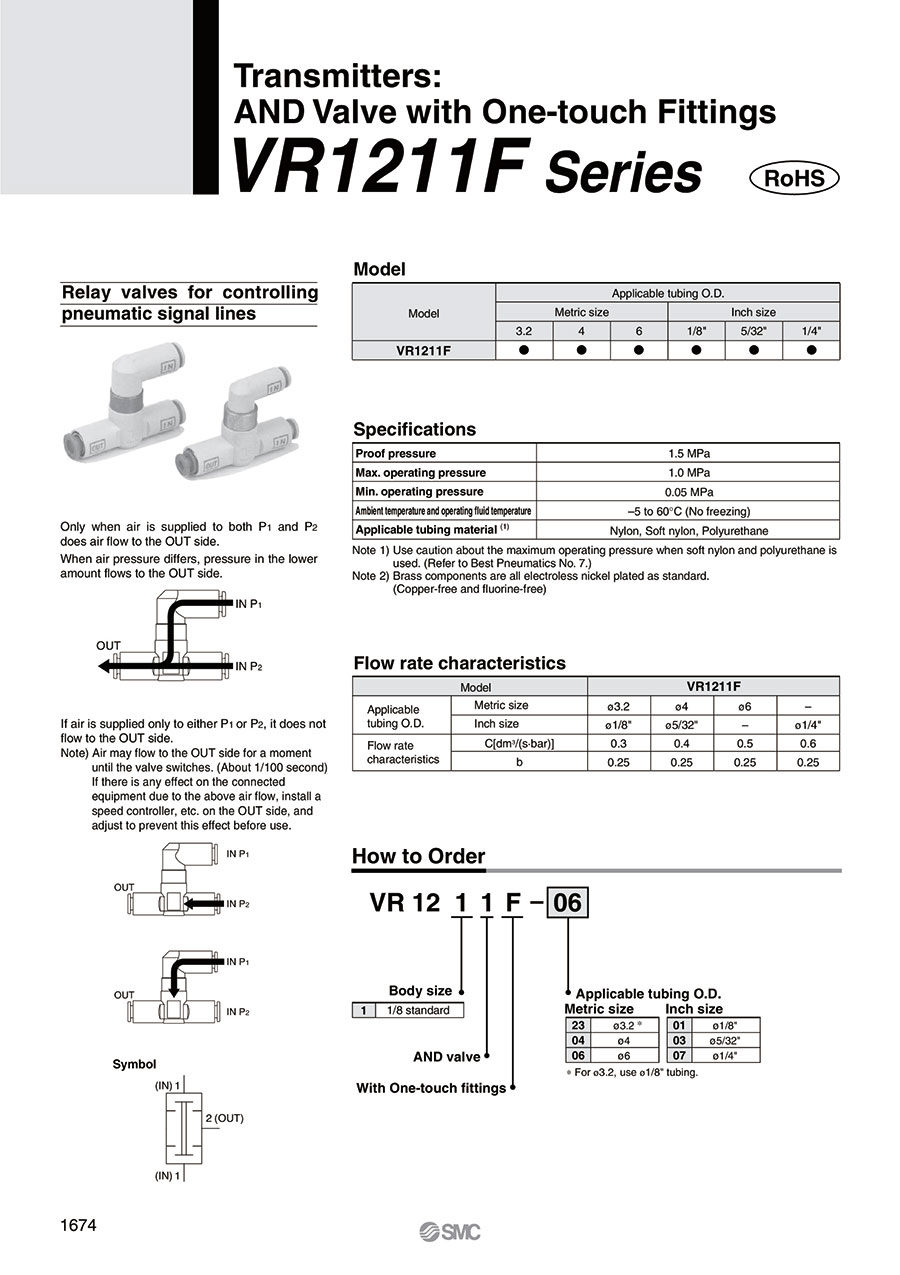

VR12*1F, One-touch Fitting AND Valve Series
[Features]
· Proof pressure: 1.5 MPa.
· Maximum operating pressure: 1.0 MPa.
· Minimum operating pressure 0.05 MPa.
· Ambient and working fluid temperature: -5 to 60°C (no freezing).
· Applicable tubing material: nylon, soft nylon, polyurethane.
(i)Remark
- Refer to the catalog for details on product specifications.
- The products shown in the image are representative.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| VR1211F-01 |
| VR1211F-03 |
| VR1211F-04 |
| VR1211F-06 |
| VR1211F-07 |
| VR1211F-23 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Type | Applicable tube outer diameter | |
|---|---|---|---|---|---|---|
24.77 € | 1 | 26 Days | Inch size | ø1/8 | ||
23.15 € | 1 | Quote | Inch size | ø5/32 | ||
23.15 € | 1 |
Same day
Stock | Metric size | ø4 | ||
23.15 € | 1 | 3 Days | Metric size | ø6 | ||
23.15 € | 1 | 26 Days | Inch size | ø1/4 | ||
24.77 € | 1 | 26 Days | Metric size | ø3.2 (ø1/8) |
Loading...
Basic information
| Type | Relay Device | Body size | 1/8 standard |
|---|
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Type
- Inch size
- Metric size
-
Applicable tube outer diameter
- ø1/4
- ø1/8
- ø3.2 (ø1/8)
- ø4
- ø5/32
- ø6
-
Type
- VR1211F
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 3 Days or Less
- 26 Days or Less
Optional Attributes
- The products shown in the image are representative.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
