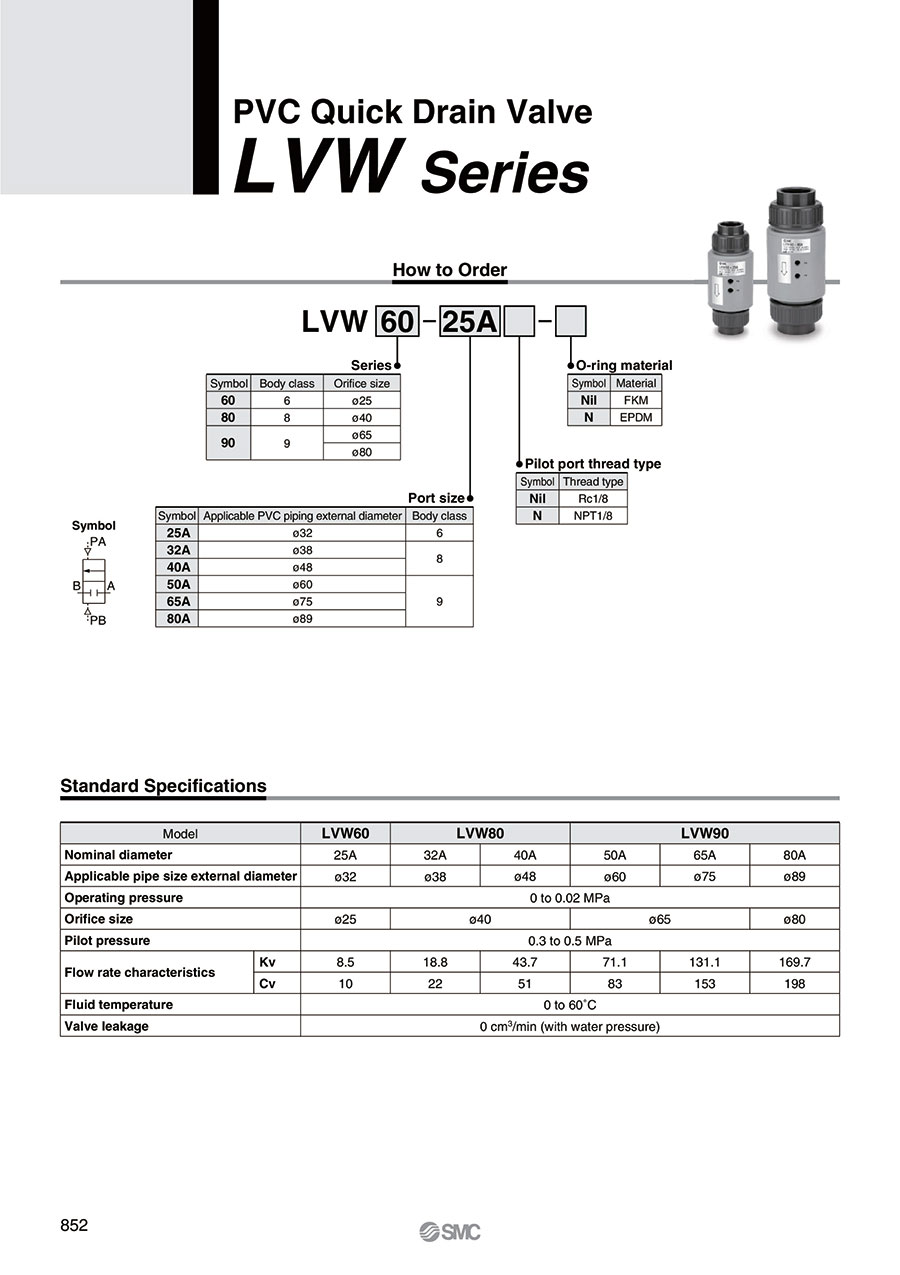

LVW Series PVC Quick Drain Valve
[Features]
· Compatible fluids: deionized water, chemicals.
(i)Remark
- Product images may be representative images. Refer to the catalog for details.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| LVW60-25A |
| LVW60-25A-N |
| LVW80-32A |
| LVW80-32A-N |
| LVW80-40A |
| LVW80-40A-N |
| LVW90-50A |
| LVW90-65A |
| LVW90-80A |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Size | Applicable tube outer diameter | Materials | |
|---|---|---|---|---|---|---|---|
446.90 € | 1 | 84 Days | 6 (orifice diameter ø25) | ø32 | O-ring: FKM | ||
446.90 € | 1 | 84 Days | 6 (orifice diameter ø25) | ø32 | O-ring: EPDM | ||
523.61 € | 1 | 84 Days | 8 (orifice diameter ø40) | ø38 | O-ring: FKM | ||
523.61 € | 1 | 84 Days | 8 (orifice diameter ø40) | ø38 | O-ring: EPDM | ||
556.31 € | 1 | 84 Days | 8 (orifice diameter ø40) | ø48 | O-ring: FKM | ||
556.31 € | 1 | 84 Days | 8 (orifice diameter ø40) | ø48 | O-ring: EPDM | ||
960.03 € | 1 | 84 Days | 9 (orifice diameter ø65) | ø60 | O-ring: FKM | ||
1,026.08 € | 1 | 84 Days | 9 (orifice diameter ø65) | ø75 | O-ring: FKM | ||
1,241.21 € | 1 | 84 Days | 9 (orifice diameter ø80) | ø89 | O-ring: FKM |
Loading...
Basic information
| Type | Bulb | Thread type | Rc | Connection port size | 1/8 |
|---|
Configure
Basic Attributes
-
Size
- 6 (orifice diameter ø25)
- 8 (orifice diameter ø40)
- 9 (orifice diameter ø65)
- 9 (orifice diameter ø80)
-
Applicable tube outer diameter
- ø32
- ø38
- ø48
- ø60
- ø75
- ø89
-
Materials
-
Type
- LVW60
- LVW80
- LVW90
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 84 Days or Less
Optional Attributes
- Product images may be representative images. Refer to the catalog for details.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
