MHZ2, Air Gripper, Parallel Type, Standard
- Promotional pricing
[Features]
· Uses a linear guide for high rigidity and high precision.
(i)Remark
- The products shown in the image are representative. CAD data is not supported for some model numbers.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
MHZ2 Series Parallel Type Air Gripper / Standard Type Specifications
MHZ2 Series ø6 (diameter 6 mm) external appearance
MHZ2 Series ø10 to 25 (diameter 10 to 25 mm) external appearance
MHZ2 Series ø32 (diameter 32 mm), ø40 (diameter 40 mm) external appearance
JIS symbol / double acting / internal grip
JIS symbol / double acting / external grip
JIS symbol / single acting normally closed / internal grip
JIS symbol / single acting normally open / external grip
Specifications
| Fluid | Air | ||
|---|---|---|---|
| Operating pressure | Double acting | ø6 (diameter 6 mm): 0.15 to 0.7 MPa ø10 (diameter 10 mm): 0.2 to 0.7 MPa ø16 to 40 (diameter 16 to 40 mm): 0.1 to 0.7 MPa | |
| Single acting | Normally open | ø6 (diameter 6 mm): 0.3 to 0.7 MPa ø10 (diameter 10 mm): 0.35 to 0.7 MPa ø16 to 40 (diameter 16 to 40 mm): 0.25 to 0.7 MPa | |
| Normally closed | |||
| Ambient and fluid temperature | -10 to 60°C | ||
| Repeatability | ø6 to 25 (diameter 6 to 25 mm): ±0.01 mm ø32 (diameter 32 mm), ø40 (diameter 40 mm): ±0.02 mm | ||
| Maximum operating frequency | ø6 to 25 (diameter 6 to 25 mm): 180 c.p.m. ø32 (diameter 32 mm), ø40 (diameter 40 mm): 60 c.p.m. | ||
| Lubrication | Non-lube | ||
| Action | Double acting / single acting | ||
| Auto switch (option)* | Solid state auto switch (3-wire, 2-wire) | ||
*See the manufacturer's catalog for details about auto switches.
*Use with a dust cover in dusty environments, etc.
Model
| Action | Model | Bore size (mm) | Gripping force *1 | Opening/closing stroke (both sides) mm | Weight*2 g | ||
|---|---|---|---|---|---|---|---|
| Gripping force per finger Effective value N | |||||||
| External | Internal | ||||||
| Double acting | MHZ2-6D | 6 | 3.3 | 6.1 | 4 | 27 | |
| MHZ2-10D(N) | 10 | 11 | 17 | 4 | 55 | ||
| MHZ2-16D(N) | 16 | 34 | 45 | 6 | 115 | ||
| MHZ2-20D(N) | 20 | 42 | 66 | 10 | 230 | ||
| MHZ2-25D(N) | 25 | 65 | 104 | 14 | 420 | ||
| MHZ2-32D | 32 | 158 | 193 | 22 | 715 | ||
| MHZ2-40D | 40 | 254 | 318 | 30 | 1,275 | ||
| Single acting | Normally open | MHZ2-6S | 6 | 1.9 | - | 4 | 27 |
| MHZ2-10S(N) | 10 | 7.1 | 4 | 55 | |||
| MHZ2-16S(N) | 16 | 27 | 6 | 115 | |||
| MHZ2-20S(N) | 20 | 33 | 10 | 235 | |||
| MHZ2-25S(N) | 25 | 45 | 14 | 425 | |||
| MHZ2-32S | 32 | 131 | 22 | 760 | |||
| MHZ2-40S | 40 | 217 | 30 | 1,370 | |||
| Normally closed | MHZ2-6C | 6 | - | 3.7 | 4 | 27 | |
| MHZ2-10C(N) | 10 | 13 | 4 | 55 | |||
| MHZ2-16C(N) | 16 | 38 | 6 | 115 | |||
| MHZ2-20C(N) | 20 | 57 | 10 | 235 | |||
| MHZ2-25C(N) | 25 | 83 | 14 | 425 | |||
| MHZ2-32C | 32 | 161 | 22 | 760 | |||
| MHZ2-40C | 40 | 267 | 30 | 1,370 | |||
*1 Values based on pressure of 0.5 MPa, gripping point L = 20 mm, at center of stroke.
*2 Values above do not include auto switch weight.

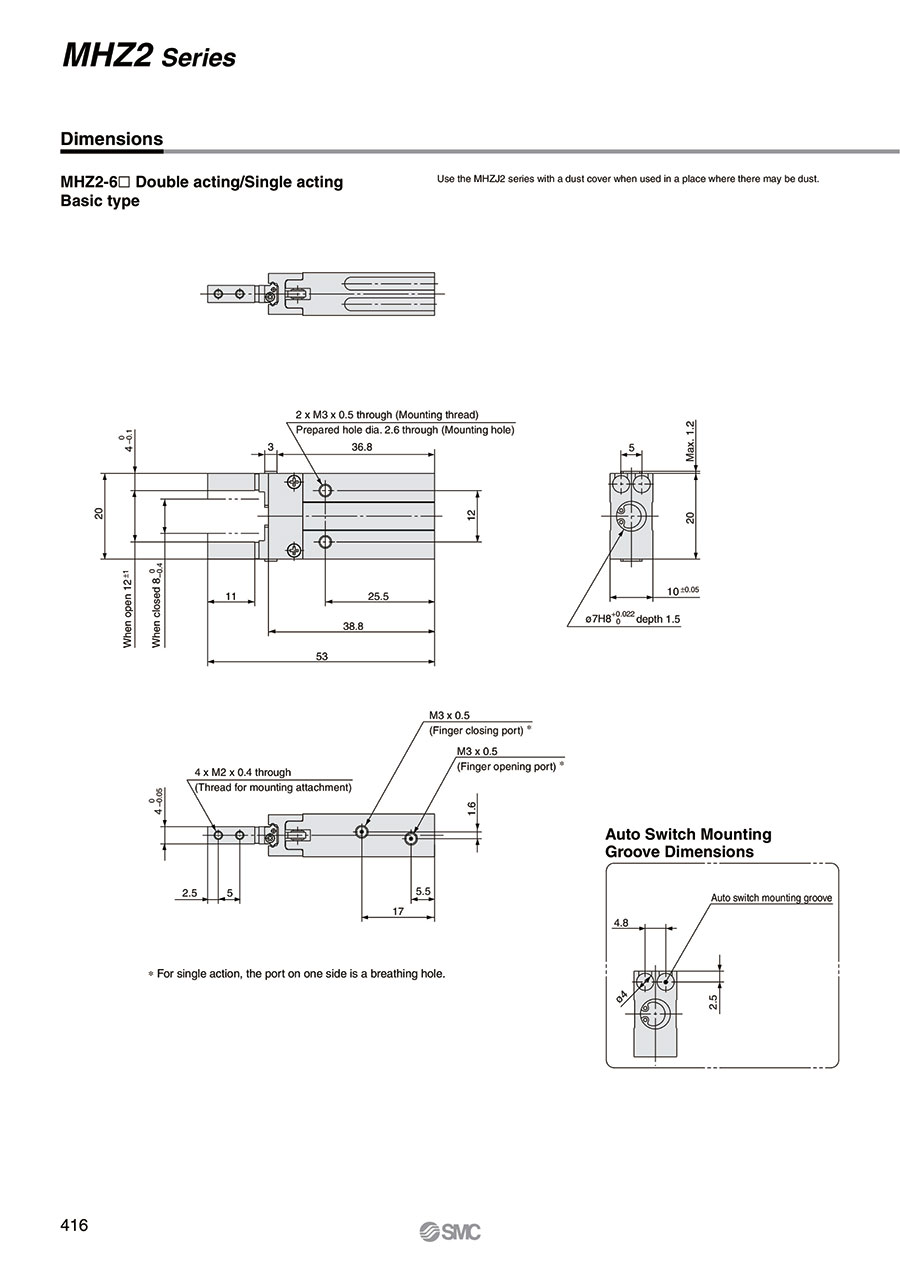

External dimensional drawing
(Unit: mm)
Auto switch mounting groove dimensional drawing
MHZ2-6□ / double acting / single acting basic type dimensional drawing
*In the case of single action, one side port is a breathing hole.
*Under dusty conditions, use the MHZJ2 Series with dust cover.
Precautions
- *Note the risk of corrosion on the linear guide.
- *The finger guide uses martensitic stainless steel, whose corrosion resistance is inferior to austenitic stainless steel. In particular, rust may occur in environments where water droplets adhere to the unit due to condensation.
- *See the manufacturer's catalog for product information other than the above.
- *Product images are representative images.
