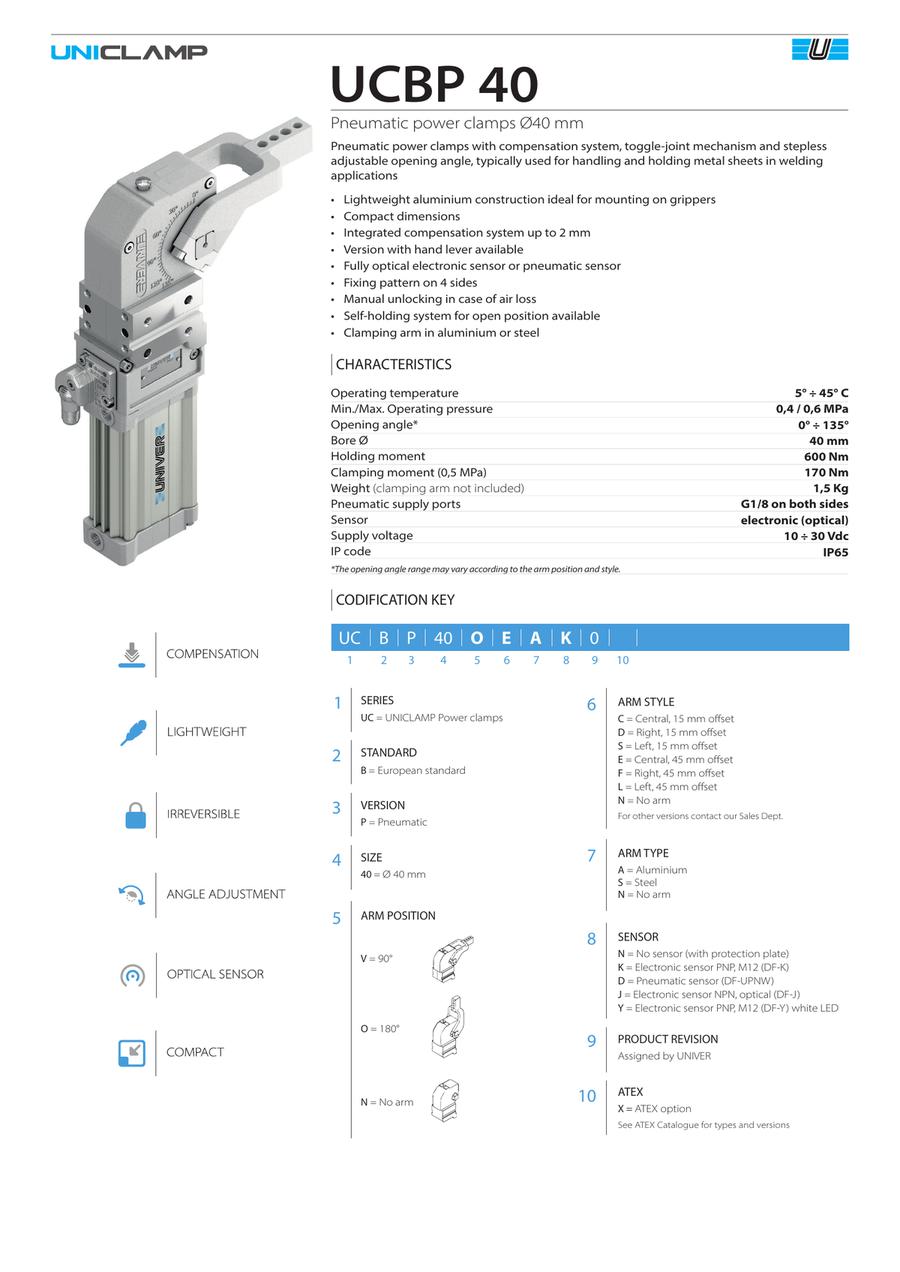

Pneumatic Power Clamp UNICLAMP

Pneumatic power clamps with compensation system, toggle-joint mechanism and stepless adjustable opening angle, typically used for handling and holding metal sheets in welding applications
• Lightweight aluminium construction ideal for mounting on grippers
• Compact dimensions
• Integrated compensation system up to 2 mm
• Version with hand lever available
• Fully optical electronic sensor or pneumatic sensor
• Fixing pattern on 4 sides
• Manual unlocking in case of air loss
• Self-holding system for open position available
• Clamping arm in aluminium or steel

Operating temperature	5° ÷ 45° C
Min./Max. Operating pressure	0.4 / 0.6 MPa
Opening angle*	0° ÷ 135°
Bore Ø	40 mm
Holding moment	600 Nm
Clamping moment (0.5 MPa)	170 Nm
Weight (clamping arm not included)	1.5 Kg
Pneumatic supply ports	G1/8 on both sides
Sensor	electronic (optical)
Supply voltage	10 ÷ 30 Vdc
IP code	IP65

*The opening angle range may vary according to the arm position and style.

U	C	B	P	5	0	O	E	A	K	0
1		2	3	4		5	6	7	8	9



1

Series

2

Standard

3

Version

4

Size

UC= UNICLAMP Power clamp fully adjustable opening angle: 0° to 135° Max The opening angle range may vary according to the arm position and style

B

= European standard

P = Pneumatic Ø 63 mm: Pneumatica □19

50 = Ø 50 mm 63 = Ø 63 mm

5

Arm position

6

Arm style

V = 90°

O = 180°

N = No arm

C

= Central, 15 mm Off set

D

= Right, 15 mm Off set

S

= Left, 15 mm Off set

E

= Central, 45 mm Off set

F

= Right, 45 mm Off set

L

= Left, 45 mm Off set

X*

= Central, oversized dowel holes Ø 8 H7, 15 mm Off set

Y*

= Right, oversized dowel holes Ø 8 H7, 15 mm Off set

Z*

= Left, oversized dowel holes Ø 8 H7, 15 mm Off set

T*

= Central, oversized dowel holes Ø 8 H7, 45 mm Off set

U*

= Right, oversized dowel holes Ø 8 H7, 45 mm Off set

V*

= Left, oversized dowel holes Ø 8 H7, 45 mm Off set

N

= No arm

* = Available upon request

7

Arm type

8

Sensor

9

Product revision

A = Aluminum S = Steel N = No arm

N

= No sensor (with protection plate)

Assigned by UNIVER

K

= Electronic sensor PNP (optical) (DF-K)

D

= Pneumatic sensor

J

= Electronic sensor NPN (optical) (DF-J)

Y

= Electronic sensor PNP (optical) (DF-Y)

white led
