Torque Limiter TT-03 Type (Wrapping Type)

Securely detect overloads
Precise operation to protect machinery from overloads

Instantaneous input and output disconnection upon overload to protect machinery. Because the interlocking type system is single-position,
removing the load automatically creates a connection with the same torque and at the same index position. Unlike a friction system,
accommodates even poor conditions.

Applications: Semiconductor manufacturing equipment, fiber equipment, printing equipment

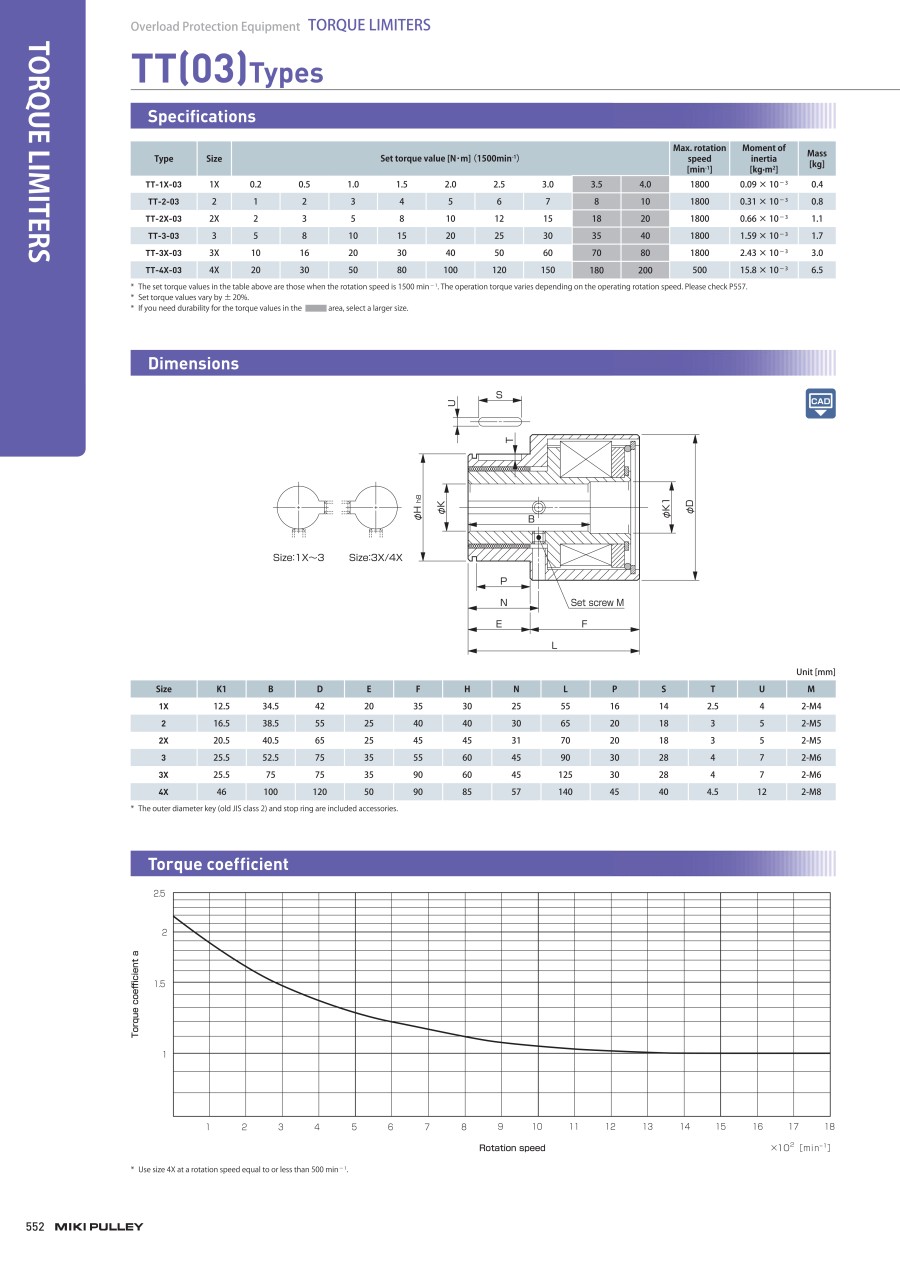

TT-□-03 Type
Wrapping type with a shaft inserted in the inner diameter (hub) of the torque tender and a pulley, sprocket, gear, etc. mounted in the outer diameter part of the housing
to protect the machinery from power transmission and overloads.
Shaft fixing is configured in the center of the main body to ensure full mounting even of shaft ends that cannot be configured, such as on through shafts.
