Air Slide Table ø6, ø8, ø12, ø16, ø20, ø25, MXQ Series Specifications

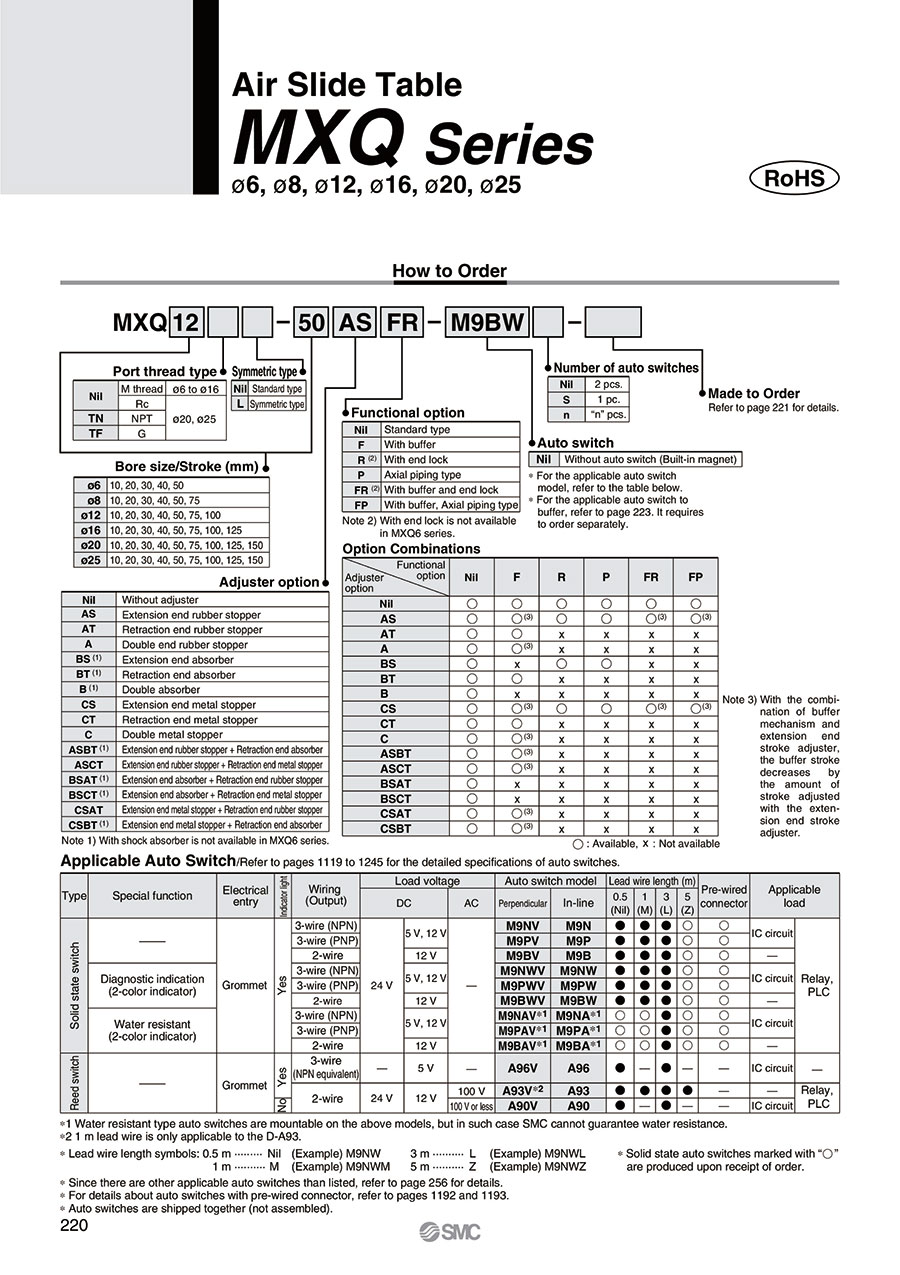

How to Order

Specifications

Bore size (mm)	6	20
Piping port size	M5 x 0.8	Rc 1/8, NPT 1/8, G 1/8
Fluid	Air
Action	Double acting
Operating pressure	0.15 to 0.7 MPa
Proof pressure	1.05 MPa
Ambient and fluid temperature	-10 to 60℃
Piston speed	50 to 500 mm/s (Adjuster option/Metal stopper: 50 to 200 mm/s)
Cushion	Rubber bumper (Standard, Adjuster option/Rubber stopper) Shock absorber (Adjuster option/Shock absorber) None (Adjuster option/Metal stopper)
Lubrication	Non-lube
Auto switch	Reed auto switch (2-wire, 3-wire) Solid state auto switch (2-wire, 3-wire) 2-color indication solid state auto switch (2-wire, 3-wire)
Stroke length tolerance	0 to +1 mm

Standard Stroke

Model	Standard stroke (mm)
MXQ 6	10, 20, 30, 40, 50
MXQ 8	10, 20, 30, 40, 50, 75
MXQ12	10, 20, 30, 40, 50, 75, 100
MXQ16	10, 20, 30, 40, 50, 75, 100, 125
MXQ20	10, 20, 30, 40, 50, 75, 100, 125, 150
MXQ25	10, 20, 30, 40, 50, 75, 100, 125, 150

Dimensions: MXQ6

Basic Style

(mm)

Model	F	N	G	H	NN	GA	HA	I	J	K	M	Z	ZZ
MXQ6-10	22	4	6	23	2	13	16	9	17	21.5	42	41.5	48
MXQ6-20	25	4	13	26	2	13	26	9	27	31.5	52	51.5	58
MXQ6-30	21	6	- ^Note)	- ^Note)	3	29	20	9	37	41.5	62	61.5	68
MXQ6-40	26	6	11	28	3	39	28	16	48	51.5	80	79.5	86
MXQ6-50	27	6	21	28	3	49	28	9	65	61.5	90	89.5	96

Note) Refer to the bottom view of MXQ6-30.

With buffer (ø6): MXQ6-□□F

Axial piping type (ø6): MXQ6-□□P

*Other dimensions are the same as basic style

Dimensions: MXQ6L/Symmetric Type

Basic style

(mm)

Model	F	N	G	H	NN	GA	HA	I	J	K	M	Z	ZZ
MXQ6L-10	22	4	6	23	2	13	16	9	17	21.5	42	41.5	48
MXQ6L-20	25	4	13	26	2	13	26	9	27	31.5	52	51.5	58
MXQ6L-30	21	6	-^Note)	-^Note)	3	29	20	9	37	41.5	62	61.5	68
MXQ6L-40	26	6	11	28	3	39	28	16	48	51.5	80	79.5	86
MXQ6L-50	27	6	21	28	3	49	28	9	65	61.5	90	89.5	96

Note) Refer to the bottom view of MXQ6L-30.

With buffer (ø6): MXQ6L-□□F

Axial piping type (ø6): MXQ6L-□□P

*Other dimensions are the same as basic style

Dimensions: MXQ8

Basic style

(mm)

Model	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXQ8-10	25	4	7	25	2	13	19	11	17	23.5	-	4	46	45.5	53
MXQ8-20	25	4	14	28	2	14	28	10	28	33.5	-	4	56	55.5	63
MXQ8-30	26	6	-^Note)	-^Note)	3	29	27	12	40	43.5	-	4	70	69.5	77
MXQ8-40	32	6	8	31	3	39	31	14	52	53.5	-	4	84	83.5	91
MXQ8-50	46	6	8	29	4	37	58	13	78	63.5	82.5	8	109	108.5	116
MXQ8-75	50	6	31	30	4	61	60	12	105	88.5	112.5	8	135	134.5	142

Note) Refer to the bottom view of MXQ8-30.

With shock absorber (ø8): MXQ8-□□BS/BT/B

Note) Note that the top of the shock absorber unit will be higher than that of the table

Stroke Adjustable Range
(mm)

Extension end	Retraction end
20	20

With buffer (ø8): MXQ8-□□F

With end lock (ø8): MXQ8-□□R

Axial piping type (ø8): MXQ8-□□P

*Other dimensions are the same as basic style

Dimensions: MXQ8L/Symmetric Type

Basic style

(mm)

Model	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXQ8L-10	25	4	7	25	2	13	19	11	17	23.5	-	4	46	45.5	53
MXQ8L-20	25	4	14	28	2	14	28	10	28	33.5	-	4	56	55.5	63
MXQ8L-30	26	6	-^Note)	-^Note)	3	29	27	12	40	43.5	-	4	70	69.5	77
MXQ8L-40	32	6	8	31	3	39	31	14	52	53.5	-	4	84	83.5	91
MXQ8L-50	46	6	8	29	4	37	58	13	78	63.5	82.5	8	109	108.5	116
MXQ8L-75	50	6	31	30	4	61	60	12	105	88.5	112.5	8	135	134.5	142

Note) Refer to the bottom view of MXQ8L-30.

With shock absorber (ø8): MXQ8L-□□BS/BT/B

Note) Note that the top of the shock absorber unit will be higher than that of the table

Stroke Adjustable Range
(mm)

Extension end	Retraction end
20	20

With buffer (ø8): MXQ8L-□□F

With end lock (ø8): MXQ8L-□□R

Axial piping type (ø8): MXQ8L-□□P

*Other dimensions are the same as basic style

Dimensions: MXQ12

Basic style

(mm)

Model	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXQ12- 10	28	4	18	32	2	18	32	12	34	26.5	-	4	67	66	76
MXQ12- 20	28	4	18	32	2	18	32	12	34	36.5	-	4	67	66	76
MXQ12- 30	38	4	20	40	2	20	40	14	42	46.5	-	4	77	76	86
MXQ12- 40	34	6	-^Note)	-^Note)	3	38	39	15	58	56.5	-	4	94	93	103
MXQ12- 50	34	6	9	39	3	48	39	13	70	66.5	-	4	104	103	113
MXQ12- 75	36	8	23	36	4	59	72	17	110	91.5	117.5	8	148	147	157
MXQ12-100	36	10	12	36	5	84	72	17	135	116.5	142.5	8	173	172	182

Note) Refer to the bottom view of MXQ12-40.

With shock absorber (ø12): MXQ12-□□BS/BT/B

Stroke Adjustable Range
(mm)

Extension end	Retraction end
18	18

With buffer (ø12): MXQ12-□□F

With end lock (ø12): MXQ12-□□R

Axial piping type (ø12): MXQ12-□□P

*Other dimensions are the same as basic style

Dimensions: MXQ12L/Symmetric Type

Basic style

(mm)

Model	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXQ12L- 10	28	4	18	32	2	18	32	12	34	26.5	-	4	67	66	76
MXQ12L- 20	28	4	18	32	2	18	32	12	34	36.5	-	4	67	66	76
MXQ12L- 30	38	4	20	40	2	20	40	14	42	46.5	-	4	77	76	86
MXQ12L- 40	34	6	-^Note)	-^Note)	3	38	39	15	58	56.5	-	4	94	93	103
MXQ12L- 50	34	6	9	39	3	48	39	13	70	66.5	-	4	104	103	113
MXQ12L- 75	36	8	23	36	4	59	72	17	110	91.5	117.5	8	148	147	157
MXQ12L-100	36	10	12	36	5	84	72	17	135	116.5	142.5	8	173	172	182

Note) Refer to the bottom view of MXQ12L-40.

With shock absorber (ø12): MXQ12L-□□BS/BT/B

Stroke Adjustable Range
(mm)

Extension end	Retraction end
18	18

With buffer (ø12): MXQ12L-□□F

With end lock (ø12): MXQ12L-□□R

Axial piping type (ø12): MXQ12L-□□P

*Other dimensions are the same as basic style

Dimensions: MXQ16

Basic style

(mm)

Model	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXQ16- 10	38	4	18	39	2	18	39	12	40	28	-	4	78	77	89
MXQ16- 20	38	4	18	39	2	18	39	12	40	38	-	4	78	77	89
MXQ16- 30	48	4	19	48	2	19	48	12	50	48	-	4	88	87	99
MXQ16- 40	58	4	19	58	2	19	58	12	60	58	-	4	98	97	109
MXQ16- 50	40	6	-^Note)	-^Note)	3	48	45	20	68	68	91	8	114	113	125
MXQ16- 75	46	6	21	52	3	73	52	15	105	93	123	8	146	145	157
MXQ16-100	44	8	36	44	4	80	88	18	145	118	166	8	189	188	200
MXQ16-125	44	10	17	44	5	105	88	23	165	143	191	8	214	213	225

Note) Refer to the bottom view of MXQ16-50.

With shock absorber (ø16): MXQ16-□□BS/BT/B

Stroke Adjustable Range
(mm)

Extension end	Retraction end
22	22

With buffer (ø16): MXQ16-□□F

With end lock (ø16): MXQ16-□□R

Axial piping type (ø16): MXQ16-□□P

*Other dimensions are the same as basic style

Dimensions: MXQ16L/Symmetric Type

Basic style

(mm)

Model	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXQ16L- 10	38	4	18	39	2	18	39	12	40	28	-	4	78	77	89
MXQ16L- 20	38	4	18	39	2	18	39	12	40	38	-	4	78	77	89
MXQ16L- 30	48	4	19	48	2	19	48	12	50	48	-	4	88	87	99
MXQ16L- 40	58	4	19	58	2	19	58	12	60	58	-	4	98	97	109
MXQ16L- 50	40	6	-^Note)	-^Note)	3	48	45	20	68	68	91	8	114	113	125
MXQ16L- 75	46	6	21	52	3	73	52	15	105	93	123	8	146	145	157
MXQ16L-100	44	8	36	44	4	80	88	18	145	118	166	8	189	188	200
MXQ16L-125	44	10	17	44	5	105	88	23	165	143	191	8	214	213	225

Note) Refer to the bottom view of MXQ16L-50.

With shock absorber (ø16): MXQ16L-□□BS/BT/B

Stroke Adjustable Range
(mm)

Extension end	Retraction end
22	22

With buffer (ø16): MXQ16L-□□F

With end lock (ø16): MXQ16L-□□R

Axial piping type (ø16): MXQ16L-□□P

*Other dimensions are the same as basic style

Dimensions: MXQ20

Basic Style

(mm)

Model	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXQ20- 10	45	4	22	46	2	18	50	16	46	31	-	4	94	92.5	108
MXQ20- 20	40	4	22	46	2	18	50	16	46	41	-	4	94	92.5	108
MXQ20- 30	48	4	22	46	2	18	50	16	46	51	-	4	94	92.5	108
MXQ20- 40	58	4	22	56	2	22	56	16	56	61	-	4	104	102.5	118
MXQ20- 50	42	6	-^Note)	-^Note)	3	48	48	18	72	71	-	4	122	120.5	136
MXQ20- 75	55	6	17	56	3	73	56	23	100	96	126	8	155	153.5	169
MXQ20-100	50	8	18	56	4	74	112	25	155	121	183	8	212	210.5	226
MXQ20-125	55	8	37	59	4	96	118	18	190	146	211	8	240	238.5	254
MXQ20-150	62	8	56	62	4	118	124	21	215	171	239	8	268	266.5	282

Note) Refer to the bottom view of MXQ20-50.

With shock absorber (ø20): MXQ20-□□BS/BT/B

Note) Note that the top of the shock absorber unit will be higher than that of the table

Stroke Adjustable Range
(mm)

Extension end	Retraction end
35	35

With buffer (ø20): MXQ20-□□F

With end lock (ø20): MXQ20-□□R

Axial piping type (ø20): MXQ20-□□P

*Other dimensions are the same as basic style

Dimensions: MXQ20L/Symmetric Type

Basic Style

(mm)

Model	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXQ20L- 10	45	4	22	46	2	18	50	16	46	31	-	4	94	92.5	108
MXQ20L- 20	40	4	22	46	2	18	50	16	46	41	-	4	94	92.5	108
MXQ20L- 30	48	4	22	46	2	18	50	16	46	51	-	4	94	92.5	108
MXQ20L- 40	58	4	22	56	2	22	56	16	56	61	-	4	104	102.5	118
MXQ20L- 50	42	6	-^Note)	-^Note)	3	48	48	18	72	71	-	4	122	120.5	136
MXQ20L- 75	55	6	17	56	3	73	56	23	100	96	126	8	155	153.5	169
MXQ20L-100	50	8	18	56	4	74	112	25	155	121	183	8	212	210.5	226
MXQ20L-125	55	8	37	59	4	96	118	18	190	146	211	8	240	238.5	254
MXQ20L-150	62	8	56	62	4	118	124	21	215	171	239	8	268	266.5	282

Note) Refer to the bottom view of MXQ20L-50.

With shock absorber (ø20): MXQ20L-□□BS/BT/B

Note) Note that the top of the shock absorber unit will be higher than that of the table

Stroke Adjustable Range
(mm)

Extension end	Retraction end
35	35

With buffer (ø20): MXQ20L-□□F

With end lock (ø20): MXQ20L-□□R

Axial piping type (ø20): MXQ20L-□□P

*Other dimensions are the same as basic style

Dimensions: MXQ25

Basic style

(mm)

Model	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXQ25- 10	55	4	23	55	2	23	55	16	56	35	-	4	107	105.5	123
MXQ25- 20	46	4	23	55	2	23	55	16	56	45	-	4	107	105.5	123
MXQ25- 30	55	4	23	55	2	23	55	16	56	55	-	4	107	105.5	123
MXQ25- 40	65	4	23	65	2	23	65	16	66	65	-	4	117	115.5	133
MXQ25- 50	75	4	32	80	2	32	80	16	90	75	-	4	141	139.5	157
MXQ25- 75	60	6	-^Note)	-^Note)	3	72	65	31	100	100	-	4	166	164.5	182
MXQ25-100	48	8	44	44	4	88	88	20	150	125	170	8	205	203.5	221
MXQ25-125	60	8	31	66	4	97	132	18	205	150	223	8	258	256.5	274
MXQ25-150	65	8	56	66	4	122	132	18	230	175	248	8	283	281.5	299

Note) Refer to the bottom view of MXQ25-75.

With shock absorber (ø25): MXQ25-□□BS/BT/B

Stroke Adjustable Range
(mm)

Extension end	Retraction end
35	35

With buffer (ø25): MXQ25-□□F

With end lock (ø25): MXQ25-□□R

Axial piping type (ø25): MXQ25-□□P

*Other dimensions are the same as basic style

Dimensions: MXQ25L/Symmetric Type

Basic style

(mm)

Model	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXQ25L- 10	55	4	23	55	2	23	55	16	56	35	-	4	107	105.5	123
MXQ25L- 20	46	4	23	55	2	23	55	16	56	45	-	4	107	105.5	123
MXQ25L- 30	55	4	23	55	2	23	55	16	56	55	-	4	107	105.5	123
MXQ25L- 40	65	4	23	65	2	23	65	16	66	65	-	4	117	115.5	133
MXQ25L- 50	75	4	32	80	2	32	80	16	90	75	-	4	141	139.5	157
MXQ25L- 75	60	6	-^Note)	-^Note)	3	72	65	31	100	100	-	4	166	164.5	182
MXQ25L-100	48	8	44	44	4	88	88	20	150	125	170	8	205	203.5	221
MXQ25L-125	60	8	31	66	4	97	132	18	205	150	223	8	258	256.5	274
MXQ25L-150	65	8	56	66	4	122	132	18	230	175	248	8	283	281.5	299

Note) Refer to the bottom view of MXQ25L-75.

With shock absorber (ø25): MXQ25L-□□BS/BT/B

Stroke Adjustable Range
(mm)

Extension end	Retraction end
35	35

With buffer (ø25): MXQ25L-□□F

With end lock (ø25): MXQ25L-□□R

Axial piping type (ø25): MXQ25L-□□P

*Other dimensions are the same as basic style

Part number list

Number of items

...

Part number

Stroke

(mm)

Maximum load weight (when horizontally mounted)

(kg)

Max. Load Mass

(kg)

Table Size Length L

(mm)

Cylinder Inner Diameter

(Ø)

Table Size Width W

(mm)

Table Size Height H

(mm)

Table Parallelism

(µm)

Type

Port Screw Type

Adjuster Option

Specifications

Lead Wire Length

(m)

Number of Switches

Custom-made Specifications

End Block

Model

Stroke Adjustment Unit Symbol

Custom-made

Minimum order quantity

10	-	0.6	-	6	-	-	-	Standard type	M screw	No adjuster	Standard	-	-	-	-	-	-	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	No adjuster	Standard	Magnet built-in	M9BV	3	None	2 pcs.	0.15 to 0.7	None	1 pieces
10	-	0.6	-	6	-	-	-	Standard type	M screw	Dual-end rubber stoppers	Standard	-	-	-	-	-	-	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Dual-end rubber stoppers	Standard	Magnet built-in	M9B	0.5	None	2 pcs.	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Dual-end rubber stoppers	Standard	Magnet built-in	M9B	0.5	M8-3 pin plug connector	2 pcs.	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Dual-end rubber stoppers	Standard	Magnet built-in	M9P	3	None	2 pcs.	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Dual-end rubber stoppers	Standard	Magnet built-in	M9P	0.5	M8-3 pin plug connector	2 pcs.	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Dual-end rubber stoppers	With buffer	Magnet built-in	None	-	None	-	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Dual-end rubber stoppers	With buffer	Magnet built-in	M9P	0.5	None	2 pcs.	0.15 to 0.7	None	1 pieces
10	-	0.6	-	6	-	-	-	Standard type	M screw	Forward-end rubber stopper	Standard	-	-	-	-	-	-	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Forward-end rubber stopper	Standard	Magnet built-in	M9B	0.5	None	2 pcs.	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Forward-end rubber stopper	Standard	Magnet built-in	M9NW	0.5	None	2 pcs.	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Forward-end rubber stopper	Standard	Magnet built-in	M9P	0.5	M8-3 pin plug connector	2 pcs.	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Forward-end rubber stopper	With buffer	Magnet built-in	M9B	0.5	None	2 pcs.	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Forward-end rubber stopper	Axial direction piping type	Magnet built-in	None	-	None	-	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Reverse-end rubber stopper	Standard	Magnet built-in	None	-	None	-	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Reverse-end rubber stopper	Standard	Magnet built-in	M9B	0.5	None	2 pcs.	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Reverse-end rubber stopper	With buffer	Magnet built-in	M9B	0.5	None	2 pcs.	0.15 to 0.7	None	1 pieces
10	-	0.6	42	6	27	20	-	Standard type	M screw	Dual-end metal stoppers	Standard	-	None	-	None	-	-	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Dual-end metal stoppers	Standard	Magnet built-in	A90	0.5	None	2 pcs.	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Dual-end metal stoppers	Standard	Magnet built-in	A93	3	None	2 pcs.	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Dual-end metal stoppers	Standard	Magnet built-in	M9B	0.5	None	1 pcs.	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Dual-end metal stoppers	Standard	Magnet built-in	M9NWV	3	None	2 pcs.	0.15 to 0.7	None	1 pieces
10	-	0.6	42	6	27	20	-	Standard type	M screw	Forward-end metal stopper	Standard	-	None	-	None	-	-	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Forward-end metal stopper	Standard	Magnet built-in	M9B	0.5	None	2 pcs.	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Forward-end metal stopper	Standard	Magnet built-in	M9B	3	None	2 pcs.	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Forward-end metal stopper	Standard	Magnet built-in	M9B	5	None	2 pcs.	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Forward-end metal stopper	Standard	Magnet built-in	M9NW	3	None	2 pcs.	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Forward-end metal stopper	Axial direction piping type	Magnet built-in	None	-	None	-	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	Retraction end metal stopper	Standard	Magnet built-in	None	-	None	-	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	No adjuster	With buffer	Magnet built-in	None	-	None	-	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	No adjuster	With buffer / axial piping type	Magnet built-in	None	-	None	-	0.15 to 0.7	None	1 pieces
10	0.05~0.8	0.6	42	6	27	20	25	Standard type	M screw	No adjuster	Axial direction piping type	Magnet built-in	None	-	None	-	0.15 to 0.7	None	1 pieces
20	-	0.6	-	6	-	-	-	Standard type	M screw	No adjuster	Standard	-	-	-	-	-	-	None	1 pieces
20	0.05~0.8	0.6	52	6	27	20	30	Standard type	M screw	No adjuster	Standard	Magnet built-in	M9B	0.5	None	2 pcs.	0.15 to 0.7	None	1 pieces
20	0.05~0.8	0.6	52	6	27	20	30	Standard type	M screw	No adjuster	Standard	Magnet built-in	M9B	3	None	2 pcs.	0.15 to 0.7	None	1 pieces
20	0.05~0.8	0.6	52	6	27	20	30	Standard type	M screw	No adjuster	Standard	Magnet built-in	M9N	3	None	2 pcs.	0.15 to 0.7	None	1 pieces
20	0.05~0.8	0.6	52	6	27	20	30	Standard type	M screw	No adjuster	Standard	Magnet built-in	M9N	0.5	M8-3 pin plug connector	2 pcs.	0.15 to 0.7	None	1 pieces
20	0.05~0.8	0.6	52	6	27	20	30	Standard type	M screw	Dual-end rubber stoppers	Standard	Magnet built-in	None	-	None	-	0.15 to 0.7	None	1 pieces
20	0.05~0.8	0.6	52	6	27	20	30	Standard type	M screw	Dual-end rubber stoppers	Standard	Magnet built-in	M9B	3	None	2 pcs.	0.15 to 0.7	None	1 pieces
20	0.05~0.8	0.6	52	6	27	20	30	Standard type	M screw	Dual-end rubber stoppers	Standard	Magnet built-in	M9P	0.5	None	2 pcs.	0.15 to 0.7	None	1 pieces
20	-	0.6	52	6	27	20	30	Standard type	M screw	Forward-end rubber stopper	Standard	-	None	-	None	-	-	None	1 pieces
20	0.05~0.8	0.6	52	6	27	20	30	Standard type	M screw	Forward-end rubber stopper	Standard	Magnet built-in	A93	0.5	None	2 pcs.	0.15 to 0.7	None	1 pieces
20	0.05~0.8	0.6	52	6	27	20	30	Standard type	M screw	Forward-end rubber stopper	Axial direction piping type	Magnet built-in	None	-	None	-	0.15 to 0.7	None	1 pieces
20	0.05~0.8	0.6	52	6	27	20	30	Standard type	M screw	Reverse-end rubber stopper	Standard	Magnet built-in	None	-	None	-	0.15 to 0.7	None	1 pieces
20	-	0.6	52	6	27	20	30	Standard type	M screw	Dual-end metal stoppers	Standard	-	None	-	None	-	-	None	1 pieces
20	0.05~0.8	0.6	52	6	27	20	30	Standard type	M screw	Dual-end metal stoppers	Standard	Magnet built-in	A93	3	None	2 pcs.	0.15 to 0.7	None	1 pieces
20	0.05~0.8	0.6	52	6	27	20	30	Standard type	M screw	Dual-end metal stoppers	Standard	Magnet built-in	M9BW	3	None	2 pcs.	0.15 to 0.7	None	1 pieces
20	0.05~0.8	0.6	52	6	27	20	30	Standard type	M screw	Dual-end metal stoppers	Standard	Magnet built-in	M9NWV	3	None	2 pcs.	0.15 to 0.7	None	1 pieces
20	-	0.6	52	6	27	20	30	Standard type	M screw	Forward-end metal stopper	Standard	-	None	-	None	-	-	None	1 pieces
20	0.05~0.8	0.6	52	6	27	20	30	Standard type	M screw	Forward-end metal stopper	Standard	Magnet built-in	M9B	3	None	2 pcs.	0.15 to 0.7	None	1 pieces
20	0.05~0.8	0.6	52	6	27	20	30	Standard type	M screw	Retraction end metal stopper	Standard	Magnet built-in	None	-	None	-	0.15 to 0.7	None	1 pieces
20	0.05~0.8	0.6	52	6	27	20	30	Standard type	M screw	No adjuster	With buffer	Magnet built-in	None	-	None	-	0.15 to 0.7	None	1 pieces
20	0.05~0.8	0.6	52	6	27	20	30	Standard type	M screw	No adjuster	With buffer / axial piping type	Magnet built-in	None	-	None	-	0.15 to 0.7	None	1 pieces
20	0.05~0.8	0.6	52	6	27	20	30	Standard type	M screw	No adjuster	Axial direction piping type	Magnet built-in	None	-	None	-	0.15 to 0.7	None	1 pieces
30	-	0.6	-	6	-	-	-	Standard type	M screw	No adjuster	Standard	-	-	-	-	-	-	None	1 pieces
30	0.05~0.8	0.6	62	6	27	20	35	Standard type	M screw	No adjuster	Standard	Magnet built-in	M9B	3	None	2 pcs.	0.15 to 0.7	None	1 pieces
30	0.05~0.8	0.6	62	6	27	20	35	Standard type	M screw	No adjuster	Standard	Magnet built-in	M9P	0.5	None	2 pcs.	0.15 to 0.7	None	1 pieces
30	0.05~0.8	0.6	62	6	27	20	35	Standard type	M screw	No adjuster	Standard	Magnet built-in	M9P	3	None	2 pcs.	0.15 to 0.7	None	1 pieces
30	0.05~0.8	0.6	62	6	27	20	35	Standard type	M screw	No adjuster	Standard	Magnet built-in	M9PV	0.5	None	2 pcs.	0.15 to 0.7	None	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

402.35 € ( 478.80 € )	4 working days
492.35 € ( 585.90 € )	26 working days
496.47 € ( 590.80 € )	4 working days
558.48 € ( 664.59 € )	26 working days
575.44 € ( 684.77 € )	26 working days
567.79 € ( 675.67 € )	26 working days
576.77 € ( 686.36 € )	26 working days
589.08 € ( 701.01 € )	26 working days
652.89 € ( 776.94 € )	26 working days
449.47 € ( 534.87 € )	4 working days
511.48 € ( 608.66 € )	26 working days
517.10 € ( 615.35 € )	26 working days
529.81 € ( 630.47 € )	26 working days
604.11 € ( 718.89 € )	26 working days
515.27 € ( 613.17 € )	26 working days
449.47 € ( 534.87 € )	26 working days
511.48 € ( 608.66 € )	26 working days
604.11 € ( 718.89 € )	26 working days
496.47 € ( 590.80 € )	19 working days
537.58 € ( 639.72 € )	26 working days
542.74 € ( 645.86 € )	26 working days
527.48 € ( 627.70 € )	26 working days
579.15 € ( 689.19 € )	26 working days
449.47 € ( 534.87 € )	19 working days
511.48 € ( 608.66 € )	26 working days
518.90 € ( 617.49 € )	26 working days
526.44 € ( 626.46 € )	26 working days
524.63 € ( 624.31 € )	26 working days
515.27 € ( 613.17 € )	26 working days
449.47 € ( 534.87 € )	26 working days
494.97 € ( 589.01 € )	26 working days
560.65 € ( 667.17 € )	26 working days
468.10 € ( 557.04 € )	26 working days
446.77 € ( 531.66 € )	7 working days
508.81 € ( 605.48 € )	26 working days
516.21 € ( 614.29 € )	26 working days
518.11 € ( 616.55 € )	26 working days
527.10 € ( 627.25 € )	26 working days
540.89 € ( 643.66 € )	19 working days
610.31 € ( 726.27 € )	26 working days
604.69 € ( 719.58 € )	26 working days
493.82 € ( 587.65 € )	19 working days
535.02 € ( 636.67 € )	26 working days
559.69 € ( 666.03 € )	26 working days
493.90 € ( 587.74 € )	26 working days
540.89 € ( 643.66 € )	19 working days
587.18 € ( 698.74 € )	26 working days
616.03 € ( 733.08 € )	26 working days
623.56 € ( 742.04 € )	26 working days
493.90 € ( 587.74 € )	19 working days
563.32 € ( 670.35 € )	26 working days
493.89 € ( 587.73 € )	26 working days
539.39 € ( 641.87 € )	26 working days
605.08 € ( 720.05 € )	26 working days
512.60 € ( 609.99 € )	26 working days
491.15 € ( 584.47 € )	4 working days
560.60 € ( 667.11 € )	26 working days
554.97 € ( 660.41 € )	26 working days
562.48 € ( 669.35 € )	26 working days
562.48 € ( 669.35 € )	26 working days

...

Basic information

Basic information

An air slide table made by SMC
[Features]
· Integrated guide rail and table.
· A circulation-type linear guide for high rigidity and precision.
· Air slide table for precision assembly.
· A symmetrical type is also available as standard.
· An auto switch attaching groove is provided in consideration of safety.
· Wide range of options.
· Improved load resistance.
· Improved mounting repeatability of workpieces and bodies.
· Reinforced end plate part.

Caution

Refer to the catalog for product specifications.
CAD data is not supported by some of the model numbers
Product images may be representative images. Refer to the catalog for details.

Catalog

Catalog (2-page spread)

Air Slide Table, MXQ Series

Caution

Product information

Air Slide Table ø6, ø8, ø12, ø16, ø20, ø25, MXQ Series Specifications

How to Order

Specifications

Standard Stroke

Dimensions: MXQ6

Dimensions: MXQ6L/Symmetric Type

Dimensions: MXQ8

Dimensions: MXQ8L/Symmetric Type

Dimensions: MXQ12

Dimensions: MXQ12L/Symmetric Type

Dimensions: MXQ16

Dimensions: MXQ16L/Symmetric Type

Dimensions: MXQ20

Dimensions: MXQ20L/Symmetric Type

Dimensions: MXQ25

Dimensions: MXQ25L/Symmetric Type

Part number list

More Information

Basic information

Caution

Catalog
