possible part numbers found.Model | MXJ4 | MXJ6 | MXJ8 |
---|---|---|---|
Bore size (mm) | 4.5 | 6 | 8 |
Piping port size | M3 x 0.5 | ||
Fluid | Air | ||
Action | Double acting | ||
Operating pressure | 0.15 to 0.7 MPa | ||
Proof pressure | 1.05 MPa | ||
Ambient and fluid temperature | -10 to 60℃ | ||
Operating speed range (Average operating speed) Note) | 50 to 500 mm/s (Metal stopper: 50 to 200 mm/s) | ||
Cushion | Rubber bumper (Metal stopper: Without cushion) | ||
Lubrication | Non-lube | ||
Stroke adjusting range (metal stopper) | Both ends each 0 to 5 mm | ||
Auto switch | Reed auto switch (2-wire, 3-wire) Solid state auto switch (2-wire, 3-wire) 2-color indicator solid state auto switch (2-wire, 3-wire) | ||
Stroke length tolerance | 0 to +1 mm |
Model | Standard stroke (mm) |
---|---|
MXJ4 | 5, 10 |
MXJ6 | 5, 10, 15 |
MXJ8 | 5, 10, 15, 20 |
No. | Description | Material | Note |
---|---|---|---|
1 | Body | Note) Martensitic stainless steel | Heat treated |
2 | Table | Note) Martensitic stainless steel | Heat treated |
3 | Rod | Stainless steel | |
4 | Piston | Brass | Electroless nickel plated |
5 | Rod cover | Resin | |
6 | Head cap | Resin | |
7 | Floating bushing A | Stainless steel | |
8 | Floating bushing B | Stainless steel | |
9 | Roller stopper A | Stainless steel | |
10 | Roller stopper B | Stainless steel | |
11 | Rod bumper | Polyurethane | |
12 | Plate | Stainless steel | |
13 | Plug | Steel + Fluorine | Zinc chromated |
14 | Piston seal | NBR | |
15 | Rod seal | NBR | |
16 | O-ring | NBR | |
17 | Steel balls | High carbon chrome bearing steel |
No. | Description | Material | Note |
---|---|---|---|
18 | Switch rail | Aluminum alloy | Hard anodized |
19 | Magnet | - | |
20 | Magnet holder | Stainless steel |
No. | Description | Material | Note |
---|---|---|---|
21 | End plate | Stainless steel | |
22 | Stopper pin | Steel | Heat treated, Trivalent chromated |
23 | Adjustment bolt | Steel | Heat treated Note) , Zinc chromated |
24 | Adjustment nut | Steel | Zinc chromated |
No. | Description | Material | Note |
---|---|---|---|
25 | Axial piping plate | Aluminum alloy | Hard anodized |
26 | Stud | Brass | Electroless nickel plated |
27 | Gasket | Stainless steel + NBR | |
28 | O-ring | NBR |
Model | G | GA | H | I | J | K | M | Z | ZZ |
---|---|---|---|---|---|---|---|---|---|
MXJ6-5 | 11 | 17 | 17 | 5 | 17 | 27.5 | 42.5 | 37 | 43 |
MXJ6-10 | 11 | 17 | 17 | 5 | 17 | 27.5 | 42.5 | 37 | 43 |
MXJ6-15 | 13 | 22 | 20 | 7 | 20 | 31.5 | 47.5 | 42 | 48 |
Model | G | GA | H | I | J | K | M | Z | ZZ |
---|---|---|---|---|---|---|---|---|---|
MXJ8-5 | 12 | 18 | 17 | 6 | 17 | 28.5 | 44.5 | 38 | 45 |
MXJ8-10 | 12 | 18 | 17 | 6 | 17 | 28.5 | 44.5 | 38 | 45 |
MXJ8-15 | 19 | 28 | 20 | 8 | 25 | 39.5 | 54.5 | 48 | 55 |
MXJ8-20 | 19 | 28 | 20 | 8 | 25 | 39.5 | 54.5 | 48 | 55 |
Part number |
---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
---|
252.23 € ( 300.15 € ) | 4 working days |
291.77 € ( 347.21 € ) | 26 working days |
361.18 € ( 429.80 € ) | 26 working days |
381.76 € ( 454.29 € ) | 26 working days |
306.61 € ( 364.87 € ) | 26 working days |
335.29 € ( 399.00 € ) | 26 working days |
397.32 € ( 472.81 € ) | 26 working days |
320.42 € ( 381.30 € ) | 26 working days |
269.97 € ( 321.26 € ) | 26 working days |
284.84 € ( 338.96 € ) | 26 working days |
313.50 € ( 373.06 € ) | 26 working days |
298.63 € ( 355.37 € ) | 26 working days |
273.97 € ( 326.02 € ) | 26 working days |
288.84 € ( 343.72 € ) | 26 working days |
317.50 € ( 377.82 € ) | 26 working days |
267.03 € ( 317.77 € ) | 26 working days |
295.69 € ( 351.87 € ) | 26 working days |
336.82 € ( 400.82 € ) | 26 working days |
359.52 € ( 427.83 € ) | 26 working days |
280.84 € ( 334.20 € ) | 26 working days |
252.23 € ( 300.15 € ) | 26 working days |
314.19 € ( 373.89 € ) | 26 working days |
323.50 € ( 384.96 € ) | 26 working days |
315.98 € ( 376.02 € ) | 26 working days |
291.77 € ( 347.21 € ) | 17 working days |
372.10 € ( 442.80 € ) | 26 working days |
381.76 € ( 454.29 € ) | 26 working days |
276.89 € ( 329.50 € ) | 26 working days |
335.29 € ( 399.00 € ) | 26 working days |
397.32 € ( 472.81 € ) | 26 working days |
320.42 € ( 381.30 € ) | 26 working days |
269.97 € ( 321.26 € ) | 26 working days |
284.84 € ( 338.96 € ) | 26 working days |
313.52 € ( 373.09 € ) | 26 working days |
377.32 € ( 449.01 € ) | 26 working days |
273.97 € ( 326.02 € ) | 26 working days |
259.10 € ( 308.33 € ) | 26 working days |
317.50 € ( 377.82 € ) | 26 working days |
267.03 € ( 317.77 € ) | 26 working days |
295.69 € ( 351.87 € ) | 26 working days |
372.68 € ( 443.49 € ) | 26 working days |
280.82 € ( 334.18 € ) | 26 working days |
252.18 € ( 300.09 € ) | 26 working days |
291.77 € ( 347.21 € ) | 26 working days |
335.29 € ( 399.00 € ) | 26 working days |
320.40 € ( 381.28 € ) | 26 working days |
269.97 € ( 321.26 € ) | 26 working days |
339.40 € ( 403.89 € ) | 26 working days |
273.97 € ( 326.02 € ) | 26 working days |
237.31 € ( 282.40 € ) | 26 working days |
295.69 € ( 351.87 € ) | 26 working days |
359.52 € ( 427.83 € ) | 26 working days |
252.18 € ( 300.09 € ) | 26 working days |
293.29 € ( 349.02 € ) | 26 working days |
285.98 € ( 340.32 € ) | 26 working days |
291.77 € ( 347.21 € ) | 26 working days |
335.29 € ( 399.00 € ) | 26 working days |
269.97 € ( 321.26 € ) | 26 working days |
273.97 € ( 326.02 € ) | 26 working days |
317.50 € ( 377.82 € ) | 26 working days |

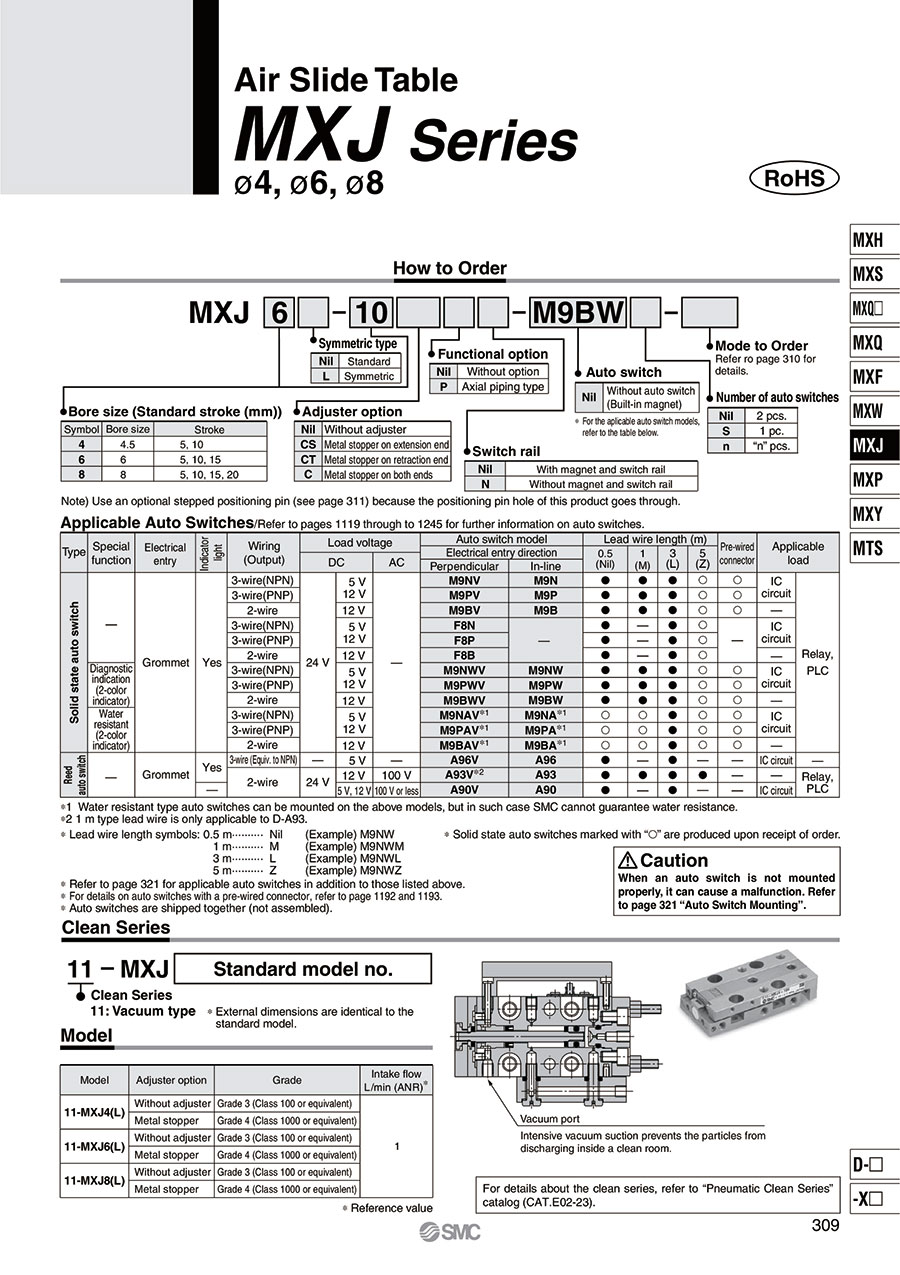

An air slide table made by SMC
[Features]
· By integrating the front surface mounting part and the table, the front surface and top surface mounting surfaces have been provided with higher precision and rigidity.
· Two rows of auto switches can be mounted.
· Axial direction piping.
· Bilaterally symmetrical shape.
