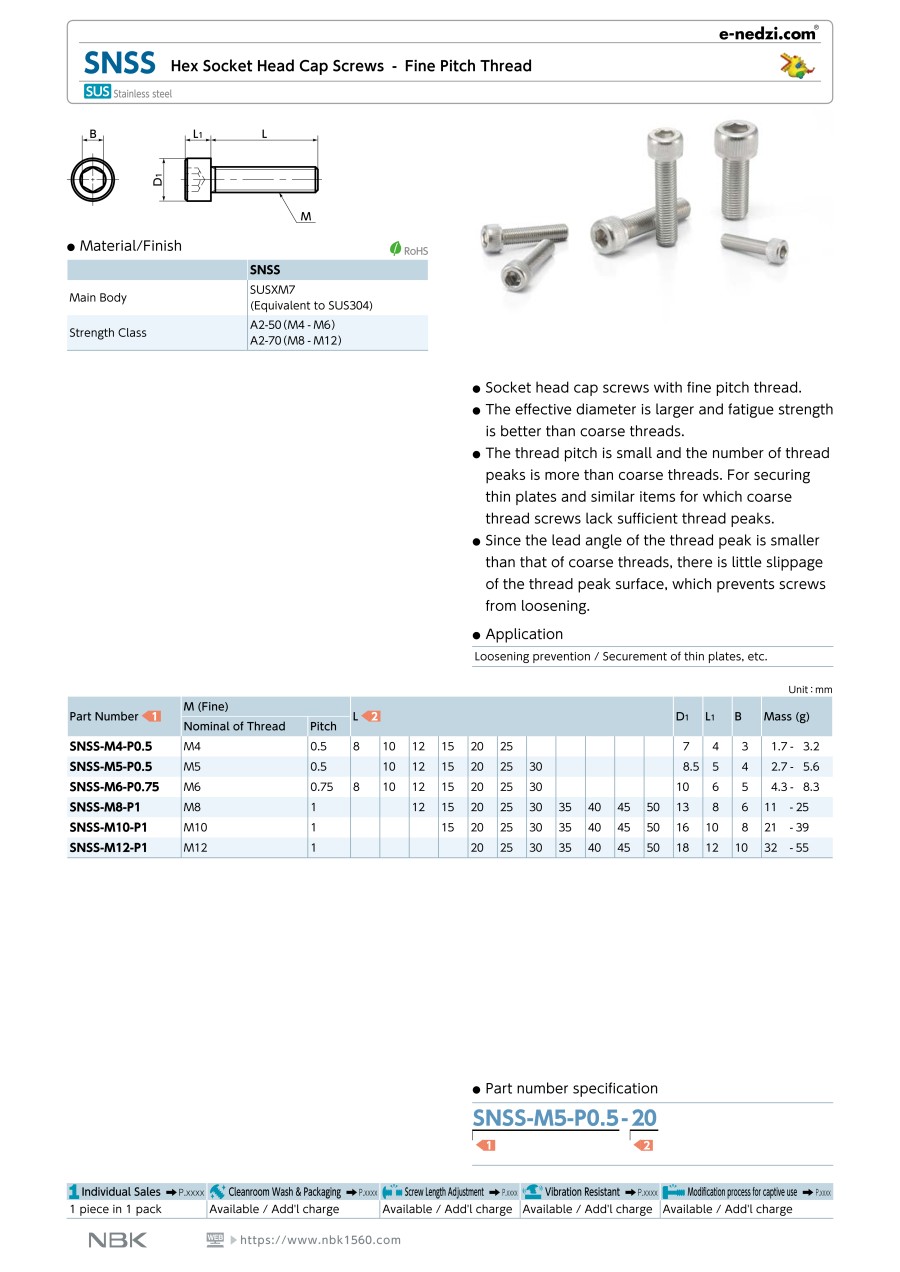

Hex Socket Head Cap Screws (Fine Thread) SNSS
- Volume Discount
Larger effective diameter than coarse threaded screws for improved fatigue strength.
With a finer pitch than regular bolts and a greater number of threads per inch.
Suitable for fixing thin plate materials, etc., for which coarse threads cannot provide enough support.
Since the lead angle of the thread is smaller than that of coarse threads, there is little slippage of the thread surface, which prevents screws from loosening.
(i)Remark
- The product shown in the image is a representative image only. See product standards for details.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Screw Nominal (M) | Length L (mm) | Pitch (mm) | Strength Class (Stainless Steel) | |
|---|---|---|---|---|---|---|---|---|
5.35 € | 1 | Available | 8 Days | 4 | 8 | 0.5 | A2-50 | |
5.35 € | 1 | Available | 8 Days | 4 | 10 | 0.5 | A2-50 | |
5.35 € | 1 | Available | 8 Days | 4 | 12 | 0.5 | A2-50 | |
4.87 € | 1 | Available | 8 Days | 4 | 15 | 0.5 | A2-50 | |
4.87 € | 1 | Available | 8 Days | 4 | 20 | 0.5 | A2-50 | |
5.35 € | 1 | Available | 8 Days | 4 | 25 | 0.5 | A2-50 | |
4.87 € | 1 | Available | 8 Days | 5 | 10 | 0.5 | A2-50 | |
4.50 € | 1 | Available | 8 Days | 5 | 12 | 0.5 | A2-50 | |
5.35 € | 1 | Available | 14 Days | 5 | 15 | 0.5 | A2-50 | |
5.33 € | 1 | Available | 6 Days | 5 | 20 | 0.5 | A2-50 | |
5.35 € | 1 | Available | 8 Days | 5 | 25 | 0.5 | A2-50 | |
5.90 € | 1 | Available | 8 Days | 5 | 30 | 0.5 | A2-50 | |
4.87 € | 1 | Available | 8 Days | 6 | 8 | 0.75 | A2-50 | |
5.35 € | 1 | Available | 8 Days | 6 | 10 | 0.75 | A2-50 | |
5.35 € | 1 | Available | 8 Days | 6 | 12 | 0.75 | A2-50 | |
5.35 € | 1 | Available | 8 Days | 6 | 15 | 0.75 | A2-50 | |
4.87 € | 1 | Available | 8 Days | 6 | 20 | 0.75 | A2-50 | |
4.90 € | 1 | Available | 8 Days | 6 | 25 | 0.75 | A2-50 | |
5.23 € | 1 | Available | 8 Days | 6 | 30 | 0.75 | A2-50 | |
5.48 € | 1 | Available | 8 Days | 8 | 12 | 1 | A2-70 | |
5.48 € | 1 | Available | 8 Days | 8 | 15 | 1 | A2-70 | |
5.48 € | 1 | Available | 8 Days | 8 | 20 | 1 | A2-70 | |
4.98 € | 1 | Available | 8 Days | 8 | 25 | 1 | A2-70 | |
5.90 € | 1 | Available | 8 Days | 8 | 30 | 1 | A2-70 | |
6.29 € | 1 | Available | 8 Days | 8 | 35 | 1 | A2-70 | |
6.55 € | 1 | Available | 8 Days | 8 | 40 | 1 | A2-70 | |
7.08 € | 1 | Available | 8 Days | 8 | 45 | 1 | A2-70 | |
7.97 € | 1 | Available | 8 Days | 8 | 50 | 1 | A2-70 | |
5.90 € | 1 | Available | 8 Days | 10 | 15 | 1 | A2-70 | |
5.37 € | 1 | Available | 8 Days | 10 | 20 | 1 | A2-70 | |
5.90 € | 1 | Available | 13 Days | 10 | 25 | 1 | A2-70 | |
5.57 € | 1 | Available | 8 Days | 10 | 30 | 1 | A2-70 | |
5.79 € | 1 | Available | 8 Days | 10 | 35 | 1 | A2-70 | |
6.68 € | 1 | Available | 8 Days | 10 | 40 | 1 | A2-70 | |
6.92 € | 1 | Available | 8 Days | 10 | 45 | 1 | A2-70 | |
7.75 € | 1 | Available | 8 Days | 10 | 50 | 1 | A2-70 | |
15.61 € | 1 | Available | 8 Days | 12 | 20 | 1 | A2-70 | |
16.32 € | 1 | Available | 6 Days | 12 | 25 | 1 | A2-70 | |
17.21 € | 1 | Available | 8 Days | 12 | 30 | 1 | A2-70 | |
17.76 € | 1 | Available | 6 Days | 12 | 35 | 1 | A2-70 | |
18.66 € | 1 | Available | 8 Days | 12 | 40 | 1 | A2-70 | |
19.55 € | 1 | Available | 8 Days | 12 | 45 | 1 | A2-70 | |
20.29 € | 1 | Available | 6 Days | 12 | 50 | 1 | A2-70 |
Loading...
Basic information
| Material | Stainless Steel | Surface Treatment | NA | Additional Shape | Standard |
|---|---|---|---|---|---|
| Thread Type | Metric Fine | Basic Shape | Standard (Round) | Sales Unit | Low Quantity (can be purchased from one) |
| Application | Standard | Screw Type | Full-Thread |
Configure
Basic Attributes
-
Screw Nominal (M)
-
Length L (mm)
-
Pitch(mm)
-
Strength Class (Stainless Steel)
-
Type
- SNSS
Filter by standard shipping days
-
- All
- 6 Days or Less
- 8 Days or Less
- 13 Days or Less
- 14 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
