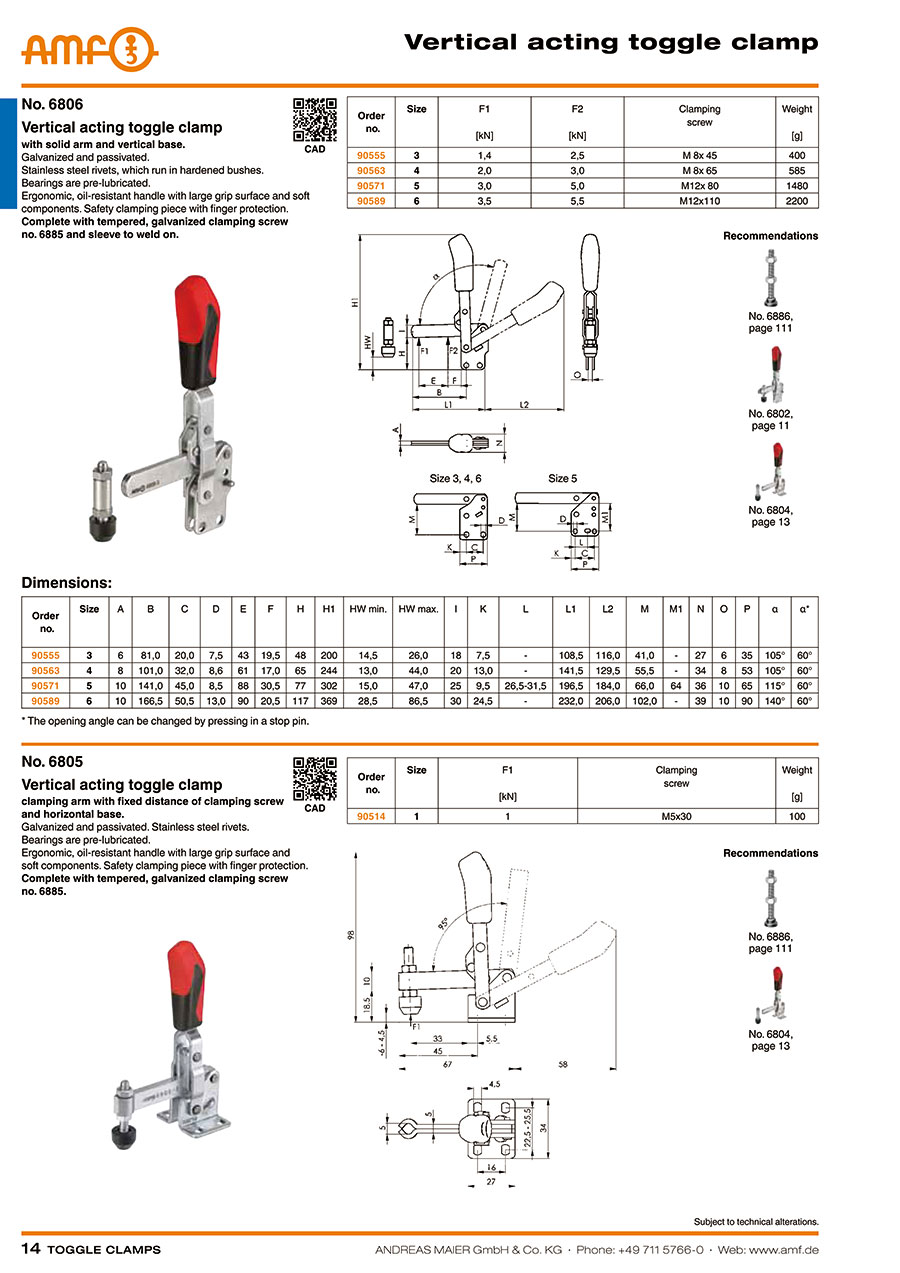

6805 Vertical acting toggle clamp
- Volume Discount
Vertical acting toggle clamp clamping arm with fixed distance of clamping screw and horizontal base.
Galvanized and passivated. Stainless steel rivets. Bearings are pre-lubricated.
Ergonomic, oil-resistant handle with large grip surface and soft components. Safety clamping piece with finger protection.
Complete with tempered, galvanized clamping screw no. 6885. The product is available per 1 peace.
Galvanized and passivated. Stainless steel rivets. Bearings are pre-lubricated.
Ergonomic, oil-resistant handle with large grip surface and soft components. Safety clamping piece with finger protection.
Complete with tempered, galvanized clamping screw no. 6885. The product is available per 1 peace.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
90514
Basic information
| Clamping screw | M5x30 | F1(kN) | 1 | Size | 1 |
|---|
This page is 6805 Vertical acting toggle clamp, part number 90514.
You can find the detail information about specifications and dimensions on part number 90514.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
