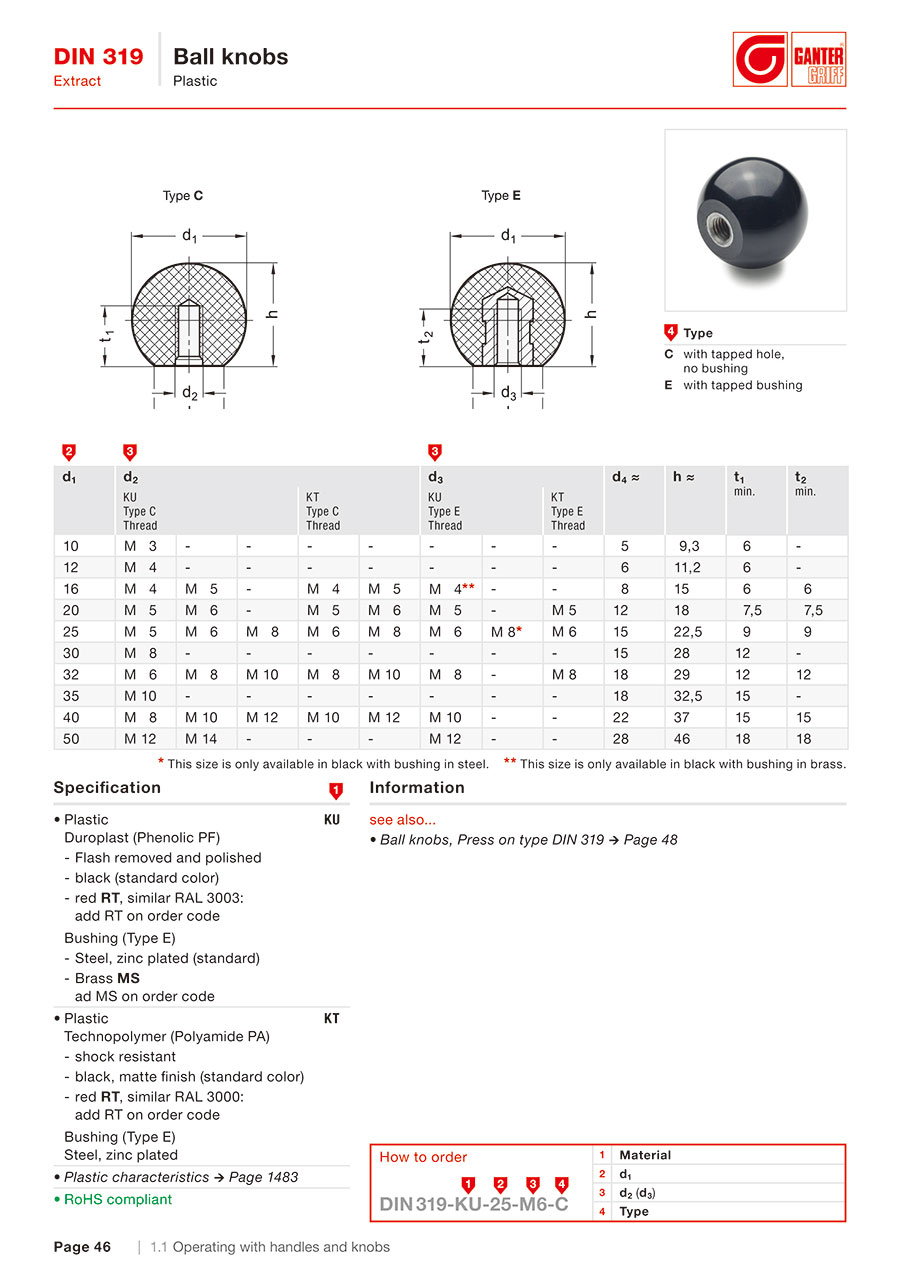

Ball knobs Plastic
- Promotional pricing ends 30/11/2024
- Volume Discount
・Type: C, with tapped hole (no bushing), C, with tapped hole (no insert), E, with threaded bushing
・Material: Plastic
・319 Series
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Handle Material | Handle Surface | Thread d2 | Ball / Handle diameter d1 (mm) | Length h (mm) | Type | d4 | t1 | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.52 € | 1 | Available | 7 Days | Polyamide | Sandblasting | M4 | 16 | 15 | C, with tapped hole (no insert) | - | - | - | |
0.60 € | 1 | Available | 7 Days | Polyamide | Sandblasting | M5 | 16 | 15 | C, with tapped hole (no insert) | - | - | - | |
0.58 € | 1 | Available | 7 Days | Polyamide | Sandblasting | M5 | 20 | 18 | C, with tapped hole (no insert) | - | - | - | |
0.92 € | 1 | Available | 7 Days | Polyamide | Sandblasting | M5 | 20 | 18 | E, with threaded bushing | - | - | - | |
0.62 € | 1 | Available | 7 Days | Polyamide | Sandblasting | M6 | 20 | 18 | C, with tapped hole (no insert) | - | - | - | |
0.70 € | 1 | Available | 7 Days | Polyamide | Sandblasting | M6 | 25 | 22.5 | C, with tapped hole (no insert) | - | - | - | |
1.02 € 0.71 € | 1 | Available |
Same day
Stock | Polyamide | Sandblasting | M6 | 25 | 22.5 | E, with threaded bushing | - | - | - | |
0.76 € | 1 | Available | 7 Days | Polyamide | Sandblasting | M8 | 25 | 22.5 | C, with tapped hole (no insert) | - | - | - | |
0.86 € | 1 | Available |
Same day
Stock | Polyamide | Sandblasting | M8 | 32 | 29 | C, with tapped hole (no insert) | - | - | - | |
1.48 € 1.04 € | 1 | Available |
Same day
Stock | Polyamide | Sandblasting | M8 | 32 | 29 | E, with threaded bushing | - | - | - | |
0.82 € | 1 | Available | 7 Days | Polyamide | Sandblasting | M10 | 32 | 29 | C, with tapped hole (no insert) | - | - | - | |
1.38 € | 1 | Available | 7 Days | Polyamide | Sandblasting | M10 | 40 | 37 | C, with tapped hole (no insert) | - | - | - | |
1.50 € 1.05 € | 1 | Available |
Same day
Stock | Polyamide | Sandblasting | M12 | 40 | 37 | C, with tapped hole (no insert) | - | - | - | |
0.68 € | 1 | Available | 7 Days | Phenol | Polishing | M3 | 10 | 9.3 | C, with tapped hole (no bushing) | 5 | 6 | 0.001 | |
0.68 € | 1 | Available | 7 Days | Phenol | Polishing | M4 | 12 | 11.2 | C, with tapped hole (no insert) | - | - | - | |
0.70 € | 1 | Available |
Same day
Stock | Phenol | Polishing | M4 | 16 | 15 | C, with tapped hole (no insert) | - | - | - | |
0.70 € | 1 | Available | 7 Days | Phenol | Polishing | M5 | 16 | 15 | C, with tapped hole (no insert) | - | - | - | |
0.70 € | 1 | Available | 7 Days | Phenol | Polishing | M5 | 20 | 18 | C, with tapped hole (no insert) | - | - | - | |
0.88 € | 1 | Available | 7 Days | Phenol | Polishing | M5 | 20 | 18 | E, with threaded bushing | - | - | - | |
0.72 € | 1 | Available | 7 Days | Phenol | Polishing | M6 | 20 | 18 | C, with tapped hole (no insert) | - | - | - | |
0.92 € | 1 | Available | 7 Days | Phenol | Polishing | M5 | 25 | 22.5 | C, with tapped hole (no insert) | - | - | - | |
0.86 € | 1 | Available | 7 Days | Phenol | Polishing | M6 | 25 | 22.5 | C, with tapped hole (no insert) | - | - | - | |
1.12 € 0.78 € | 1 | Available |
Same day
Stock | Phenol | Polishing | M6 | 25 | 22.5 | E, with threaded bushing | - | - | - | |
0.86 € | 1 | Available | 7 Days | Phenol | Polishing | M8 | 25 | 22.5 | C, with tapped hole (no insert) | - | - | - | |
1.50 € 1.05 € | 1 | Available |
Same day
Stock | Phenol | Polishing | M8 | 25 | 22.5 | E, with threaded bushing | - | - | - | |
1.08 € | 1 | Available | 7 Days | Phenol | Polishing | M8 | 30 | 28 | C, with tapped hole (no insert) | - | - | - | |
1.18 € | 1 | Available | 7 Days | Phenol | Polishing | M6 | 32 | 29 | C, with tapped hole (no insert) | - | - | - | |
1.16 € | 1 | Available | 7 Days | Phenol | Polishing | M8 | 32 | 29 | C, with tapped hole (no insert) | - | - | - | |
1.56 € 1.09 € | 1 | Available |
Same day
Stock | Phenol | Polishing | M8 | 32 | 29 | E, with threaded bushing | - | - | - | |
1.16 € 0.81 € | 1 | Available |
Same day
Stock | Phenol | Polishing | M10 | 32 | 29 | C, with tapped hole (no insert) | - | - | - | |
1.36 € | 1 | Available | 7 Days | Phenol | Polishing | M10 | 35 | 32.5 | C, with tapped hole (no insert) | - | - | - | |
1.58 € | 1 | Available | 7 Days | Phenol | Polishing | M8 | 40 | 37 | C, with tapped hole (no insert) | - | - | - | |
1.60 € | 1 | Available | 7 Days | Phenol | Polishing | M10 | 40 | 37 | C, with tapped hole (no insert) | - | - | - | |
2.52 € | 1 | Available | 7 Days | Phenol | Polishing | M10 | 40 | 37 | E, with threaded bushing | - | - | - | |
1.60 € | 1 | Available | 7 Days | Phenol | Polishing | M12 | 40 | 37 | C, with tapped hole (no insert) | - | - | - | |
2.72 € | 1 | Available | 7 Days | Phenol | Polishing | M12 | 50 | 46 | C, with tapped hole (no insert) | - | - | - | |
4.18 € | 1 | Available | 7 Days | Phenol | Polishing | M12 | 50 | 46 | E, with threaded bushing | - | - | - |
Loading...
Basic information
| Type | Fixed Type | Shape | Ball Shape | Mounting Section Material | Steel |
|---|---|---|---|---|---|
| Mounting Section Surface Treatment | Zinc Plating | Mounting Method | Tapped |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Handle Material
- Phenol
- Polyamide
-
Handle Surface
- Sandblasting
- Polishing
-
Thread d2
- M3
- M4
- M5
- M6
- M8
- M10
- M12
-
Ball / Handle diameter d1(mm)
-
Length h(mm)
-
Type
-
d4
-
t1
- 6
-
Type
- 319
Filter by standard shipping days
-
- All
- Same day
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
