Cam action indexing plunger, Plunger pin retracted

Cam action indexing plunger, Plunger pin retracted

Part number:

Still undefined. 12 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    712.1-6-M16X1,5-A
    712.1-6-M16X1,5-AK
    712.1-6-M16X1,5-R
    712.1-6-M16X1,5-RK
    712.1-6-M16X1,5-S
    712.1-6-M16X1,5-SK
    Order suspended
    712.1-8-M16X1,5-A
    712.1-8-M16X1,5-AK
    712.1-8-M16X1,5-R
    712.1-8-M16X1,5-RK
    712.1-8-M16X1,5-S
    712.1-8-M16X1,5-SK

    Bolt diameter d1

    (Ø)

    Type

    		Minimum order quantity
    6
    A, without rest position, without locknut
    1 pieces
    6
    AK, without rest position, with locknut
    1 pieces
    6
    R, with rest position, without lock nut
    1 pieces
    6
    RK, with rest position, with lock nut
    1 pieces
    6
    S, with safety-rest position, without lock nut
    1 pieces
    6
    SK, with safety-rest position, with lock nut
    1 pieces
    8
    A, without rest position, without locknut
    1 pieces
    8
    AK, without rest position, with locknut
    1 pieces
    8
    R, with rest position, without lock nut
    1 pieces
    8
    RK, with rest position, with lock nut
    1 pieces
    8
    S, with safety-rest position, without lock nut
    1 pieces
    8
    SK, with safety-rest position, with lock nut
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    30.42 €
    ( 36.20 € )
    7 working days
    31.06 €
    ( 36.96 € )
    7 working days
    30.38 €
    ( 36.15 € )
    7 working days
    31.00 €
    ( 36.89 € )
    7 working days
    30.38 €
    ( 36.15 € )
    7 working days
    31.00 €
    ( 36.89 € )
    7 working days
    25.68 €
    ( 30.56 € )
    7 working days
    26.30 €
    ( 31.30 € )
    7 working days
    25.62 €
    ( 30.49 € )
    7 working days
    26.26 €
    ( 31.25 € )
    7 working days
    25.62 €
    ( 30.49 € )
    7 working days
    26.26 €
    ( 31.25 € )
    7 working days
  • 1

    • More Information

    Basic information

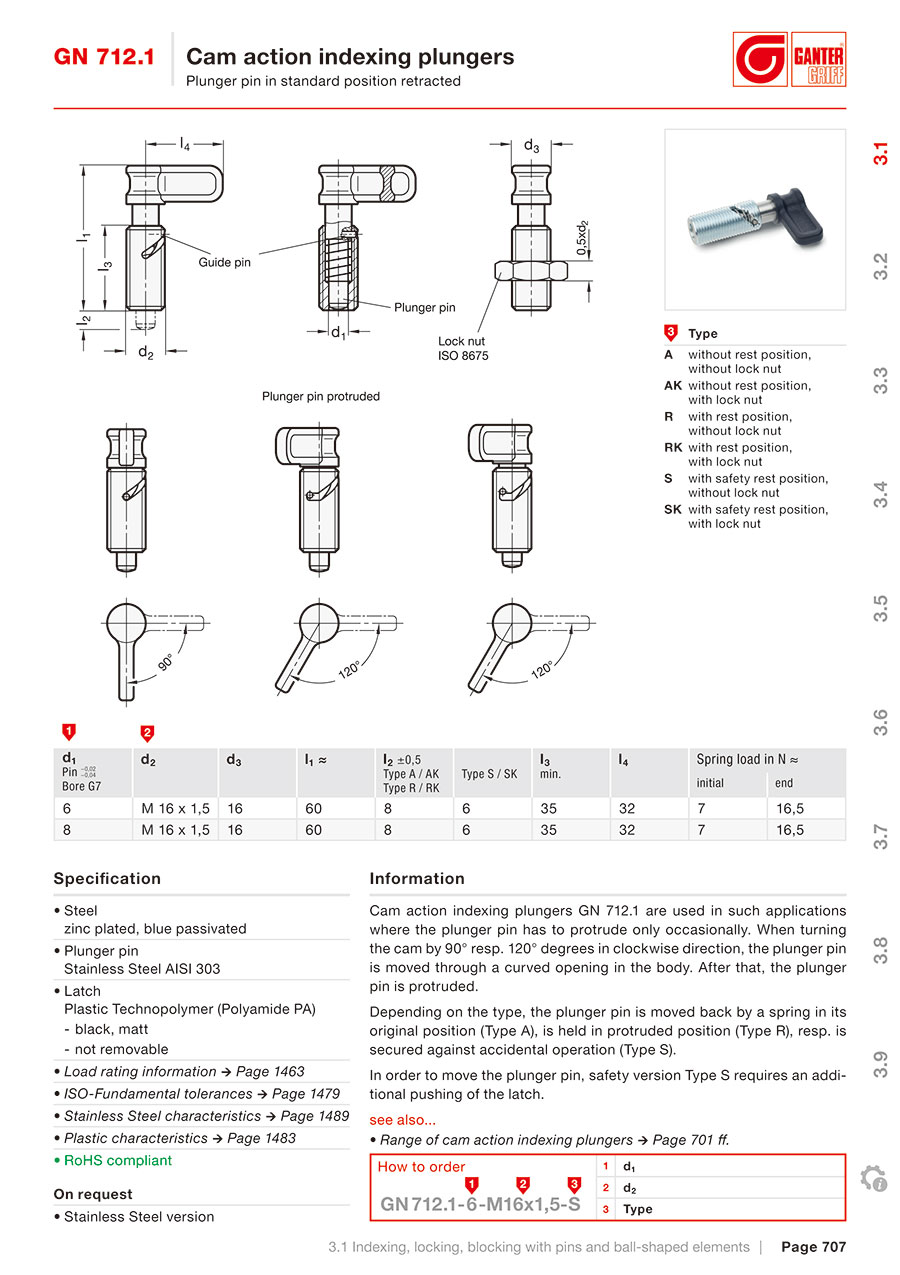

    Cam action indexing plungers GN 712.1 are used in such applications where the plunger pin has to protrude only occasionally. When turning the cam by 90° resp. 120° degrees in clockwise direction, the plunger pin is moved through a curved opening in the body. After that, the plunger pin is protruded.
    Depending on the type, the plunger pin is moved back by a spring in its original position (Type A), is held in protruded position (Type R), resp. is secured against accidental operation (Type S). In order to move the plunger pin, safety version Type S requires an additional pushing of the latch.
