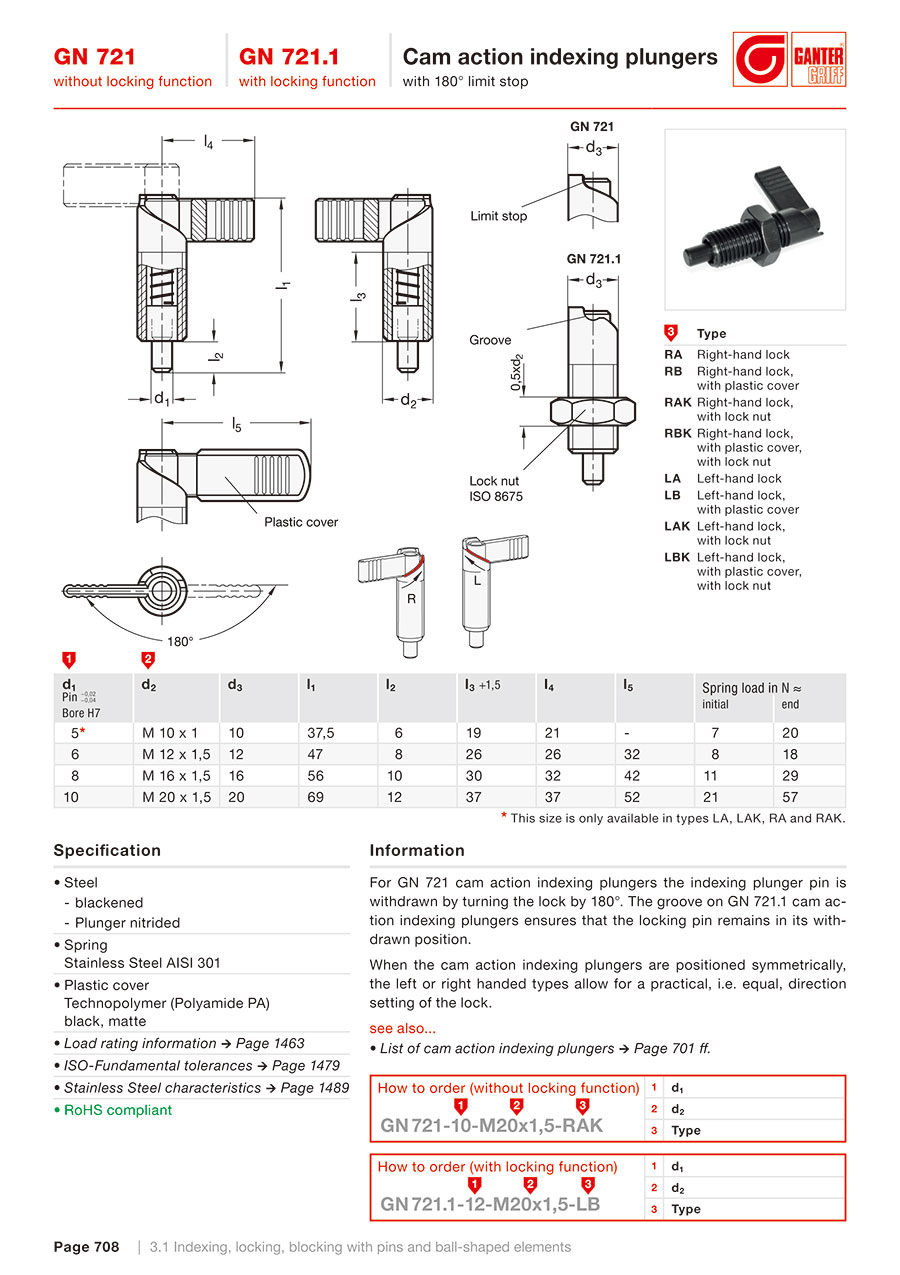

Cam action indexing plungers, Steel, without locking function
- Volume Discount
When the cam action indexing plungers are positioned symmetrically, the left or right handed types allow for a practical, i.e. equal, direction setting of the lock.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Bolt diameter d1 (Ø) | Collet thread d2 | Type | |
|---|---|---|---|---|---|---|---|
18.30 € | 1 | Available | 7 Days | 5 | M 10 x 1 | LA, Left-hand lock | |
18.62 € | 1 | Available | 7 Days | 5 | M 10 x 1 | LAK, Left-hand lock, with lock nut | |
18.30 € | 1 | Available | 7 Days | 5 | M 10 x 1 | RA, Right-hand lock | |
18.62 € | 1 | Available | 7 Days | 5 | M 10 x 1 | RAK, Right-hand lock, with lock nut | |
19.46 € | 1 | Available | 7 Days | 6 | M 12 x 1,5 | LA, Left-hand lock | |
19.80 € | 1 | Available | 7 Days | 6 | M 12 x 1,5 | LAK, Left-hand lock, with lock nut | |
20.62 € | 1 | Available | 7 Days | 6 | M 12 x 1,5 | LB, Left-hand lock, with plastic cover | |
20.98 € | 1 | Available | 7 Days | 6 | M 12 x 1,5 | LBK, Left-hand lock, with plastic cover, with lock nut | |
19.46 € | 1 | Available | 7 Days | 6 | M 12 x 1,5 | RA, Right-hand lock | |
19.80 € | 1 | Available | 7 Days | 6 | M 12 x 1,5 | RAK, Right-hand lock, with lock nut | |
20.62 € | 1 | Available | 7 Days | 6 | M 12 x 1,5 | RB, Right-hand lock, with plastic cover | |
20.98 € | 1 | Available | 7 Days | 6 | M 12 x 1,5 | RBK, Right-hand lock, with plastic cover, with lock nut | |
21.52 € | 1 | Available | 7 Days | 8 | M 16 x 1,5 | LA, Left-hand lock | |
22.16 € | 1 | Available | 7 Days | 8 | M 16 x 1,5 | LAK, Left-hand lock, with lock nut | |
22.40 € | 1 | Available | 7 Days | 8 | M 16 x 1,5 | LB, Left-hand lock, with plastic cover | |
23.02 € | 1 | Available | 7 Days | 8 | M 16 x 1,5 | LBK, Left-hand lock, with plastic cover, with lock nut | |
21.52 € | 1 | Available | 7 Days | 8 | M 16 x 1,5 | RA, Right-hand lock | |
22.16 € | 1 | Available | 7 Days | 8 | M 16 x 1,5 | RAK, Right-hand lock, with lock nut | |
22.40 € | 1 | Available | 7 Days | 8 | M 16 x 1,5 | RB, Right-hand lock, with plastic cover | |
23.02 € | 1 | Available | 7 Days | 8 | M 16 x 1,5 | RBK, Right-hand lock, with plastic cover, with lock nut | |
24.52 € | 1 | Available | 7 Days | 10 | M 20 x 1,5 | LA, Left-hand lock | |
25.72 € | 1 | Available | 7 Days | 10 | M 20 x 1,5 | LAK, Left-hand lock, with lock nut | |
25.60 € | 1 | Available | 7 Days | 10 | M 20 x 1,5 | LB, Left-hand lock, with plastic cover | |
26.80 € | 1 | Available | 7 Days | 10 | M 20 x 1,5 | LBK, Left-hand lock, with plastic cover, with lock nut | |
24.52 € | 1 | Available | 7 Days | 10 | M 20 x 1,5 | RA, Right-hand lock | |
25.72 € | 1 | Available | 7 Days | 10 | M 20 x 1,5 | RAK, Right-hand lock, with lock nut | |
25.60 € | 1 | Available | 7 Days | 10 | M 20 x 1,5 | RB, Right-hand lock, with plastic cover | |
26.80 € | 1 | Available | 7 Days | 10 | M 20 x 1,5 | RBK, Right-hand lock, with plastic cover, with lock nut |
Loading...
Configure
Basic Attributes
-
Bolt diameter d1(Ø)
-
Collet thread d2
-
Type
- LA, Left-hand lock
- LAK, Left-hand lock, with lock nut
- LB, Left-hand lock, with plastic cover
- LBK, Left-hand lock, with plastic cover, with lock nut
- RA, Right-hand lock
- RAK, Right-hand lock, with lock nut
- RB, Right-hand lock, with plastic cover
- RBK, Right-hand lock, with plastic cover, with lock nut
-
Type
- 721
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
